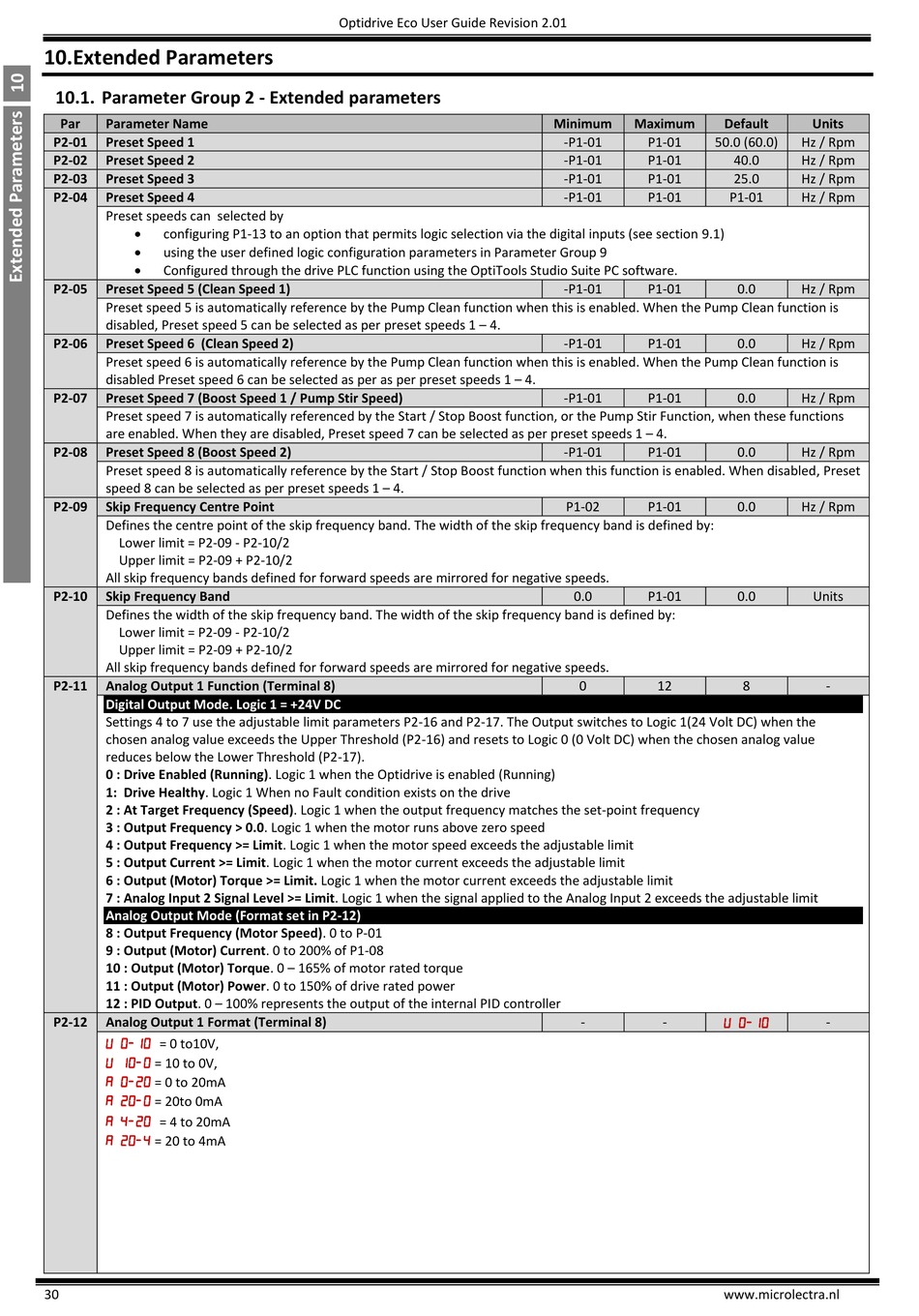

10.Extended Parameters

10.1. Parameter Group 2 - Extended parameters

Par Parameter Name
P2-01 Preset Speed 1
P2-02 Preset Speed 2
P2-03 Preset Speed 3
P2-04 Preset Speed 4
Preset speeds can selected by

configuring P1-13 to an option that permits logic selection via the digital inputs (see section 9.1)

using the user defined logic configuration parameters in Parameter Group 9

Configured through the drive PLC function using the OptiTools Studio Suite PC software.
P2-05 Preset Speed 5 (Clean Speed 1)
Preset speed 5 is automatically reference by the Pump Clean function when this is enabled. When the Pump Clean function is
disabled, Preset speed 5 can be selected as per preset speeds 1 – 4.
P2-06 Preset Speed 6 (Clean Speed 2)
Preset speed 6 is automatically reference by the Pump Clean function when this is enabled. When the Pump Clean function is
disabled Preset speed 6 can be selected as per as per preset speeds 1 – 4.
P2-07 Preset Speed 7 (Boost Speed 1 / Pump Stir Speed)
Preset speed 7 is automatically referenced by the Start / Stop Boost function, or the Pump Stir Function, when these functions
are enabled. When they are disabled, Preset speed 7 can be selected as per preset speeds 1 – 4.
P2-08 Preset Speed 8 (Boost Speed 2)
Preset speed 8 is automatically reference by the Start / Stop Boost function when this function is enabled. When disabled, Preset
speed 8 can be selected as per preset speeds 1 – 4.
P2-09 Skip Frequency Centre Point
Defines the centre point of the skip frequency band. The width of the skip frequency band is defined by:
Lower limit = P2-09 - P2-10/2
Upper limit = P2-09 + P2-10/2
All skip frequency bands defined for forward speeds are mirrored for negative speeds.
P2-10 Skip Frequency Band
Defines the width of the skip frequency band. The width of the skip frequency band is defined by:
Lower limit = P2-09 - P2-10/2
Upper limit = P2-09 + P2-10/2
All skip frequency bands defined for forward speeds are mirrored for negative speeds.
P2-11 Analog Output 1 Function (Terminal 8)
Digital Output Mode. Logic 1 = +24V DC
Settings 4 to 7 use the adjustable limit parameters P2-16 and P2-17. The Output switches to Logic 1(24 Volt DC) when the
chosen analog value exceeds the Upper Threshold (P2-16) and resets to Logic 0 (0 Volt DC) when the chosen analog value
reduces below the Lower Threshold (P2-17).
0 : Drive Enabled (Running). Logic 1 when the Optidrive is enabled (Running)
1: Drive Healthy. Logic 1 When no Fault condition exists on the drive
2 : At Target Frequency (Speed). Logic 1 when the output frequency matches the set-point frequency
3 : Output Frequency > 0.0. Logic 1 when the motor runs above zero speed
4 : Output Frequency >= Limit. Logic 1 when the motor speed exceeds the adjustable limit
5 : Output Current >= Limit. Logic 1 when the motor current exceeds the adjustable limit
6 : Output (Motor) Torque >= Limit. Logic 1 when the motor current exceeds the adjustable limit
7 : Analog Input 2 Signal Level >= Limit. Logic 1 when the signal applied to the Analog Input 2 exceeds the adjustable limit
Analog Output Mode (Format set in P2-12)
8 : Output Frequency (Motor Speed). 0 to P-01
9 : Output (Motor) Current. 0 to 200% of P1-08
10 : Output (Motor) Torque. 0 – 165% of motor rated torque
11 : Output (Motor) Power. 0 to 150% of drive rated power
12 : PID Output. 0 – 100% represents the output of the internal PID controller
P2-12 Analog Output 1 Format (Terminal 8)
    
= 0 to10V,
    
= 10 to 0V,
    
= 0 to 20mA
    
= 20to 0mA
    
= 4 to 20mA
    
= 20 to 4mA
30
Optidrive Eco User Guide Revision 2.01
Minimum Maximum Default
-P1-01 P1-01 50.0 (60.0)
-P1-01 P1-01
-P1-01 P1-01
-P1-01 P1-01
-P1-01 P1-01
-P1-01 P1-01
-P1-01 P1-01
-P1-01 P1-01
P1-02 P1-01
0.0 P1-01
0 12
    
- -
www.microlectra.nl
Units
Hz / Rpm
40.0 Hz / Rpm
25.0 Hz / Rpm
P1-01 Hz / Rpm
0.0 Hz / Rpm
0.0 Hz / Rpm
0.0 Hz / Rpm
0.0 Hz / Rpm
0.0 Hz / Rpm
0.0 Units
8 -
-
