PARTS NEEDED

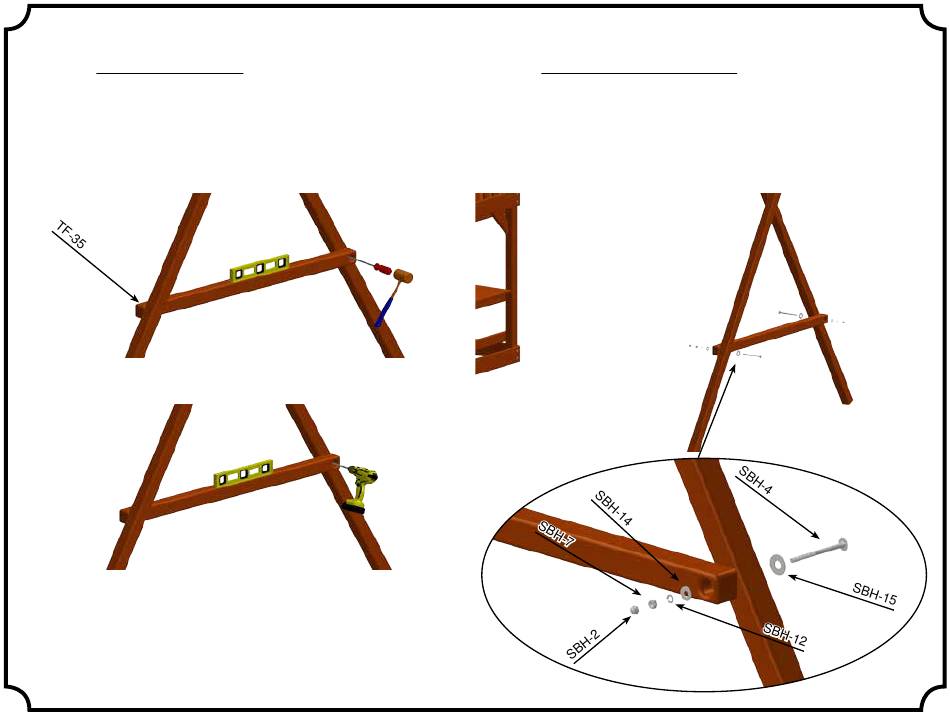

TF-35- A-Frame Crossmember-
Place Crossmember across A-Frame Legs while keeping level and mark the
Drill a 9/16" hole through the A-FRAME LEGS where your marks are.
Then using the Carrige Bolt Assemble both together.
Toucan Fort- Swingbeam Assembly
(1)
SBH-4- 1/2" x 6 1/2" Carriage Bolt-
SBH-14- 1/2" USS Flatwasher-
SBH-7- 1/2" Hex Nut-
hole placement.
HARDWARE NEEDED
(2)
SBH-15- 3/4" USS Flatwasher-
(2)
SBH-12- 1/2" Split Lockwasher-
(2)
SBH-2- 1/2" Acorn Nut Plated-
(2)
(2)
(2)
