TOUCAN FORT- SWINGBEAM HARDWARE BAG
INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE
SBH-1
40-1-00001
3/8" Acorn Nut Plated
QTY. 14
MEASUREMENT TAKEN FROM BOTTOM OF BOLT HEAD TO THE BOTTOM OF BOLT

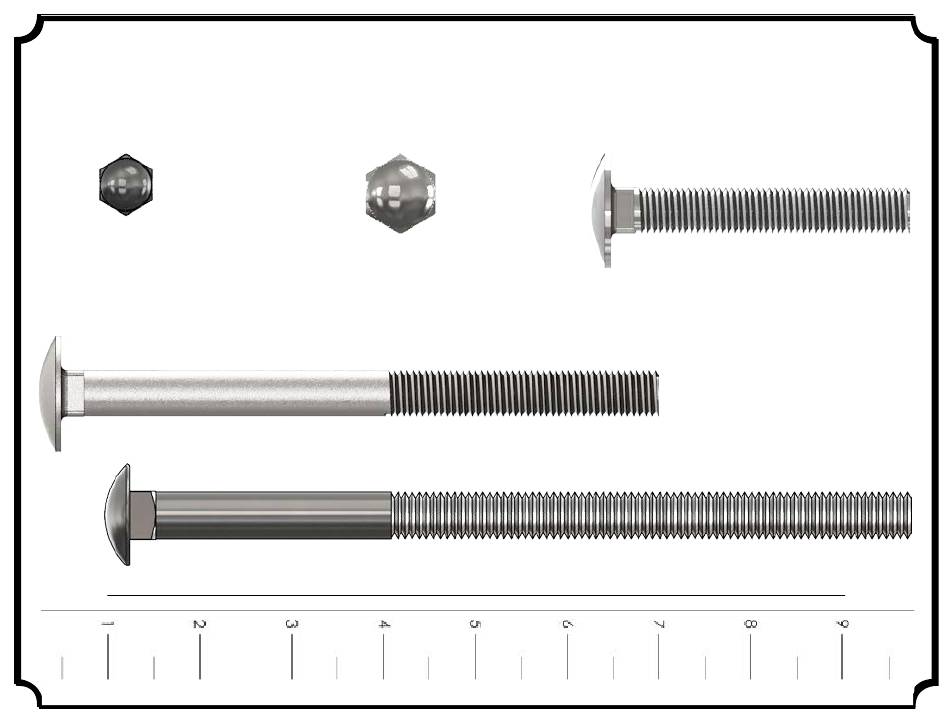

USE THE RULER TO MEASURE YOUR BOLTS AND SCREWS. HARDWARE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH HARDWARE SIZES.
MANUAL TO OWNER.)
SBH-2
40-1-00002
1/2" Acorn Nut Plated
QTY. 8
SBH-4
40-1-00090
1/2" x 6 1/2" Carriage Bolt
QTY. 4
SBH-3
40-1-00011
1/2" x 3" Carriage Bolt
QTY. 2
SBH-5
40-1-00101
1/2" x 8 1/2" Carriage Bolt
QTY. 1
