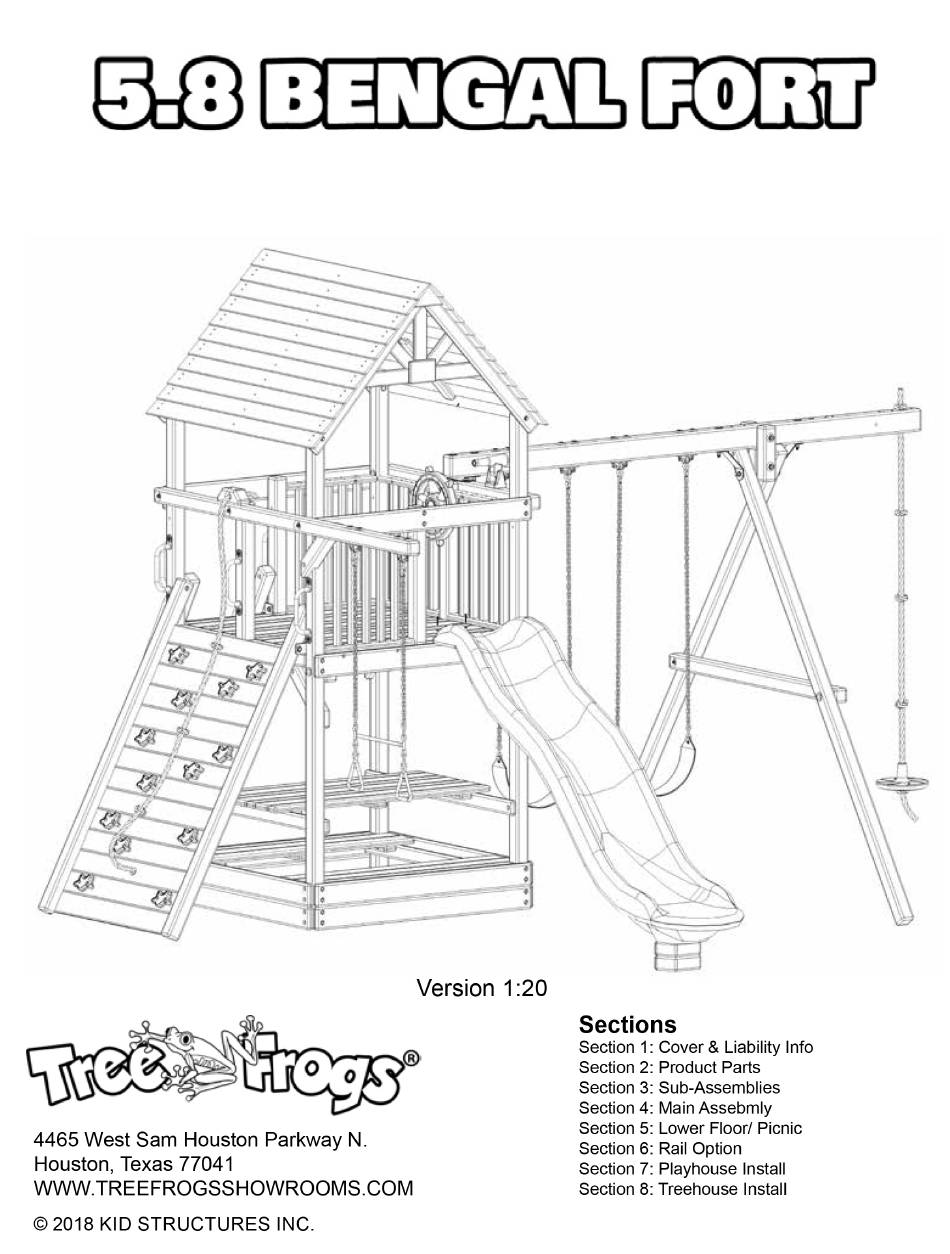

Tree Frogs 5.8 Bengal Fort Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5.8 Bengal Fort and is the answer not in the manual?

Questions and answers

Related Manuals for Tree Frogs 5.8 Bengal Fort

Summary of Contents for Tree Frogs 5.8 Bengal Fort

  • Page 2: Important - Please Read

    Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this natural occurrence, please contact the Tree Frogs Swing Set Dealer that you purchased your swing set from. We appreciate your purchase and know that you will enjoy your play system for many years to come.
  • Page 3 ● Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. ●...
  • Page 4 ● Be sure that the sealant you select is non-toxic and child safe. Your local Tree Frogs Wooden Swing Set Factory dealer may offer a complete power wash and reseal and maintenance program.
  • Page 5 Rock Wall: 150 Lbs. All Slides: 125 Lbs. Tree Frogs recommends that the weight limits for all components must not be exceeded. Failure to adhere to these and other safety guidelines could result in damage to the swing set. and/or injury to the users.
  • Page 6 CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.
  • Page 7 And for a period of 1-Year Tree Frogs warranties all ropes, structural foam molded slides to be free of defects in material and workmanship. Fading is not considered a defect and may occur with seasonal and geographical conditions.
  • Page 8 KSI-404 5.8 Bengal Fort Lumber Description QTY. (CC-003) 404-1 12 1/8” Long Fan Board (CC-015) 404-2 18” Center Fan Board 404-3 50 1/8” Blank Rockwall Board (CC-051) 404-4 7 3/16” Center Fan (CC-053) 404-5 9 9/16” Wood Roof Peak (CC-041) 404-6 42 1/2”...
  • Page 9 KSI-404 5.8 Bengal Fort Lumber Description QTY. (CC-085) 404-8 50 1/8” 2- Rock Rockwall Board (CC-086) 404-9 50 1/8” Blank Rockwall Board (CC-087) 404-10 50 1/8” Rope Hole Rockwall Board (CC-088) 404-11 27 1/2” Rail Spindle (CC-091) 404-12 12 7/8” Center Picnic...
  • Page 10 KSI-404 5.8 Bengal Fort Lumber Description QTY. (CC-097) 404-15 24 1/2” Wood Roof Support (CC-100) 404-16 25” Rail Bottom (CC-099) 404-17 25” Rail Top (CC-105) 404-18 28 1/4” Picnic Center Support (CC-106) 404-19 28 1/4” Picnic Side Support (CC-104) 404-20 30”...
  • Page 11 KSI-404 5.8 Bengal Fort Lumber Description QTY. (CC-113) 404-22 54” Picnic Table Board (CC-114) 404-23 54” Deck Board (CC-115) 404-24 60 1/4” Picnic Support (CC-117) 404-25 60 3/4” Picnic Table Board (CC-123) 404-26 21 9/16” Step (CC-122) 404-27 30” Center Deck...
  • Page 12 KSI-404 5.8 Bengal Fort Lumber Description QTY. (CC-125) 404-29 60 1/4” 4- Hole Facia (CC-126) 404-30 60 3/4” Picnic Table Board (CC-127) 404-31 60 3/4” 4- Hole Facia (CC-128) 404-32 60 3/4” 6- Hole Facia (CC-129) 404-33 60 3/4” 8- Hole Facia...
  • Page 13 KSI-404 5.8 Bengal Fort Lumber Description QTY. (CC-149) 404-36 19” Left Gusset (CC-142) 404-37 25” Entrapment Block (CC-164) 404-38 32 1/8” Center Post (CC-165) 404-39 38 7/8” Center Upright (CC-160) 404-40 60 1/4” Swingbeam Top Joist 404-41 86” Right Rockwall 404-42 86”...
  • Page 14 KSI-404 5.8 Bengal Fort Lumber Description QTY. 404-43 91” Left Ladder Leg 404-44 91” Right Ladder Leg (CC-166) 404-45 104” Trapeze Arm 404-46 119 11/16” Corner Post (CC-187) 404-47 60 1/4” Mainbeam (CC-195) 404-48 67 1/2” Wood Roof Board (CC-240) 404-49 7 7/8”...
  • Page 15 KSI-404 5.8 Bengal Fort Lumber Description QTY. (CC-243) 404-50 13 3/8” A-Frame Block (CC-244) 404-51 13 3/8” A-Frame Block Sunk (CC-155) 404-52 70” A-Frame Crossmember (CC-157) 404-53 124” A-Frame Leg (CC-184) 404-54 132 5/8” Universal Swingbeam (CC-199) 404-55 12” Slide Block #1...
  • Page 16 KSI-407 Playhouse Panel Lumber Description QTY. 407-1 55 3/8” Slim Door Board 407-2 55 3/4” Door Stop 407-3 55 13/16” Center Playhouse Panel Board (CC-027) 407-4 32 1/8” Door Side Cross Facia (CC-037) 407-5 60 1/4” Side Cross Facia (CC-040) 407-6 60 3/4”...
  • Page 17 KSI-407 Playhouse Panel Lumber Description QTY. 407-8 12 9/16” Upper Door Filler 407-9 13 11/16” Above Window Filler (CC-016) 407-10 20” Playhouse Window Arch (CC-018) 407-11 24 1/2” Door Cross Piece 407-12 26 1/4” Lower Board (CC-030) 407-13 44 1/2” Store Arch 407-14 55 13/16”...
  • Page 18 KSI-407 Playhouse Panel Lumber Description QTY. 407-15 26 3/8” Store Lower Center Filler 407-16 13 11/16” Store Upper Wide Filler 407-17 15” Playhouse Left Shutter 407-18 15” Playhouse Right Shutter (CC-048) 407-19 24 1/2” Large Door Bottom Angled 407-20 26 3/8” Lower Wide Under Store Board (CC-049) 407-21...
  • Page 19 KSI-407 Playhouse Panel Lumber Description QTY. (CC-050) 407-22 35 1/4” Playhouse Store Counter 407-23 55 3/8” Door Large Board 407-24 57 5/16” Playhouse Shutter Board (CC-090) 407-25 60 3/4” Lower Deck Filler (CC-108) 407-26 35” Store Counter Support 407-27 59 11/16” Playhouse Panel Upright...
  • Page 20 KSI-406 Treehouse Panel Lumber Description QTY. (CC-001) 406-1 24 13/16” Panel Filler Support 406-2 8 3/4” Treehouse Center Holder 406-3 10 1/2” Treehouse Panel Board #1 406-4 10 1/2” Side Center Holder 406-5 18” Side Center Panel Board 406-6 19 1/2” Side Panel End Board (CC-016) 406-7...
  • Page 21 KSI-406 Treehouse Panel Lumber Description QTY. 406-8 26 1/4” End Treehouse Panel Board 406-9 29” Center Panel Board 406-10 45 3/8” Panel Board (CC-038) 406-11 60 1/4” Side Facia 406-12 10 1/2” Center Panel Board 406-13 9 1/8” Left SB Side Shutter (CC-057) 406-14...
  • Page 22 KSI-406 Treehouse Panel Lumber Description QTY. (CC-058) 406-15 14” Side Right Shutter 406-16 15” Right Shutter 406-17 15” Left Shutter 406-18 19 1/2” Side Shutter Board 406-19 30 1/2” Large Panel Board 406-20 30 1/2” End Panel Board (CC-089) 406-21 27 1/2”...
  • Page 23 404-HWR-BAG 5.8 JAGUAR FORT BASE HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) 3/8” Acorn Nut Plated 1/2” Acorn Nut Plated 3/8” x 5” Carriage Bolt QTY. 8 QTY.
  • Page 24 404-HWR-BAG 5.8 JAGUAR FORT BASE HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) A-10 A-11 A-12 Bag B Bag C 3/8” Bolt Cup 8 x 80mm Spring Clip #2 &...
  • Page 25 404-HWR-BAG 5.8 JAGUAR FORT BASE HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag J Bag K Bag L Bag M #14 x 2” Pan Phillips T/S 1/4” x 1 1/4” Pan Phillips M/S 1/4”...
  • Page 26 404-SB-HWR 5.8 SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-1 SB-2 SB-3 SB-6 3/8” Acorn Nut Plated 1/2” Acorn Nut Plated 1/2” x 3 1/2” Carriage Bolt 3/8”...
  • Page 27 404-SB-HWR 5.8 SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-8 SB-13 3/8” x 7” Hex Bolt 3/8” Nylon Insert Locknut QTY. 8 QTY. 7 SB-9 3/8” x 10” Hex Bolt QTY.
  • Page 28 404-SB-HWR 5.8 SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-14 SB-15 SB-16 SB-17 SB-18 #14 x 1” Pan Phillips T/S 3/8” Split Lockwasher 1/2” Split Lockwasher 3/8”...
  • Page 29 407-HWR-BAG PLAYHOUSE PANEL HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) PP-1 PP-2 PP-3 PP-4 90 Degree Bracket 1 5/8” Coated Deck Screw 2” Coated Deck Screw 3/8” x 3 1/2” Hex Lag Screw QTY.
  • Page 30 406-HWR-BAG TREEHOUSE PANEL HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) TP-1 TP-2 TP-3 TP-4 1 1/2” Coated Deck Screw 2” Coated Deck Screw 1/4” x 3” Hex Lag Screw 1/4”...
  • Page 31 KSI-404 Bengal Fort Accessories Description QTY. 404-A Fort Ladder Bracket 404-B 45 Degree Swingbeam Bracket 404-C Swingbeam T-Plate 404-D Playgrip Safety Handle 404-E PLaygrip Ladder Handle 404-F 14’ Yellow Rope 404-G 20” Trapeze Bar w/ Rings...
  • Page 32 Picture Description QTY. 404-H Disc Swing 404-I Dutile Iron Swing Hanger 404-J 72” Chained Belt Swing 404-K Rockwall Rocks 404-L Telescope 404-M 19” Ships’ Wheel...

  • Page 33: Ladder Assembly

    Ladder Assembly Rockwall Board Assemblies PARTS NEEDED HARDWARE NEEDED 404-43- 91” Left Ladder Leg- CC-123- 21 9/16” Ladder Step- G- 1/4” x 4 1/2” Hex Lag Screw- (24) 404-44- 91” Right Ladder Leg- CC-084- 50 1/8” 1- Rock Rockwall Board- N- 1/4”...

  • Page 34: Deck Assembly

    Rockwall Assembly Deck Assembly (Make 2 Assemblies) PARTS NEEDED HARDWARE NEEDED 404-41- 86” Right Rockwall Leg- 404-42- 86” Left Rockwall Leg- D- 2 1/2” Coated Deck Screw- (140) 404-9- 50 1/8” Rockwall Board Blank- CC-085- 50 1/8” 2- Rock Rockwall Board- CC-084- 50 1/8”...
  • Page 35 Wood Roof Fan PARTS NEEDED HARDWARE NEEDED CC-051- 7 3/16” Center Fan Cap- B- 1 1/2” Coated Deck Screw- (24) CC-041- 42 1/2” Bottom Fan Board- CC-015- 18” Center Fan Board- CC-003- 12 1/8” Long Fan Board-...

  • Page 36: Beam Assembly

    A-Frame Block Assembly Beam Assembly PARTS NEEDED HARDWARE NEEDED CC-240- 7 7/8” Center A-Frame Block- SB-9- 3/8” x 10” Hex Bolt- SB-20- 3/8” Bolt Cup- CC-244- 13 3/8” A-Frame Block Sunk- SB-17- 3/8” USS Flatwasher- SB-15- 3/8” Split Lockwasher- CC-243- 13 3/8” A-Frame Block- SB-6- 3/8”...

  • Page 37: A-Frame Assembly

    A-Frame Assembly PARTS NEEDED HARDWARE NEEDED Beam Assembly- SB-9- 3/8” x 9” Hex Bolt- SB-20- 3/8” Bolt Cup- Block Assembly- SB-17- 3/8” USS Flatwasher- SB-15- 3/8” Split Lockwasher- 404-B- 45 Degree Swingbeam Bracket- (2) SB-6- 3/8” Hex Nut- SB-1- 3/8” Acorn Nut Plated- SB-10- 1/2”...
  • Page 38 Slide Install PARTS NEEDED HARDWARE NEEDED CC-200- 12” Slide Block #2- O- 3/8” USS Flatwasher- CC-199- 12” Slide Block #1- I- 3/8” x 5” Hex Lag Screw-...
  • Page 39 Swingbeam Side Wall Assembly PARTS NEEDED HARDWARE NEEDED 404-46- 119 11/16” Corner Post- A-4- 1/2” x 7” Carriage Bolt- P- 3/4” USS Flatwasher- CC-125- 60 1/4” 4- Hole Facia- O- 1/2” USS Flatwasher- M- 1/2” Split Lockwasher- CC-160- 60 1/4” SB Top Joist- A-6- 1/2”...
  • Page 40 Swingbeam Side Wall PARTS NEEDED HARDWARE NEEDED CC-165- 38 7/8” Center Upright- A-4- 1/2 x 7” Carriage Bolt- Q- 3/4” USS Flatwasher- CC-148- 19” Right Gusset- P- 1/2” USS Flatwasher- M- 1/2” Split Lockwasher- CC-149- 19” Left Gusset- A-6- 1/2” Hex Nut- A-2- 1/2”...
  • Page 41 Trapeze Side Wall PARTS NEEDED HARDWARE NEEDED CC-166- 104” Trapeze Arm- A-4- 1/2” x 7” Carriage Bolt- Q- 3/4” USS Flatwasher- 404-46- 119 1/2” Corner Post- P- 1/2” USS Flatwasher- M- 1/2” Split Lockwasher- CC-187- 60 1/4” Mainbeam- A-6- 1/2” Hex Nut- A-2- 1/2”...
  • Page 42 Trapeze Side Wall PARTS NEEDED HARDWARE NEEDED CC-165- 38 7/8” Center Upright- A-4- 1/2” x 7” Carriage Bolt- Q- 3/4” USS Flatwasher- CC-148- 19” Right Gusset- P- 1/2” USS Flatwasher- M- 1/2” Split Lockwasher- CC-149- 19” Left Gusset- A-6- 1/2” Hex Nut- A-2- 1/2”...
  • Page 43 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED CC-127- 60 3/4” 4- Hole Facia- O- 3/8” USS Flatwasher- Deck Assembly- H- 3/8” x 3 1/2” Hex Lag Screw- G- 1/4” x 4 1/2” Hex Lag Screw- N- 1/4” USS Flatwasher-...
  • Page 44 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED CC-129- 60 3/4” 8- Hole Facia- G- 1/4” x 4 1/2” Hex Lag Screw- CC-128- 60 3/4” 6-Hole Facia- N- 1/4” USS Flatwasher- O- 3/8” USS Flatwasher- (16) H- 3/8” x 3 1/2” Hex Lag Screw- (16)
  • Page 45 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED CC-164- 32 1/8” Center Post- O- 3/8” USS Flatwasher- (10) CC-142- 25” Entrapment Block- H- 3/8” x 3 1/2” Hex Lag Screw- I- 3/8” x 5” Hex Lag Screw-...
  • Page 46 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED Rockwall Assembly- O- 3/8” USS Flatwasher- Ladder Assembly-...
  • Page 47 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED CC-100- 25” Rail Bottom- N- 1/4” USS Flatwasher- CC-148- 19” Right Gusset- F- 1/4” x 2” Hex Lag Screw- O- 3/8” USS Flatwasher- H- 3/8” x 3 1/2” Hex Lag Screw-...
  • Page 48 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED CC-143- 11” Rope Block- I- 3/8” x 5” Hex Lag Screw- 404-F- 14’ Yellow Rope- O- 3/8” USS Flatwasher- SLIDE 404-F THROUGH CC-143 AND TIE A KNOT HOLDING IT IN PLACE. WORK YOUR WAY DOWN TYING A KNOT EVERY 2 TO 3 FEET UNTIL YOU STRING THE ROPE THROUGH CC-087 AND TIE A KNOT SECURING THE ROPE TO THE ROCKWALL.
  • Page 49 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED CC-107- 48 1/8” Wood Roof Support- A-1- 3/8” Acorn Nut Plated- A-5- 3/8” Hex Nut- CC-053- 9 9/16” Wood Roof Peak- A-9- 3/8” Split Lockwasher- O- 3/8” USS Flatwasher- P- 1/2” USS Flatwasher- A-3- 3/8”...
  • Page 50 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED Fan Assembly- B- 1 1/2” Coated Deck Screw- (56) CC-195- 67 1/2” Wood Roof Board- REPEAT FOR BOTH SIDES OF WOOD ROOF. WOOD ROOF BOARDS OVERHANG SUPPORTS BY 2 1/4”...
  • Page 51 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED CC-098- 20” Wood Roof Support- B- 1 1/2” Coated Deck Screw- (48) CC-195- 67 1/2” Wood Roof Board- (10) REPEAT FOR BOTH SIDES OF WOOD ROOF REPEAT FOR BOTH SIDES OF WOOD ROOF...
  • Page 52 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED CC-097- 25” Wood Roof Support- B- 1 1/2” Coated Deck Screw- (30) CC195- 67 1/2” Wood Roof Board- REPEAT FOR BOTH SIDES OF WOOD ROOF...
  • Page 53 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED 404-G- 20” Trapeze Bar w/ Rings- A-11- 8 x 80mm Spring Clip- 404-L- Telescope-...
  • Page 54 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED 404-M- 19” Ships’ Wheel- (Hardware with Ships’ Wheel) 404-E- Playgrip Ladder Handle- J- #14 x 2” Pan Phillips T/S- N- 1/4” USS Flatwasher-...
  • Page 55 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED 404-D- Playgrip Safety Handle- N- 1/4” USS Flatwasher- (10) J- #14 x 2” Pan Phillips T/S- (10) 404-C- Swingbeam T-Bracket- SB-3- 1/2” x 3 1/2” Carriage Bolt- SB-19- 3/4” USS Flatwasher- SB-18- 1/2” USS Flatwasher- SB-16- 1/2”...
  • Page 56 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED A-Frame Assembly- SB-5- 1/2” x 9” Carriage Bolt- SB-4- 1/2” x 7” Carriage Bolt- SB-19- 3/4” USS Flatwasher- SB-18- 1/2” USS Flatwasher- SB-16- 1/2” Split Lockwasher- SB-7- 1/2” Hex Nut- SB-2- 1/2” Acorn Nut Plated- SB-17- 3/8”...
  • Page 57 Bengal Fort Main Assembly PARTS NEEDED HARDWARE NEEDED CC-155- 72” A-Frame Crossmember- SB-4- 1/2” x 7” Carriage Bolt- SB-19- 3/4” USS Flatwasher- 404-J- 72” Chained Belt Swing- SB-18- 1/2” USS Flatwasher- SB-16- 1/2” Split Lockwasher- SB-7- 1/2” Hex Nut- SB-2- 1/2” Acorn Nut Plated- SB-21- 8 x 80mm Spring Clip- LEVEL THE CORSSMEMBER AND MARK THE HOLES TO BE DRILLED USING 9/16”...
  • Page 58 Bengal Fort Main Assembly Finished Base Assembly PARTS NEEDED 404-F- 14’ Yellow Rope- 404-H- Disc Swing- SLIP THE ROPE THROUGH THE SWINGBEAM AND TIE A KNOT. THEN TIE A THE BASE ASSEMBLY IS FINISHED. NEXT DETERMINE IF THE PACKAGE KNOT EVERY 2 TO 3 FEET. PLACE THE 404-F DISC SWING ON THE ROPE YOU HAVE HAS THE LOWER FLOOR OR A PICNIC TABLE.
  • Page 59 Picnic Table/ Lower Floor Sub-Assemblies PARTS NEEDED HARDWARE NEEDED CC-092- 12 7/8” Picnic Side Support- CC-091- 12 7/8” Center Picnic Seat Support- D- 2 1/2” Coated Deck Screw- (78) CC-126- 60 3/4” Picnic Table Board- CC-113- 54” Picnic Table Board- CC-106- 28 1/4”...
  • Page 60 Picnic Table Install (Skip for Lower Floor) PARTS NEEDED HARDWARE NEEDED 404-24- 60 1/4” Picnic Support- O- 3/8” USS Flatwasher- H- 3/8” x 3 1/2” Hex Lag Screw- REMOVE THE LOWER FACIA BOARDS FOR EASY ACCESS TO THE LOWER PART OF THE UNIT.
  • Page 61 Picnic Table Install (Skip for Lower Floor) PARTS NEEDED HARDWARE NEEDED Seat Assembly- N- 1/4” USS Flatwasher- CC-115- 60 1/4” Picnic Support- G- 1/4” x 4 1/2” Hex Lag Screw- O- 3/8” USS Flatwasher- H- 3/8” x 3 1/2” Hex Lag Screw-...
  • Page 62 Picnic Table Install (Skip for Lower Floor) PARTS NEEDED HARDWARE NEEDED Table Assembly- G- 1/4” x 4 1/2” Hex Lag Screw- Seat Assembly- N- 1/4” USS Flatwasher-...
  • Page 63 Picnic Table Install (Skip for Lower Floor) PLACE THE OUTSIDE FACIAS BACK ON THE UNIT. THE PICNIC INSTALL FINISHED BASE ASSEMBLY WITH PICNIC TABLE. IS COMPLETE.
  • Page 64 Lower Floor Install (Used Mainly For Playhouse Panels) PARTS NEEDED HARDWARE NEEDED CC-115- 60 1/4” Picnic Support- H- 3/8” x 3 1/2” Hex Lag Screw- O- 3/8” USS Flatwasher- PICNIC SUPPORTS ARE 5/8” FROM GROUND TO BOTTOM OF BOARD REMOVE THE LOWER FACIA BOARDS FOR EASY ACCESS TO THE LOWER PART OF THE UNIT.
  • Page 65 Lower Floor Install (Used Mainly For Playhouse Panels) PARTS NEEDED HARDWARE NEEDED Seat Assembly- N- 1/4” USS Flatwasher- CC-090- 60 3/4” Lower Deck Filler- G- 1/4” x 4 1/2” Hex Lag Screw- D- 2 1/2” Coated Deck Screw-...
  • Page 66 Lower Floor Install (Used Mainly For Playhouse Panels) PARTS NEEDED HARDWARE NEEDED Seat Assembly- G- 1/4” x 4 1/2” Hex Lag Screw- Table Assembly- N- 1/4” USS Flatwasher- PLACE 1 OF THE OUTSIDE FACIAS BACK ON THE UNIT. THE LOWER FLOOR INSTALL IS COMPLETE AND READY FOR THE PLAYHOUSE PANEL INSTALL.
  • Page 67 Open Rail Install PARTS NEEDED HARDWARE NEEDED CC-088- 27 1/2” Rail Spindle- (20) D- 2 1/2” Coated Deck Screw- (80) CC-099- 25” Rail Top- N- 1/4” USS Flatwasher- (16) CC-100- 25” Rail Bottom- G- 1/4” x 4 1/2” Hex Lag Screw- F- 1/4”...
  • Page 68 Open Rail Install PARTS NEEDED HARDWARE NEEDED Slide- J- #14 x 2” Pan Phillips T/S- N- 1/4” USS Flatwasher- FINSHED OPEN RAIL ASSEMBLY WITH PICNIC TABLE FINSHED OPEN RAIL ASSEMBLY WITH LOWER FLOOR...
  • Page 69 Closed Rail Install (Used for Treehouse Install) PARTS NEEDED HARDWARE NEEDED CC-088- 27 1/2” Rail Spindle- (20) D- 2 1/2” Coated Deck Screw- (16) CC-099- 25” Rail Top- TP-1- 1 5/8” Coated Deck Screw- (144) CC-100- 25” Rail Bottom- CC-089- 27 1/2” Panel Filler- (16) CC-001- 24 13/16”...
  • Page 70 Closed Rail Install (Used for Treehouse Install) PARTS NEEDED HARDWARE NEEDED Slide- J- #14 x 2” Pan Phillips T/S- N- 1/4” USS Flatwasher- FINSHED CLOSED RAIL ASSEMBLY WITH PICNIC TABLE FINSHED CLOSED RAIL ASSEMBLY WITH LOWER FLOOR...
  • Page 71 Playhouse Double Window Assembly (Make 2 Assemblies) PARTS NEEDED HARDWARE NEEDED 407-14- 55 13/16” Panel End Board- 407-12- 26 1/4” Lower Board- (12) PP-2- 1 5/8” Coated Deck Screw- (80) 407-24- 57 5/16” Playhouse Shutter Board- 407-9- 13 11/16” Above Window Filler- (12) 407-17- 15”...
  • Page 72 Playhouse Store Assembly PARTS NEEDED HARDWARE NEEDED 407-16- 13 11/16” Store Upper Wide Filler- 407-9- 13 11/16” Above Window Filler- PP-2- 2” Coated Deck Screw- 407-12- 26 1/4” Lower Board- 407-24- 57 5/16” Playhouse Shutter Board- PP-1- 1 5/8” Coated Deck Screw- (78) 407-14- 55 13/16”...
  • Page 73 Playhouse Door Panel Assembly PARTS NEEDED HARDWARE NEEDED 407-8- 12 9/16” Upper Door Filler- 407-23- 55 3/8” Door Large Board- PP-2- 1 5/8” Coated Deck Screw- (54) 407-12- 26 1/4” Lower Door Board- 407-1- 55 3/8” Slim Door Board- CC-018- 24 1/2” Door Cross Piece- CC-016- 20”...
  • Page 74 Door Side Panel PARTS NEEDED HARDWARE NEEDED 407-14- 55 13/16” Panel End Board- CC-027- 32 1/8” Door Side Cross Facia- PP-2- 1 5/8” Coated Deck Screw- (50) 407-9- 13 11/16” Above Window Filler- 407-24- 57 5/16” Playhouse Shutter Board- 407-12- 26 1/4” Lower Panel Board- CC-049- 32 1/8”...
  • Page 75 Playhouse Panel Install PARTS NEEDED HARDWARE NEEDED Store Panel- PP-7- 3/8” USS Flatwasher- Double Window Panel- PP-4- 3/8” x 3 1/2” Hex Lag Screw- PP-2- 1 5/8” Coated Deck Screw- (52) REPEAT FOR ROCKWALL SIDE...
  • Page 76 Playhouse Panel Install PARTS NEEDED HARDWARE NEEDED Door Side Panel- PP-1- 90 Degree Bracket- 407-27- 59 11/16” Playhouse Panel Upright- PP-7- 3/8” USS Flatwasher- 407-2- 55 3/4” Door Stop- PP-4- 3/8” x 3 1/2” Hex Lag Screw- PP-5- #14 x 1” Pan Phillips T/S- PP-6- 1/4”...
  • Page 77 Playhouse Panel Install PARTS NEEDED HARDWARE NEEDED CC-005- 6” Door Knob Plate- PP-8- Hinge w/ Handles and Screws-...
  • Page 78 Finished Playhouse Install with Open Rails Finished Playhouse Install with Closed Rails...
  • Page 79 Rockwall Side Treehouse Panel PARTS NEEDED HARDWARE NEEDED 406-6- 19 1/2” Side Panel End Board- 406-5- 18” Side Center Panel Board- TP-1- 1 1/2” Coated Deck Screw- (36) 406-4- 10 1/2” Side Center Holder- 406-18- 19 1/2” Side Shutter Board- 406-11- 60 1/4”...
  • Page 80 Swingbeam Side Treehouse Panel PARTS NEEDED HARDWARE NEEDED 406-6- 19 1/2” Side Panel End Board- 406-18- 19 1/2” Side Shutter Board- TP-1- 1 1/2” Coated Deck Screw- (36) 406-4- 10 1/2” Side Center Holder- 406-5- 18” Side Center Panel Board- CC-058- 14”...
  • Page 81 Treehouse Panel Install (Repeat for Both Sides) PARTS NEEDED HARDWARE NEEDED SB Side Panel- TP-1- 1 1/2” Coated Deck Screw- (40) RW Side Panel- 406-8- 26 1/4” End Treehouse Panel Board-...
  • Page 82 Treehouse Panel Install (Repeat for Both Sides) PARTS NEEDED HARDWARE NEEDED 406-20- 30 1/2” End Panel Board- TP-1- 1 1/2” Coated Deck Screw- (52) 406-10- 45 3/8” Panel Board #2-...
  • Page 83 Treehouse Panel Install (Repeat for Both Sides) PARTS NEEDED HARDWARE NEEDED 406-3- 10 1/2” Treehouse Panel Board #1- TP-1- 1 1/2” Coated Deck Screw- (40) 406-12- 10 1/2” Center Panel Board- 406-19- 30 1/2” Large Panel Board-...
  • Page 84 Treehouse Panel Install (Repeat for Both Sides) PARTS NEEDED HARDWARE NEEDED 406-9- 29” Center Panel Board- TP-1- 1 1/2” Coated Deck Screw- (44) CC-016- 20” Window Arch-...
  • Page 85 Treehouse Panel Install Treehouse Finished Looks (Repeat for Both Sides) PARTS NEEDED HARDWARE NEEDED 406-17- 15” Left Shutter- TP-1- 1 1/2” Coated Deck Screw- (32) 406-16- 15” Right Shutter- FINSHED TREEHOUSE ASSEMBLY WITH PICNIC TABLE FINSHED TREEHOUSE ASSEMBLY WITH PLAYHOUSE PANELS...
