TOUCAN FORT- ROCKWALL HARDWARE BAG
INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE
RWH-1
40-1-00022
2" Coated Deck Screw
QTY. 44
RWH-5
40-1-00069

#14 x 1" Pan Phillips T/S

QTY. 6
MEASUREMENT TAKEN FROM BOTTOM OF BOLT HEAD TO THE BOTTOM OF BOLT

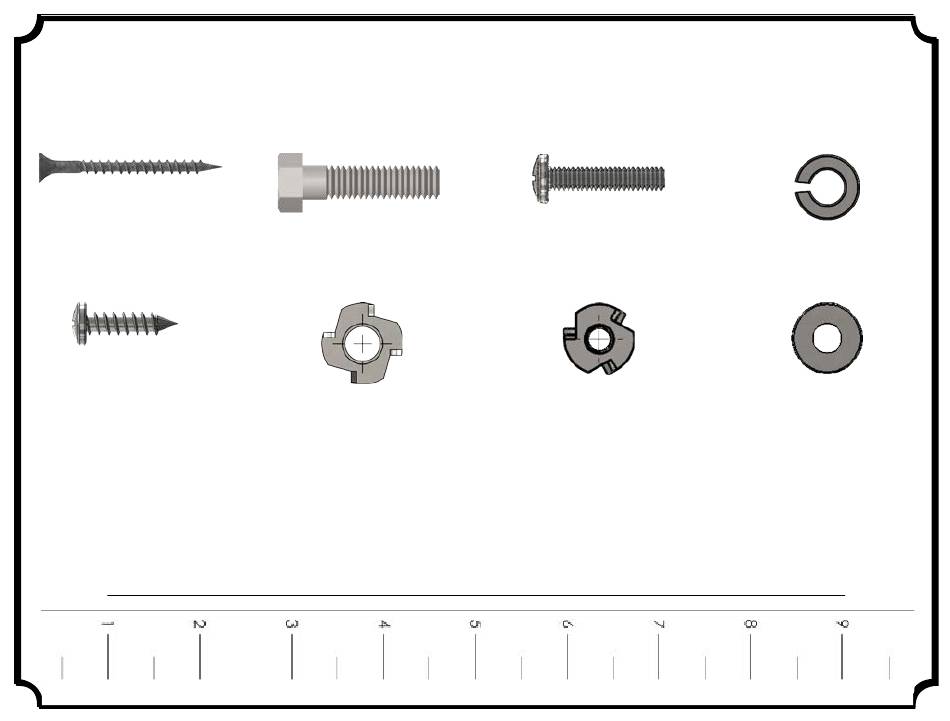

USE THE RULER TO MEASURE YOUR BOLTS AND SCREWS. HARDWARE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH HARDWARE SIZES.
MANUAL TO OWNER.)
RWH-2
40-1-00041
3/8" x 1 1/2" Hex Bolt
QTY. 2
RWH-6
40-1-00080
3/8" 4-Prong T-Nut
QTY. 2
RWH-3
40-1-00066
1/4" x 1 1/4" Pan Phillips M/S
QTY. 20
RWH-7
40-1-00077
1/4" 4-Prong T-Nut
QTY. 20
RWH-4
40-1-00073
3/8" Split Lockwasher
QTY. 2
RWH-8
40-1-00081
1/4" USS Flatwasher
QTY. 26
