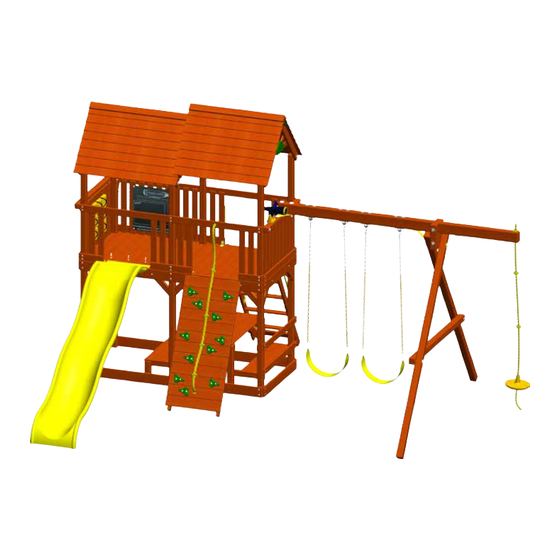

Tree Frogs Rainforest Cottage Install Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Tape Measure
Phillips Screw Driver
Claw Hammer or Rubber Mallet
9/16" Deep Well Socket
Phillips Head Screw Bits
Please familiarize yourself with the install manual, parts/components and general construction process of your new swing set before
getting started. Approximate assembly time: 6 to 8 hours. 6 foot unobstructed safety perimeter around swing set recommended.
HOUSTON, TX 77041 • WWW.TREEFROGSSWINGSETS.COM • © 2013 KID STRUCTURES INC.
Rainforest Cottage
Install Manual
Version 2.17
Tools Needed for Assembly
24" Level
3/8" Cordless Drill or Electric Drill
Pliers or Vise Grips
3/4" Deep Well Socket
An Adult with two Adult Helpers
Angle Square
3/8" Drive Ratchet or Electric Impact Gun
7/16" Deep Well Socket
1/8", 1/4", and 9/16" Drill Bits

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rainforest Cottage and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tree Frogs Rainforest Cottage

Summary of Contents for Tree Frogs Rainforest Cottage

  • Page 1 Rainforest Cottage Install Manual Version 2.17 Tools Needed for Assembly Tape Measure 24” Level Angle Square Phillips Screw Driver 3/8” Cordless Drill or Electric Drill 3/8” Drive Ratchet or Electric Impact Gun Claw Hammer or Rubber Mallet Pliers or Vise Grips 7/16”...
  • Page 2 Rock Wall: 150 Lbs. All Slides: 125 Lbs. Tree Frogs recommends that the weight limits for all components must not be exceeded. Failure to adhere to these and other safety guidelines could result in damage to the swing set and/or injury to the users. Please keep this install manual for future reference.

  • Page 3: Important - Please Read

    Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this natural occurrence, please contact the Tree Frogs Swing Set Dealer that you purchased your swing set from. We appreciate your purchase and know that you will enjoy your play system for many years to come.
  • Page 4 ● Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. ● Identify all of the parts for your play set. Empty each box and lay out boards so you can see each part. Your instruction book will have detailed drawings that will make it easy for you to recognize individual parts. Keep all hardware and metal parts separate from wooden pieces.
  • Page 5 CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.
  • Page 6 Rainforest Cottage- Base Lumber Item No. Part No. Part Description QTY. RFC-1 7 5/8” WOOD ROOF FAN BOARD #1 RFC-2 13 1/16” WOOD ROOF FAN BOARD #2 RFC-3 5 3/4” CHIMNEY BLOCK #3 RFC-4 7” CHIMNEY BLOCK #4 RFC-5 25 13/16” WOOD ROOF FAN BOTTOM RFC-6 48 1/16”...
  • Page 7 48 1/16” SB SIDE WOOD ROOF BOARD RFC-60 52 3/16” (L) WOOD ROOF BOARD- TRAPEZE RFC-61 52 3/16” (R) WOOD ROOF BOARD-TRAPEZE Rainforest Cottage- Treehouse Panel Lumber RFTP-1 26 1/2” LOWER SB SIDE PANEL BOARD RFTP-2 10 1/16” UNDER FAN BOARD RFTP-3 26 1/2”...
  • Page 8 Rainforest Cottage- Treehouse Panel Lumber Item No. Part No. Part Description QTY. RFTP-23 26 1/16” UPPER PANEL BOARD FOR SHUTTER RFTP-24 26 1/16” UPPER PANEL BOARD FOR END RFTP-25 26 1/2” RAIL PICKET FOR TREEHOUSE RFTP-26 31 9/16” SB SIDE UPPER CENTER BOARD RFTP-27 8 1/4”...
  • Page 9 40-1-00064 3/8” NYLON INSERT LOCKNUT RFH-15 40-1-00122 #14 X 1” PAN PHILLIPS T/S RFH-16 41-1-00025 3/8” BOLT CUP Rainforest Cottage- Picnic Table Hardware PTH-1 40-1-00022 2 1/2” COATED DECK SCREW PTH-2 40-1-00055 1/4” X 3” HEX LAG SCREW PTH-3 40-1-00081 1/4”...
  • Page 10 SLH-6 40-1-00082 3/8” USS FLATWASHER Rainforest Cottage- Slide Hardware SH-1 40-1-00081 1/4” USS FLATWASHER SH-2 40-1-00065 1/4” X 1” PAN PHILLIPS M/S SH-3 40-1-00077 1/4” 4-PRONG T-NUT Rainforest Cottage- Tic Tac Toe Hardware TH-1 40-1-00020 1 5/8” COATED DECK SCREW...
  • Page 11 Rainforest Cottage- Swingbeam Hardware Item No. Part No. Part Description QTY. SBH-1 40-1-00001 3/8” ACORN NUT PLATED SBH-2 40-1-00002 1/2” ACORN NUTPLATED SBH-3 40-1-00011 1/2” X 3 1/2” CARRIAGE BOLT SBH-4 40-1-00013 1/2” X 7” CARRIAGE BOLT SBH-5 40-1-00014 1/2” X 9” CARRIAGE BOLT...
  • Page 12 58-1-00006 90 DEGREE LADDER/ ROCKWALL BRACKET RFA-15 39-1-00010 TIC TAC TOE SET RFA-16 39-1-00013 22” X 22” CHALKBOARD PANEL Rainforest Cottage- Box A. & B. Accessories (Color Depends on Package) BAB-1 36-1-000XX ROCKWALL ROCKS BAB-2 60-1-000XX 66” CHAINED BELT SWING...
  • Page 13 Rainforest Cottage- Base Lumber RFC-1 RFC-2 RFC-3 RFC-4 7 5/8” Wood Roof Fan Board #1 13 1/16” Wood Roof Fan Board #2 5 3/4” Chimney Block #3 7” Chimney Block #4 QTY. 4 QTY. 2 QTY. 2 QTY. 2 RFC-5...
  • Page 14 Rainforest Cottage- Base Lumber RFC-13 RFC-14 RFC-15 RFC-16 33 3/4” Wood Roof Center Support 44” Picnic Seat Board 44” Slim 4- Hole Facia 56 13/16” Ladder Side Rail Support Facia QTY. 1 QTY. 4 QTY. 4 QTY. 4 RFC-17 RFC-18...
  • Page 15 Rainforest Cottage- Base Lumber RFC-25 RFC-26 RFC-27 RFC-28 28” 1- Rock Rockwall Board 28” 2- Rock Rockwall Board 28” Blank Rockwall Board 28” Rockwall Board w/ Rope Hole QTY. 4 QTY. 3 QTY. 4 QTY. 1 RFC-29 RFC-30 RFC-31 RFC-32 44”...
  • Page 16 Rainforest Cottage- Base Lumber RFC-37 RFC-38 RFC-40 RFC-39 15 3/8” Picnic Seat Bench Support 17” Gusset 18 3/16” Outside Picnic Bench Support 22” Ladder Step QTY. 2 QTY. 2 QTY. 14 QTY. 5 RFC-41 RFC-42 RFC-43 RFC-44 23 3/4” Ladder Support 32 5/8”...
  • Page 17 Rainforest Cottage- Base Lumber RFC-49 RFC-50 RFC-51 RFC-52 11 1/8” Picnic Seat Leg 18 3/16” Trapeze Gusset 24 1/8” Picnic Table Leg 44” Swingbeam Top Joist QTY. 2 QTY. 1 QTY. 2 QTY. 1 RFC-53 RFC-54 RFC-55 RFC-56 76 3/8” Trapeze Arm 103”...
  • Page 18 Rainforest Cottage- Base Lumber RFC-61 52 3/16” (R) Wood Roof Board- Trapeze QTY. 8...
  • Page 19 Rainforest Cottage- Treehouse Panel Lumber RFTP-1 RFTP-2 RFTP-3 RFTP-4 26 1/2” Lower SB Side Panel Board 10 1/16” Under Fan Board 26 1/2” Panel Board 6 1/4” Upper Lemonade Board QTY. 1 QTY. 12 QTY. 2 QTY. 13 RFTP-5 RFTP-6...
  • Page 20 Rainforest Cottage- Treehouse Panel Lumber RFTP-13 RFTP-14 RFTP-15 RFTP-16 16 3/4” (L) SB Side Shutter 16 3/4” (R) SB Shutter 16 3/4” (R) SB Side Shutter 23 1/16” Corner Angle Board QTY. 1 QTY. 1 QTY. 1 QTY. 2 RFTP-17...
  • Page 21 Rainforest Cottage- Treehouse Panel Lumber RFTP-25 RFTP-26 RFTP-27 RFTP-28 26 1/2” Rail Picket For Treehouse 31 9/16” SB Side Upper Center Board 8 1/4” Center Wood Roof Support 12 3/4” Lemonade Wood Roof Support QTY. 2 QTY. 15 QTY. 2 QTY.
  • Page 22 Rainforest Cottage- Swingbeam Lumber SBL-1 SBL-2 SBL-3 SBL-4 7 5/8” Center A-Frame Block 12 7/8” A-Frame Block 12 7/8” A-Frame Block Sinked 68” A-Frame Crossmember QTY. 1 QTY. 1 QTY. 1 QTY. 1 SBL-5 SBL-6 113” A-Frame Leg 122” 3- Position Swingbeam...
  • Page 23 RAINFOREST COTTAGE- BASE HARDWARE BAG INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) RFH-1 RFH-2 RFH-3 RFH-4 40-1-00001 40-1-00020 40-1-00022 40-1-00026 3/8” Acorn Nut Plated 1 5/8” Coated Deck Screw 2 1/2”...
  • Page 24 RAINFOREST COTTAGE- BASE HARDWARE BAG INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) RFH-12 RFH-13 RFH-14 RFH-15 40-1-00081 40-1-00082 40-1-00064 40-1-00122 1/4” USS Flatwasher 3/8” USS Flatwasher 3/8” Nylon Insert Locknut #14 x 1”...
  • Page 25 RAINFOREST COTTAGE- PICNIC TABLE HARDWARE BAG INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) PTH-1 PTH-2 PTH-3 PTH-4 40-1-00022 40-1-00055 40-1-00081 40-1-00054 2 1/2” Coated Deck Screw 1/4” x 3” Hex Lag Screw 1/4”...
  • Page 26 RAINFOREST COTTAGE- WOOD ROOF HARDWARE BAG INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) WRH-6 WRH-8 WRH-7 WRH-9 40-1-00123 40-1-00054 40-1-00081 40-1-00020 1 1/2” Coated Deck Screw 1/4” USS Flatwasher 1/4”...
  • Page 27 RAINFOREST COTTAGE- STEP LADDER HARDWARE BAG INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SLH-1 SLH-2 SLH-3 SLH-4 SLH-6 40-1-00022 40-1-00080 40-1-00122 40-1-00081 40-1-00082 2 1/2” Coated Deck Screw 3/8”...
  • Page 28 RAINFOREST COTTAGE- SWINGBEAM HARDWARE BAG INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SBH-1 SBH-2 SBH-1 40-1-00001 40-1-00002 40-1-00011 3/8” Acorn Nut Plated 1/2” Acorn Nut Plated 1/2” x 3 1/2” Carriage Bolt QTY.
  • Page 29 RAINFOREST COTTAGE- SWINGBEAMHARDWARE BAG HARDWARE BAG INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.)
  • Page 30 RAINFOREST COTTAGE- SWINGBEAM HARDWARE BAG INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SBH-13 SBH-14 SBH-15 SBH-16 SBH-18 40-1-00074 40-1-00082 40-1-00083 40-1-00084 40-1-00122 1/2” Split Lockwasher 3/8” USS Flatwasher 1/2”...
  • Page 31 RAINFOREST COTTAGE- SWINGBEAM HARDWARE BAG INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SBH-20 41-1-00025 3/8” Bolt Cup QTY. 10 MEASUREMENT TAKEN FROM BOTTOM OF BOLT HEAD TO THE BOTTOM OF BOLT...
  • Page 32 RAINFOREST COTTAGE- TREEHOUSE HARDWARE BAG INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) TPH-1 TPH-2 TPH-3 40-1-00020 40-1-00055 40-1-00081 1 5/8” Coated Deck Screw 1/4” x 3” Hex Lag Screw 1/4”...
  • Page 33 Rainforest Cottage- Base Accessories RFA-1 RFA-2 RFA-3 RFA-4 56-1-00012 57-2-00003 57-2-00004 58-1-00010 Ductile Iron Swing Hanger 1” Playgrip U-Mount Ladder Handle 1 1/4” Playgrip Safety Handle Swingbeam Tri-Plate QTY. 6 QTY. 2 QTY. 2 QTY. 1 RFA-5 RFA-6 RFA-7 RFA-8...
  • Page 34 Rainforest Cottage- Base Accessories RFA-13 RFA-14 RFA-15 RFA-16 59-1-00013 58-1-00006 39-1-00010 39-1-00013 Spiral Ground Anchor 90 Degree Ladder/ Rockwall Bracket Tic Tac Toe Set 22” x 22” Chalkboard Panel QTY. 4 QTY. 4 QTY. 1 QTY. 1 Rainforest Cottage- Base Accessories...

  • Page 35: Hardware Needed

    Rainforest Cottage- Sub Assemblies PARTS NEEDED HARDWARE NEEDED RFC-40- 22” Ladder Step- SLH-1- 2 1/2” Coated Deck Screw- (20) RFC-46- 69 7/16” Right Ladder Leg- SLH-5- 3/8” x 1 1/2” Hex Bolt- RFC-45- 69 7/16” Left Ladder Leg- SLH-6- 3/8” USS Flatwasher- RFA-14- 90 Degree Ladder/ Rockwall Bracket- (2) SLH-2- 3/8”...
  • Page 36 Rainforest Cottage- Sub Assemblies PARTS NEEDED HARDWARE NEEDED RFC-41- 23 3/4” Ladder Support- SLH-1- 2 1/2” Coated Deck Screw- RFC-25- 28” 1- Rock Rockwall Board- RWH-2- 1/4” x 1 1/4” Pan Phillips M/S- (22) RFC-26- 28” 2- Rock Rockwall Board- RWH-4- 1/4”...
  • Page 37 Rainforest Cottage- Sub Assemblies PARTS NEEDED HARDWARE NEEDED RFC-44- 65 1/8” Rockwall Support Leg- RWH-6- 3/8” 4- Prong T-Nut- RFC-27- 28” Blank Rockwall Board- RWH-7- 3/8” x 1 1/2” Hex Bolt- RFC-25- 28” 1- Rock Rockwall Board- RWH-8- 3/8” USS Flatwasher- RFC-26- 28”...
  • Page 38 Rainforest Cottage- Sub Assemblies PARTS NEEDED HARDWARE NEEDED RFC-11- 16” Tic Tac Toe Board- WRH-6- 1 1/2” Coated Deck Screw- (28) RFC-2- 13 1/16” Wood Roof Fan Board #2- RFC-1- 7 5/8” Wood Roof Fan Board #1- RFC-36- 8 13/16” Wood Roof Fan Plate- RFC-5- 25 13/16”...

  • Page 39: Parts Needed

    Rainforest Cottage- Swingbeam Side Wall PARTS NEEDED HARDWARE NEEDED RFC-52- 44” Swingbeam Top Joist- RFH-7- 3/8” x 6” Hex Bolt- RFH-16- 3/8” Bolt Cup- RFC-15- 44” Slim 4- Hole Facia- RFH-13- 3/8” USS Flatwasher- RFH-11- 3/8” Split Lockwasher- RFC-56- 108 1/2” Corner Post- RFH-4- 3/8”...
  • Page 40 Rainforest Cottage- Trapeze Side Wall PARTS NEEDED HARDWARE NEEDED RFC-53- 76 3/8” Trapeze Arm- RFH-7- 3/8” x 6” Hex Bolt- RFH-16- 3/8” Bolt Cup- RFC-15- 44” Slim 4- Hole Facia- RFH-13- 3/8” USS Flatwasher- RFH-11- 3/8” Split Lockwasher- RFC-29- 44” 4- Hole Facia- RFH-4- 3/8”...
  • Page 41 Rainforest Cottage- Trapeze Side Wall Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED RFC-50 18 3/16” Trapeze Gusset- RFH-10- 3/8” x 3 1/2” Hex Lag Screw- RFH-13- 3/8” USS Flatwasher- RFC-34- 92 5/8” Rockwall Side Runner- (1) RFH-6- 3/8” x 4 1/2” Hex Bolt- RFH-16- 3/8”...
  • Page 42 Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED RFC-48- 92 5/8” Mainbeam- RFH-6- 3/8” x 4 1/2” Hex Bolt- RFH-13- 3/8” USS Flatwasher- RFC-54- 103” Center Post- RFH-5- 3/8” 4- Prong T-Nut- RFH-1- 3/8” Acorn Nut Plated- RFH-9- 1/4” x 3” Hex Lag Screw- (10) RFH-12- 1/4”...
  • Page 43 Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED RFC-33- 92 5/8” 10-Hole Facia- RFH-12- 1/4” USS Flatwasher- (16) RFC-51- 24 1/8” Picnic Table Leg- RFH-9- 1/4” x 3” Hex Lag Screw- (16) RFC-39- 18 3/16” Outside Picnic Bench Support- PG. 9...
  • Page 44 Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED RFC-14- 44” Picnic Seat Board- PTH-1- 2 1/2” Coated Deck Screw- (12) RFC-9- 37 15/16” Picnic Seat Board- PTH-3- 1/4” USS Flatwasher- RFC-31- 44” Picnic Seat Board- PTH-2- 1/4” x 3” Hex Lag Screw-...
  • Page 45 Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED RFC-21- 44” Picnic Table Board- PTH-1- 2 1/2” Coated Deck Screw- (48) RFC-38- 17” Gusset- PTH-3- 1/4” USS Flatwasher- PTH-2- 1/4” x 3” Hex Lag Screw- PTH-4- 1/4” x 2” Hex Lag Screw-...
  • Page 46 Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED RFC-49- 11 1/8” Picnic Seat Leg- PTH-2- 1/4” x 3” Hex Lag Screw- RFC-37- 15 3/8” Picnic Seat Bench Support- PTH-3- 1/4” USS Flatwasher- RFC-31- 44” Picnic Seat Board- PTH-1- 2 1/2” Coated deck Screw- (12) RFC-14- 44”...
  • Page 47 Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED RFC-9- 37 15/16” Picnic Seat Board- RFH-3- 2 1/2” Coated Deck Screw- (76) RFC-24- 44” Deck Board- (16) PG. 13...
  • Page 48 Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED RFC-38- 17” Gusset- (10) RFH-9- 1/4” x 3” Hex Lag Screw- (16) RFC-10- 12” Short 2- Hole Facia- RFH-12- 1/4” USS Flatwasher- (26) RFH-8- 1/4” X 1 1/2” Hex Lag Screw- (10)
  • Page 49 Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED RFC-16- 53 13/16” Ladder Side Rail Support Facia- RFH-12- 1/4” USS Flatwasher- RFC-12- 21” Center Support Facia- RFH-9- 1/4” x 3” Hex Lag Screw- PG. 15...
  • Page 50 Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED Rockwall Assembly- RWH-4- 1/4” USS Flatwasher- Ladder Assembly- RWH-5- #14 x 1” Pan Phillips T/S- SLH-4- 1/4” USS Flatwasher- SLH-3- #14 x 1” Pan Phillips T/S- PG. 16...
  • Page 51 Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED RFC-17- 92 5/8” Rope Hole Facia- RFH-12- 1/4” USS Flatwasher- (12) RFC-18- 92 5/8” Upper 6- Hole Facia- RFH-9- 1/4” x 3” Hex Lag Screw- (12) PG. 17...
  • Page 52 Rainforest Cottage Main Assembly PARTS NEEDED HARDWARE NEEDED RFC-32- 92 5/8” Deck Support- RFH-2- 1 5/8” Coated Deck Screw- (43) RFC-8- 25 1/2” Rail Picket- PG. 18...
  • Page 53 Rainforest Cottage Open Assembly (Skip to Wood Roof for Treehouse Assembly) PARTS NEEDED HARDWARE NEEDED RFC-8- 25 1/2” Rail Picket- (14) RFH-2- 1 5/8” Coated Deck Screw- (52) PG. 19...
  • Page 54 Rainforest Cottage Open Assembly (Skip to Wood Roof for Treehouse Assembly) PARTS NEEDED HARDWARE NEEDED RFC-8- 25 1/2” Rail Picket- RFH-2- 1 5/8” Coated Deck Screw- (44) Tic Tac Toe- PG. 20...
  • Page 55 Rainforest Cottage Open Assembly (Skip to Wood Roof for Treehouse Assembly) PARTS NEEDED HARDWARE NEEDED RFC-23- 26 1/2” Tic Tac Toe Filler Arch- RFH-2- 1 5/8” Coated Deck Screw- (16) RFC-8- 26 1/2” Rail Picket- PG. 21...

  • Page 56: Parts Needed

    Rainforest Cottage Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED RFC-43- 35” Wood Roof Support- WRH-3- 3/8” x 4 1/2” Hex Bolt- WRH-2- 3/8” Bolt Cup- RFC-22- 8 3/8” Wood Roof Peak Facia- WRH-1- 3/8” 4- Prong T-Nut- WRH-10- 3/8” Acorn Nut Plated- WRH-5- 2”...
  • Page 57 Rainforest Cottage Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED Fan Assembly- WRH-9- 1 5/8” Coated Deck Screw- (26) RFC-60- 52 3/16’ (L) Wood Roof Board- Trapeze- PG. 23...
  • Page 58 Rainforest Cottage Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED RFC-61- 52 3/16” (R) Wood Roof Board- Trapeze- WRH-9- 1 5/8” Coated Deck Screw- (16) RFC-20- 52 3/16” Wood Roof Topper #2- WRH-4- 2 1/2” Coated Deck Screw- RFC-7- 52 3/16” Wood Roof Topper-...
  • Page 59 Rainforest Cottage Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED RFC-13- 33 3/4” Wood Roof Center Support- WRH-6- 1 1/2” Coated Deck Screw- RFC-60- 52 3/16” (L) Wood Roof Board- Trapeze- WRH-9- 1 5/8” Coated Deck Screw- (16) Repeat for both sides.
  • Page 60 Rainforest Cottage Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED RFC-61- 52 3/16” (R) Wood Roof Board- Trapeze- WRH-9- 1 5/8” Coated Deck Screw- (16) WRH-6- 1 1/2” Coated Deck Screw- RFC-43- 35” Wood Roof Support- WRH-4- 2 1/2” Coated Deck Screw- WRH-3- 3/8”...
  • Page 61 Rainforest Cottage Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED RFC-22- 8 3/8” Wood Roof Peak- WRH-5- 2” Coated Deck Screw- Fan Assembly- WRH-9- 1 5/8” Coated Deck Screw- (10) PG. 27...
  • Page 62 Rainforest Cottage Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED RFC-47- 35” Wood Roof Extension- WRH-4- 2 1/2” Coated Deck Screw- RFC-22- 8 3/8” Wood Roof Peak- WRH-8- 1/4” x 2” Hex Lag Screw- WRH-7- 1/4” USS Flatwasher- WRH-5- 2” Coated Deck Screw- Make even with the other Wood Roof Supports PG.
  • Page 63 Rainforest Cottage Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED RFC-59- 48 1/16” SB Side Wood Roof Board- WRH-9- 1 5/8” Coated Deck Screw- (32) RFC-6- 48 1/16” Wood Roof Topper- WRH-4- 2 1/2” Coated Deck Screw- RFC-19- 48 1/16” Wood Roof Topper #2-...
  • Page 64 Rainforest Cottage Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED RFC-13- 33 3/4” Wood Roof Center Support- WRH-6- 1 1/2” Coated Deck Screw- (16) RFC-59- 48 1/16” SB Side Wood Roof Board- WRH-9- 1 5/8” Coated Deck Screw- (32) Repeat for both sides.
  • Page 65 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFC-8- 26 1/2” Rail Picket- (24) RFH-2- 1 5/8” Coated Deck Screw- (96) PG. 31...
  • Page 66 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFC-8- 26 1/2” Rail Picket- RFH-2- 1 5/8” Coated Deck Screw- (12) RFTP-25- 26 1/2” Rail Picket for Treehouse- (13) TPH-1- 1 5/8” Coated Deck Screw-...
  • Page 67 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFC-23- 26 1/2” Tic Tac Toe Filler Arch- RFH-2- 1 5/8” Coated Deck Screw- RFTP-25- 26 1/2” Rail Picket For Treehouse- TPH-1- 1 5/8” Coated Deck Screw- (16) RFTP-3- 26 1/2”...
  • Page 68 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-31- 47 13/16” Window Arches- TPH-3- 1/4” USS Flatwasher- RFTP-20- 17 1/4” Upper Panel Board- TPH-2- 1/4” x 3” Hex Lag Screw- RFTP-21- 17 1/4” Upper Panel Board for Shutters- TPH-1- 1 5/8”...
  • Page 69 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-9- 12” (R) Window Shutter For Side- TPH-4- 1 5/8” Coated Deck Screw- (64) RFTP-8- 12” (L) Window Shutter For Side- TPH-2- 1/4” x 3” Hex Lag Screw- RFTP-33- 44”...
  • Page 70 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-16- 23 1/16” Corner Angle Board- TPH-1- 1 5/8” Coated Deck Screw- (18) RFTP-23- 26 1/16” Upper Panel Board For Shutter- RFTP-24- 26 1/16” Upper Panel Board for End-...
  • Page 71 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-6- 11 1/4” (L) Shutter for Trapeze Side- TPH-1- 1 5/8” Coated Deck Screw- (34) RFTP-7- 11 1/4” (R) Shutter for Trapeze Side- RFTP-2- 10 1/16” Under Fan Board- RFTP-5- 10 1/2”...
  • Page 72 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-29- 28 11/16” Panel Support- TPH-1- 1 5/8” Coated Deck Screw- (20) RFTP-18- 28 13/16” Corner Angle Board SB Side- RFTP-29 sits 3/4” under the top of the Fan Bottom...
  • Page 73 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-22- 24 9/16” SB Side Under Fan Center Board- TPH-1- 1 5/8” Coated Deck Screw- (30) RFTP-26- 31 9/16” SB Side Upper Center Board- RFTP-5- 10 1/2” Under Fan Angle Cut- RFTP-2- 10 1/16”...
  • Page 74 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-13- 16 3/4” (L) SB Side Shutter- (1) TPH-1- 1 5/8” Coated Deck Screw- (30) RFTP-12- 16 3/4 (L) SB Shutter- RFTP-14- 16 3/4” (R) SB Shutter- RFTP-15- 16 3/4”...
  • Page 75 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-30- 44” Slim 4- Hole Facia- TPH-2- 1/4” x 3” Hex Lag Screw- RFTP-35- 44” Lemonade 4- Hole Facia- TPH-3- 1/4” USS Flatwasher- PG. 41...
  • Page 76 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-34- 44” Lemonade Facia- TPH-2- 1/4” x 3” Hex Lag Screw- RFTP-19- 44 1/2” Lower Panel Board- TPH-3- 1/4” USS Flatwasher- RFTP-17- 26 1/2” Lower Panel Board- (11) TPH-1- 1 5/8”...
  • Page 77 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-4- 6 1/4” Upper Lemonade Board- (13) TPH-1- 1 5/8” Coated Deck Screw- (26) RFTP-28- 12 3/4” Lemonade Wood Roof Support- TPH-2- 1/4” x 3” Hex Lag Screw- TPH-3- 1/4”...
  • Page 78 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-36- 45 3/4” Lemonade Wood Roof Board- TPH-1- 1 5/8” Coated Deck Screw- (10) RFTP-27- 8 1/4” Center Wood Roof Support- PG. 44...
  • Page 79 Rainforest Cottage Treehouse Assembly (Skip if Open Assembly to Swingbeam Install) PARTS NEEDED HARDWARE NEEDED RFTP-32- 32 1/4” Lemonade Stand Counter- TPH-16- 1 5/8” Coated Deck Screw- (16) RFTP-10- 14 1/4” Lower Left Shutter- RFTP-11- 14 1/4” Lower Right Shutter-...
  • Page 80 Rainforest Cottage Accessories (For All Assemblies) PARTS NEEDED HARDWARE NEEDED RFA-5- 16” Trapeze Bar with Rings- RFH-15- #14 x 1” Pan Phillips T/S- (12) RFA-7- 10 x 100mm Spring Clip- RFH-12- 1/4” USS Flatwasher- (12) RFA-10- 90 Degree Bracket- PG. 46...
  • Page 81 Rainforest Cottage Accessories (For All Assemblies) PARTS NEEDED HARDWARE NEEDED RFA-2- 1” Playgrip U-Mount Ladder Handle- SLH-3- #14 x 1” Pan Phillips T/S- RFA-3- 1 1/4” Playgrip Safety Handle- SLH-4- 1/4” USS Flatwasher- RFH-12- 1/4” USS Flatwasher- RFH-15- #14 x 1” Pan Phillips T/S-...
  • Page 82 Rainforest Cottage Accessories (For All Assemblies) PARTS NEEDED HARDWARE NEEDED RFA-9- Telescope- Hardware with Telescope- RFA-16- 22” x 22” Chalkboard Panel- RFH-15- #14 x 1” Pan Phillips T/S- RFH-12- 1/4” USS Flatwasher- PG. 48...
  • Page 83 Rainforest Cottage Accessories (For All Assemblies) PARTS NEEDED HARDWARE NEEDED RFA-12- 12” Ships Wheel- Hardware with Ships Wheel- RFA-10- 90 Degree Bracket- RFH-12- 1/4” USS Flatwasher- RFH-15- #14 x 1” Pan Phillips T/S- PG. 49...

  • Page 84: Parts Needed

    Rainforest Cottage Swingbeam Install Rainforest Cottage Accessories (For All Assemblies) PARTS NEEDED HARDWARE NEEDED RFA-11- 14’ Yellow Rope- SBH-17- 3/8” x 10” Hex Bolt- SBH-20- 3/8” Bolt Cup- SBL-2- 12 7/8” A-Frame Block- SBH-14- 3/8” USS Flatwasher- SBH-12- 3/8” Split Lockwasher- SBL-3- 12 7/8”...
  • Page 85 Rainforest Cottage Swingbeam Install PARTS NEEDED HARDWARE NEEDED SBL-6- 122” 3 Position Swingbeam- SBH-8- 3/8” x 7” Hex Bolt- SBH-20- 3/8” Bolt Cup- RFA-1- Ductile Iron Swing Hangers- SBH-14- 3/8” USS Flatwasher- SBH-12- 3/8” Split Lockwasher- SBH-11- 3/8” Nylon Insert Locknut- SBH-1- 3/8”...
  • Page 86 Rainforest Cottage Swingbeam Install PARTS NEEDED HARDWARE NEEDED SBL-5- 113” A-Frame Leg- SBH-19- 1/2” x 12” Hex Bolt- SBH-15- 1/2” USS Flatwasher- RFA-6- 45 Degree Swingbeam Bracket- (2) SBH-13- 1/2” Split Lockwasher- SBH-7- 1/2” Hex Nut- RFA-4- Swingbeam Tri-Plate- SBH-2- 1/2” Acorn Nut Plated- SBH-16- 3/4”...
  • Page 87 Rainforest Cottage Swingbeam Install PARTS NEEDED HARDWARE NEEDED SBL-4- 68” A-Frame Crossmember- SBH-5- 1/2” x 9” Carriage Bolt- SBH-4- 1/2” x 7” Carriage Bolt- SBH-16- 3/4” USS Flatwasher- SBH-15- 1/2” USS Flatwasher- Place the top corner of the A-FRAME CROSSMEMBER to the outside of theAFRAME LEG.
  • Page 88 Rainforest Cottage Swingbeam Install PARTS NEEDED HARDWARE NEEDED BAB-2- 66” Chained Belt Swing- SBH-10- 3/8” x 5” Hex Lag Screw- RFA-7- 10 x 100mm Spring Clip- SBH-14- 3/8” USS Flatwasher- PG. 54...
  • Page 89 Rainforest Cottage Swingbeam Install PARTS NEEDED HARDWARE NEEDED RFA-8- Disc Swing- Hardware with Ships Wheel- RFA-11- 14’ Yellow Rope- RFH-12- 1/4” USS Flatwasher- RFH-15- #14 x 1” Pan Phillips T/S- Slip the rop throught the Swingbeam and tie a knot.. Then tie a know every 3 to 4 feet until you place the RFA-8 on the rope and tie a double knot keeping it in Using a 7/16”...
  • Page 90 PG. 56...
