TOUCAN FORT- SWINGBEAM HARDWARE BAG
INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE
MANUAL TO OWNER.)
SBH-15
SBH-17
SBH-19
40-1-00084
40-1-00122
41-1-00025
3/4" USS Flatwasher
#14 x 1" Pan Phillips T/S
3/8" Bolt Cup
QTY. 7
QTY. 2
QTY. 14
SBH-16
40-1-00109
3/8" x 9" Hex Bolt
QTY. 2
MEASUREMENT TAKEN FROM BOTTOM OF BOLT HEAD TO THE BOTTOM OF BOLT

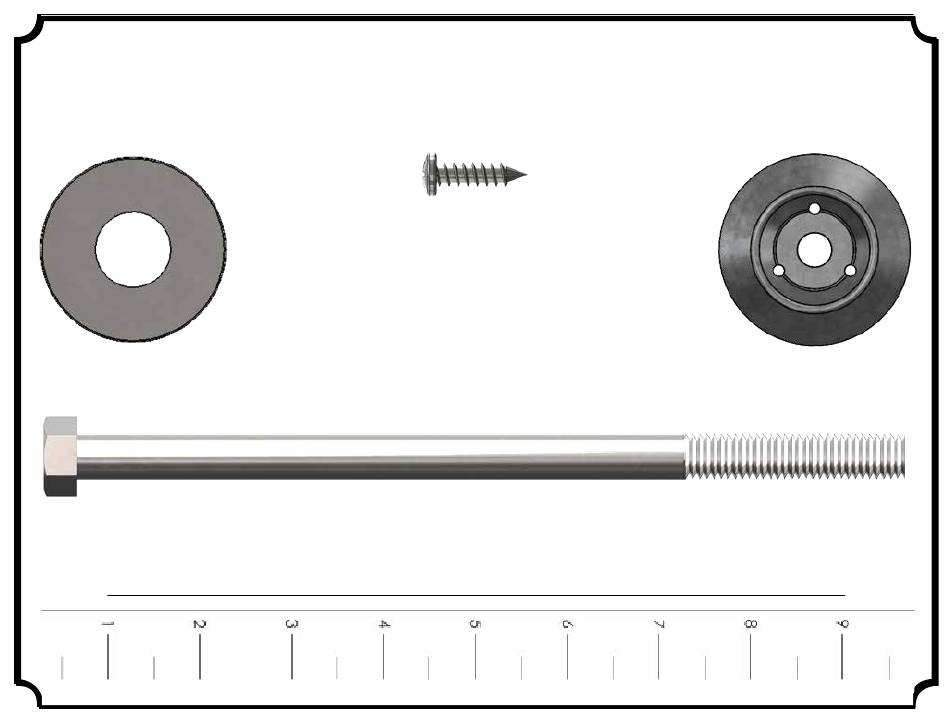

USE THE RULER TO MEASURE YOUR BOLTS AND SCREWS. HARDWARE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH HARDWARE SIZES.
