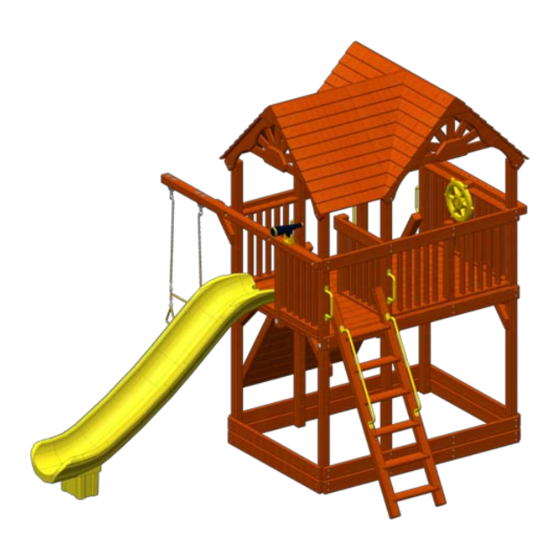

Tree Frogs 5.4 Mega Deck Fort Install Manual
  1. Manuals
  2. Brands
  3. Tree Frogs Manuals
  4. Play Sets & Playground Equipment
  5. 5.4 Mega Deck Fort
  6. Install manual

Tree Frogs 5.4 Mega Deck Fort Install Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Tape Measure
Phillips Screw Driver
Claw Hammeror Rubber Mallet
9/16" Deep Well Socket
Phillips Head Screw Bits
Please familiarize yourself with the install manual, parts/components and general construction process of your new swing set before
getting started. Approximate assembly time: 6 to 8 hours. 6 foot unobstructed safety perimeter around swing set recommended.
Houston, tX 77041 • www.treefrogsswingsets.com • © 2013 kiD structures inc.
5.4 Mega Deck Fort
Install Manual
Tools Needed for Assembly
24" Level
3/8" Cordless Drill or Electric Drill
Pliers or Vise Grips
3/4" Deep Well Socket
An Adult with two Adult Helpers
Version 6.14
Angle Square
3/8" Drive Ratchet or Electric Impact Gun
7/16" Deep Well Socket
1/8", 1/4", and 9/16" Drill Bits

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5.4 Mega Deck Fort and is the answer not in the manual?

Questions and answers

Related Manuals for Tree Frogs 5.4 Mega Deck Fort

Summary of Contents for Tree Frogs 5.4 Mega Deck Fort

  • Page 1 5.4 Mega Deck Fort Install Manual Version 6.14 Tools Needed for Assembly Tape Measure 24” Level Angle Square Phillips Screw Driver 3/8” Cordless Drill or Electric Drill 3/8” Drive Ratchet or Electric Impact Gun Claw Hammeror Rubber Mallet Pliers or Vise Grips 7/16”...
  • Page 2 ● Be sure that the sealant you select is non-toxic and child safe. Your local tree frogs wooden swing set factory dealer may offer a complete power wash and reseal and maintenance program.

  • Page 3: Important - Please Read

    Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this natural occurrence, please contact the Tree Frogs Swing Set Dealer that you purchased your swing set from. We appreciate your purchase and know that you will enjoy your play system for many years to come.
  • Page 4 ● Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. ●...

  • Page 5: Consumer Information Sheet For Playground Surfacing Materials

    CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.

  • Page 6: Universal Deck

    Megadeck Fort Universal Bundle 1 Item No. Part Number Part Description QTY. mB1-1 17-4-00157 UNIVERSAL FORT MAINBEAM mB1-2 16-4-00285 UNIVERSAL FORT TOP JOIST SB mB1-3 16-4-00216 (L) gusset BrAcket mB1-4 16-4-00217 (r) gusset BrAcket mB1-5 16-4-00214 UNI. PC CORNER POST/ UNI. FORT UPRIGHT mB1-6 16-4-00290 UNI.
  • Page 7 64-7-00241 megADeck (r) AngLeD wr PAneL wr-10 64-7-00242 megADeck (L) AngLeD wr PAneL Mega Deck Fort Standard Box mst-1 59-1-00013 TREE FROGS PLAQUE mst-2 57-2-00004 1 1/4” PLAYGRIP SAFETY HANDLE mst-3 57-2-00005 1 1/4” PLAYGRIP LADDER HANDLE mst-4 56-1-00012...

  • Page 8: Part Description

    5.4 Mega Deck Fort Box A. (Multi- Color) Item No. Part Number Part Description QTY. BXA-1 37-1-00018 19” sHiP’s wHeeL-YeLLow BXA-2 37-1-00021 TELESCOPE BXA-3 60-1-00006 20” trAPeze BAr w/ 43” cHAin- YeLLow 5.4 Fort Box Rockwall (Multi- Color) rwB-1 36-1-00023...
  • Page 9 Mega Deck Fort Hardware Bag mfH-1 40-1-00001 3/8” ACORN NUT mfH-2 40-1-00002 1/2” ACORN NUT mfH-3 40-1-00013 1/2” x 7” CARRIAGE BOLT mfH-4 40-1-00020 1 5/8” coAteD Deck screw mfH-5 40-1-00022 2 1/2” coAteD Deck screw mfH-6 40-1-00026 3/8” HEx NUT mfH-7 40-1-00028 1/2”...
  • Page 10 Megadeck Universal Bundle 1 Lumber MB1-1 MB1-2 MB1-3 MB1-4 17-4-00157 16-4-00285 16-4-00216 16-4-00217 Universal Fort Mainbeam Universal Fort Top Joist SB (L) Gusset Bracket (R) Gusset bracket QTY. 4 QTY. 1 QTY. 3 QTY. 3 MB1-5 MB1-6 MB1-7 16-4-00214 16-4-00290 16-4-00283 Uni.
  • Page 11 Megadeck Universal Bundle 2 Lumber MB2-4 MB2-5 MB2-6 12-4-00140 13-4-00086 12-4-00141 Universal Filler Fort Playhouse Panel Facia Universal Rail Bottom QTY. 3 QTY. 1 QTY. 2 5.4 Megadeck Fort- Bundle A. MBA-1 MBA-2 MBA-3 16-4-00291 16-4-00312 13-4-00076 116” Fort Corner Post 116”...
  • Page 12 Universal Deck UD-1 UD-2 UD-3 UD-4 12-4-00139 13-4-00064 12-4-00138 13-4-00063 Small Deck Board Large Deck Board Deck Runners Deck Support QTY. 8 QTY. 6 QTY. 4 QTY. 2 Megadeck Decks MDD-1 MDD-2 MDD-3 13-4-00072 12-4-00154 12-4-00140 Large Deck Board Small Deck Board Deck Runners QTY.
  • Page 13 5.4 Fort Rockwall Bundle RW-1 RW-2 RW-3 RW-4 16-4-00304 16-4-00303 11-4-00138 11-4-00139 85.5” Fort (R) RW Ladder Leg 85.5” Fort (L) RW Ladder Leg Uni. Fort RW Board w/ Rope Hole Uni. Fort RW Board Blank QTY. 1 QTY. 1 QTY.
  • Page 14 Megadeck Fort Wood Roof Bundle WR-4 WR-5 WR-6 20-4-00007 64-7-00237 64-7-00239 Universal Wood Roof Peak Facia Megadeck (L) Top Dormer Panel Megadeck (R) Top Dormer Panel QTY. 3 QTY. 1 QTY. 1 WR-7 WR-8 WR-9 64-7-00238 64-7-00240 64-7-00241 Megadeck (L) Bottom Dormer Panel Megadeck (R) Bottom Dormer Panel Megadeck (R) Angled WR Panel QTY.
  • Page 15 megadeck fort hardware bag INStaLLer Note: (YoU mUSt aSSembLe thIS ProdUct IN accordaNce wIth theSe aSSembLY INStrUctIoNS. wheN comPLete gIVe maNUaL to owNer.) Mfh-1 Mfh-2 Mfh-4 Mfh-5 40-1-00001 40-1-00002 40-1-00020 40-1-00022 3/8” acorn nut 1/2” acorn nut 1 5/8” Coated deck screw 2 1/2”...
  • Page 16 megadeck fort hardware bag INStaLLer Note: (YoU mUSt aSSembLe thIS ProdUct IN accordaNce wIth theSe aSSembLY INStrUctIoNS. wheN comPLete gIVe maNUaL to owNer.) Mfh-9 Mfh-10 40-1-00054 40-1-00055 1/4” x 2” hex lag screw 1/4” x 3” hex lag screw QtY. 14 QtY.
  • Page 17 megadeck fort hardware bag INStaLLer Note: (YoU mUSt aSSembLe thIS ProdUct IN accordaNce wIth theSe aSSembLY INStrUctIoNS. wheN comPLete gIVe maNUaL to owNer.) Mfh-20 Mfh-21 Mfh-22 Mfh-23 40-1-00082 40-1-00083 40-1-00084 40-1-00105 3/8” uss flatwasher 1/2” uss flatwasher 3/4” uss flatwasher 5/16”...
  • Page 18 megadeck fort hardware bag INStaLLer Note: (YoU mUSt aSSembLe thIS ProdUct IN accordaNce wIth theSe aSSembLY INStrUctIoNS. wheN comPLete gIVe maNUaL to owNer.) Mfh-25 40-1-00115 3/8” x 5 1/2” Carriage bolt QtY. 6 Megadeck 5.4 hardware bag Mfh-26 41-1-00025 5Mh-3 5Mh-4 3/8”...
  • Page 19 5.4 fort rockwaLL hardware bag INStaLLer Note: (YoU mUSt aSSembLe thIS ProdUct IN accordaNce wIth theSe aSSembLY INStrUctIoNS. wheN comPLete gIVe maNUaL to owNer.) rWh-1 rWh-2 rWh-3 rWh-5 40-1-00067 40-1-00077 40-1-00081 40-1-00082 1/4” x 1 1/2” Pan Phillips M/s 1/4” x 7/16” t-nut 1/4”...
  • Page 20 Megadeck Fort- Standard Box MST-1 MST-3 MST-4 MST-2 59-1-00013 57-2-00005 56-1-00012 57-2-00004 Tree Frogs Plaque 1 1/4” Playgrip Ladder Handle Ductile Iron Swing Hanger 1 1/4” Playgrip Safety Handle QTY. 1 QTY. 2 QTY. 2 QTY. 5 MST-5 MST-6 59-1-00011 58-1-00013 5.4 Megadeck Fort Box A.
  • Page 21 5.4 Fort Rockwall Box (Multi- Color and Green) RWB-1 RWG-1 RWB-2 & RWG-2 36-1-00023 36-1-00024 65-7-00017 Large Rock- (Multi Color) Large Rock- Green 14’ Yellow Rope QTY. 16 QTY. 16 QTY. 1...
  • Page 22 Ladder Assembly RW Board Assembly Parts Needed Parts Needed MBA-4- 86” Fort (L) Ladder Leg- 5MH-1- 1/4” x 4 1/2” Hex Lag Screw- (24) MBA-5- 86” Fort (R) Ladder Leg- 5MH-3- 1/4” USS Flatwasher- (24) MBA-6- Universal Fort Ladder Leg- RWH-1- 1 1/4”...
  • Page 23 Rockwall Assembly Universal Deck Assembly Parts Needed Parts Needed RW-1- 85 1/2” Fort (L) Rockwall Ladder Leg- RW-2- 85 1/2” Fort (R) RW Ladder Leg- RWH-6- 2 1/2” Coated Deck Screws- (56) RW-3- Uni. Fort RW Board w/ Rope Hole- RW-4- Uni.
  • Page 24 MegaDeck Decks Assembly (L) Fort Side Assembly Spacing Parts Needed Parts Needed MDD-1- Large Deck Board- MDD-2- Small Deck Board- MDD-4- 2 1/2” Coated Deck Screws- (40) MDD-3- Deck Runner- MBA-1- 116” Fort Corner Post- MBA-2- 116” Mega Deck Corner Post- MB2-2- Universal 8 Hole Facia- MB2-3- 14 Hole Megadeck Facia- 57 1/2"...
  • Page 25 (L) Fort Side Assembly Parts Needed Parts Needed MBA-1- 116” Fort Corner Post- MBA-2- 116” Megadeck Corner Post- MFH-12- 3/8” x 3 1/2” Hex Lag Screw- (24) MB2-2- Universal 8 Hole Facia- MB2-3- 14 Hole Megadeck Facia- MFH-18- 5/16 T-Nut- MFH-20- 3/8”...
  • Page 26 (R) Fort Side Assembly Spacing (R) Fort Side Assembly Parts Needed Parts Needed MBA-1- 116” Fort Corner Post- MBA-2- 116” Mega Deck Corner Post- MFH-12- 3/8” x 3 1/2” Hex Lag Screw- (24) MB2-2- Universal 8 Hole Facia- MB2-3- 14 Hole Megadeck Facia- MFH-20- 3/8”...
  • Page 27 (R) Fort Side Assembly Main Fort Assembly Parts Needed Parts Needed MBA-3- Universal Fort 4 Hole Facia- MFH-12- 3/8” x 3 1/2” Hex Lag Screw- (16) MB2-1- Universal Fort 4 Hole Facia- MFH-18- 5/16 T-Nut- MFH-20- 3/8” USS Flatwasher- (22) MFH-23- 5/16”...
  • Page 28 Main Fort Assembly Parts Needed Parts Needed MB1-1- Universal Fort Mainbeam- MFH-3- 1/2” x 7” Carriage Bolt- MFH-2- 1/2” Acorn Nut- MB1-3- (L) Gusset Bracket- MFH-7- 1/2” Hex Nut- MFH-17- 1/2” Split Lockwasher- MB1-4- (R) Gusset Bracket- MFH-21- 1/2” USS Flatwasher- MFH-22- 3/4”...
  • Page 29 Main Fort Assembly Parts Needed Parts Needed MB1-1- Universal Fort Main Beam- MFH-2- 1/2” Acorn Nut- MFH-7- 1/2” Hex Nut- MB2-4- Universal Filler- MFH-17- 1/2” Split Lockwasher- MFH-21- 1/2” USS Flatwasher- MFH-24- 1/2” x 9” Hex Bolt- MFH-19- 1/4” USS Flatwasher- MFH-11- 1/4”...
  • Page 30 Main Fort Assembly Parts Needed Parts Needed Megadeck Deck Assembly- MFH-3- 1/2” x 7” Carriage Bolt- MFH-2- 1/2” Acorn Nut- MB2-4- Universal Filler- MFH-7- 1/2” Hex Nut- MFH-17- 1/2” Split Lockwasher- MB1-5- Universal Fort Upright- MFH-21- 1/2” USS Flatwasher- MFH-22- 3/4” USS Flatwasher- MFH-19- 1/4”...
  • Page 31 Main Fort Assembly Parts Needed Parts Needed MB1-5- Universal Fort Upright- MFH-2- 1/2” Acorn Nut- MFH-7- 1/2” Hex Nut- Megadeck Decks- MFH-17- 1/2” Split Lockwasher- MFH-21- 1/2” USS Flatwasher- MFH-24- 1/2” x 9” Hex Bolt- MFH-19- 1/4” USS Flatwasher- MFH-11- 1/4” x 4 1/2” Hex Lag Screw-...

  • Page 32: Bottom View

    Main Fort Assembly Parts Needed Parts Needed Universal Decks- MFH-19- 1/4” USS FLatwasher- MFH-11- 1/4” x 4 1/2” Hex Lag Screw- MB1-6- Uni Fort Wood roof Center Post- MFH-20- 3/8” USS Flatwasher- MFH-12- 3/8” x 3 1/2” Hex Lag Screw- 5MH-2- 3/8”...
  • Page 33 Main Fort Assembly Parts Needed Parts Needed MB2-6- Universal Rail Bottom- MFH-19- 1/4” USS Flatwasher- MFH-11- 1/4” x 4 1/2” Hex Lag Screw- MB1-2- Uni. Fort Top Joist SB- MFH-3- 1/2” x 7” Carriage Bolt- MFH-22- 3/4” USS Flatwasher- MB1-7- Uni. Fort Trapeze Arm- MFH-21- 1/2”...

  • Page 34: Rail Assembly

    Main Fort Assembly Rail Assembly Parts Needed Parts Needed MB2-5- Fort Playhouse Panel Facia- MFH-20- 3/8” USS Flatwasher- MFH-12- 3/8” x 3 1/2” Hex Lag Screw- Rail-1- Universal Rail Top- Rail-4- 2 1/2” Coated Deck Screw- (140) Rail-2- Universal Rail Bottom- Rail-3- Universal Rail Picket- (35)
  • Page 35 Main Fort Assembly Parts Needed Parts Needed MB1-3- (L) Gusset Bracket- MFH-19- 1/4” USS Flatwasher- (14) MFH-11- 1/4” x 4 1/2” Hex Lag Screw- (14) Rail Assembly- MFH-20- 3/8” USS Flatwasher- MFH-12- 3/8” x 3 1/2” Hex Lag Screw-...
  • Page 36 Main Fort Assembly Parts Needed Parts Needed Rockwall Assembly- MFH-19- 1/4” USS Flatwasher- (14) MFH-9- 1/4” x 2” Hex Lag Screw- RWH-5- 3/8” USS Flatwasher- RWH-4- 3/8” x 5” Hex Lag Screw-...
  • Page 37 Main Fort Assembly Parts Needed Parts Needed Ladder Assembly- RWH-5- 3/8” USS Flatwasher- RWH-4- 3/8” x 5” Hex Lag Screw- MST-6- Fort Ladder Bracket- MFH-12- 3/8” x 3 1/2” Hex Lag Screw- MFH-19- 1/4” USS Flatwasher- MFH-15- #14 x 2” Pan Phillips T/S-...
  • Page 38 Main Fort Assembly Parts Needed Parts Needed MST-4- Ductile Iron Swing Hanger- RWH-5- 3/8” USS Flatwasher- RWH-4- 3/8” x 5” Hex Lag Screw- RW-8- Universal Rope Block- MFH-8- 3/8” x 5” Hex Bolt- MFH-26- 3/8” Bolt Cup- MFH-1- 3/8” Acorn Nut- MFH-13- 3/8”...
  • Page 39 Fort Wood Roof Assembly Parts Needed Parts Needed WR-1- Universal Fort Wood Roof Support- MFH- 1- 3/8” Acorn Nut- MFH-6- 3/8” Hex Nut- WR-3- Fort Wood Roof Panel- MFH-16- 3/8” Split Lockwasher- MFH-20- 3/8” USS Flatwasher- MFH-21- 1/2” USS Flatwasher- MFH-25- 3/8”...
  • Page 40 Fort Wood Roof Assembly Parts Needed Parts Needed WR-3- Fort Wood Roof Panel- MFH-11- 1/4” x 4 1/2” Hex Lag Screw- MFH-19- 1/4” USS Flatwasher-...
  • Page 41 Fort Wood Roof Assembly Parts Needed Parts Needed WR-9- Megadeck (R) Angled WR Panel- MFH-19- 1/4” USS Flatwasher- MFH-11- 1/4” x 4 1/2” Hex Lag Screw- WR-10- Megadeck (L) Angled WR Panel-...
  • Page 42 Fort Wood Roof Assembly Parts Needed Parts Needed WR-4- Universal WR Peak Facia- MFH-5- 2 1/2” Coated Deck Screw- (18) WR-2- Fort Wood Roof Fan-...
  • Page 43 Fort Wood Roof Assembly Parts Needed Parts Needed WR-1- Universal Fort Wood Roof Support- MFH-19- 1/4” USS Flatwasher- MFH-11- 1/4” x 4 1/2” Hex Lag Screw- WR-5- Megadeck (L) Top Dormer WR Panel- MFH-1- 3/8” Acorn Nut- MFH-6- 3/8” Hex Nut- MFH-16- 3/8”...
  • Page 44 Fort Wood Roof Assembly Parts Needed Parts Needed WR-6- Megadeck (R) Top Dormer WR Panel- MFH-11- 1/4” x 4 1/2” Hex Lag Screw- MFH-19- 1/4” USS Flatwasher- WR-7- Megadeck (L) Bottom Dormer WR Panel- MFH-11...
  • Page 45 Fort Wood Roof Assembly Parts Needed Parts Needed WR-8- Megadeck (R) Bottom Dormer WR Panel- MFH-19- 1/4” USS Flatwasher- MFH-11- 1/4” x 4 1/2” Hex Lag Screw- WR-4- Universal Wood Roof Peak Facia- MFH-5- 2 1/2” Coated Deck Screw-...
  • Page 46 Fort Wood Roof Assembly Parts Needed Parts Needed WR-2- Fort Wood Roof Fan- MFH-5- 2 1/2” Coated Deck Screw- (24) Wood Screws go Through the Wood Roof Boards into the supports on the overlapping roof panels.
  • Page 47 Telescope Install Ship’s Wheel Install Parts Needed BXA-1 or BXB-1- 19” Ship’s Wheel- BXA-2 or BXB-2- Telescope-...
  • Page 48 Ladder Handle Install Trapeze Bar Install Parts Needed Parts Needed BXA-3 or BXB-3- 20” Trapeze Bar - Yellow- MST-3- 1 1/4” Playgrip Ladder Handles- MST-2- 1 1/4” Playgrip Safety Handles- MFH-15- #14 x 2” Pan Phillips T/S- MST-5- 10mm x 100mm Spring Clips-...
  • Page 49 Safety Handle Install Safety Handle Install Parts Needed MST-2- 1 1/4” Playgrip Safety Handle- RWB-2 or RWG-2- 14’ Yellow Rope-...
  • Page 50 Rockwall Rope Install String the rope through Universal Rope Block on the Fort tie a knot securing it in the rope block. Now tie a knot every 2 to 3 ft. until you can string through the RW Board w/ Rope Hole. Tie a knot securing it to the the board.
  • Page 51 5.4 & 6.4 Swing Beams Item No. Part Number Part Description QTY. sB-1 17-4-00108 2 POSITION SB 4” x 6”x 99 11/16” sB-2 17-4-00110 3 POSITION SWING BEAM 4” x 6” x 120” sB-3 17-4-00111 4 POSTION SWING BEAM 4” x 6” x 144” 5.4 A-Frame Legs 5Af-1 16-4-00256...
  • Page 52 Universal SB Hardware Bag Item No. Part Number Part Description QTY. usB-3 40-1-00084 3/4” uss fLAtwAsHer usB-4 40-1-00083 1/2” uss fLAtwAsHer usB-5 40-1-00082 3/8” uss fLAtwAsHer usB-6 40-1-00074 1/2” sPLit LockwAsHer usB-7 40-1-00073 3/8” sPLit LockwAsHer usB-8 40-1-00028 1/2” HEx NUT usB-9 40-1-00026 3/8”...
  • Page 53 Universal Swing Beam Box Accessories USB-2 USB-1 58-1-00009 58-1-00014 SB 45 Degree Bracket Swing Beam T-Bracket QTY. 1 QTY. 2 Ductile Hangers W/ Clips for 4x6 (Count is for Each Position) DH-1 DH-2 56-1-00012 59-1-00011 Ductile Iron Swing Hanger 10mm x 100mm Spring Clips QTY.
  • Page 54 5.4 & 6.4 Swing Beams #SB-1 #SB-2 #SB-3 17-4-00108 17-4-00110 17-4-00111 2 Pos Swing Beam 99 11/16” 3 Pos Swing Beam 120” 4 Pos Swing Beam 165 7/16” QTY. 1 QTY. 1 QTY. 1 5.4 A-Frame Legs 5AF-1 5AF-2 16-4-00256 16-4-00257 72”...
  • Page 55 6.4 A-Frame Legs 6AF-1 6AF-2 17-4-00153 17-4-00155 144” 4x6 (6.4) A Frame Leg 96” 4x6 (6.4) Crossmember QTY. 2 QTY. 1 6AF-3 6AF-4 6AF-5 16-4-00254 16-4-00253 16-4-00255 4x4 Swing Beam Block W/ Sinks 4x4 Swing Beam Block W/ Holes 4x4 Swing Beam Center Block QTY.
  • Page 56 Universal sB Hardware Bag insTaller nOTe: (YOU MUsT asseMBle THis PrOdUCT in aCCOrdanCe wiTH THese asseMBlY insTrUCTiOns. wHen COMPleTe give ManUal TO Owner.) #usb-5 #usb-3 #usb-4 #usb-6 #usb-7 40-1-00084 40-1-00083 40-1-00082 40-1-00074 40-1-00073 3/8” uss flatwasher 3/4” uss flatwasher 1/2” uss flatwasher 1/2”...
  • Page 57 Universal sB Hardware Bag insTaller nOTe: (YOU MUsT asseMBle THis PrOdUCT in aCCOrdanCe wiTH THese asseMBlY insTrUCTiOns. wHen COMPleTe give ManUal TO Owner.) #usb-13 40-1-00014 1/2” x 9” Carriage bolt QtY. 1 #usb-14 40-1-00013 1/2” x 7” Carriage bolt QtY. 5 #usb-15 40-1-00011 1/2”...
  • Page 58 Universal sB Hardware Bag insTaller nOTe: (YOU MUsT asseMBle THis PrOdUCT in aCCOrdanCe wiTH THese asseMBlY insTrUCTiOns. wHen COMPleTe give ManUal TO Owner.) #usb-17 40-1-00112 3/8” x 10” hex bolt QtY. 1 #usb-18 40-1-00061 3/8” x 5” lag bolt QtY. 2 ductile hangers for 4x6 sb hardware (Count for each Position) #dh-4...
  • Page 59 ductile hangers for 4x6 sb hardware (Count for each Position) #dh-7 40-1-00045 3/8” x 7” hex bolt QtY. 4 #dh-8 40-1-00001 3/8” acorn nut QtY. 4 USE THE RULER TO MEASURE YOUR BOLTS AND SCREWS. HARDWARE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH HARDWARE SIZES.

  • Page 60: Parts Needed

    SWING BEAM INStAll pArtS NEEdEd HArdWArE NEEdEd USB-3- 3/4” USS Flatwasher- USB-4- 1/2” USS Flatwasher- SB-1,2, or 3- Swing Beam- USB-6- 1/2” Split Lockwasher- USB-8- 1/2” Hex Nut- Swing Beam Top Joist (Attached to Unit) USB-10- 1/2” Acorn Nut- DH-1- Ductile Swing Hangers- DH-3- 3/8”...
  • Page 61 SWING BEAM INStAll pArtS NEEdEd HArdWArE NEEdEd 5or 6 AF-3- Swing Beam Block w/ Sinks- (1) USB-4- 1/2” USS Flatwasher- USB-5- 3/8” USS Flatwasher- USB-6- 1/2” Split Lockwasher- USB-7-3/8” Split Lockwasher- 5 or 6 AF-4-Swing Beam Block w/ Holes- USB-8- 1/2” Hex Nut- USB-9- 3/8”...
  • Page 62 SWING BEAM INStAll pArtS NEEdEd HArdWArE NEEdEd SB-1,2, or 3- Swing Beam- USB-4- 1/2” USS Flatwasher- USB-5- 3/8” USS Flatwasher- USB-6- 1/2” Split Lockwasher- USB-7-3/8” Split Lockwasher- USB-8- 1/2” Hex Nut- USB-9- 3/8” Hex Nut- USB-10- 1/2” Acorn Nut Plated- USB-11- 3/8”...
  • Page 63 SWING BEAM INStAll HArdWArE NEEdEd USB-4- 1/2” USS Flatwasher- USB-6- 1/2” Split Lockwasher- USB-8- 1/2” Hex Nut- USB-10- 1/2” Acorn Nut Plated- USB-14- 1/2” x 7” Carriage Bolt- (2) USB-3- 3/4” USS FLatwasher- USB-13-1/2” x 9” Carriage Bolt- USB-13 USB-14 USB-3 USB-4 USB-6...
  • Page 64 SWING BEAM INStAll pArtS NEEdEd HArdWArE NEEdEd 5 or 6 AF-2- Crossmember- USB-4- 1/2” USS Flatwasher- USB-6- 1/2” Split Lockwasher- USB-8- 1/2” Hex Nut- USB-10- 1/2” Acorn Nut Plated- USB-14- 1/2” x 7” Carriage Bolt- (2) USB-3- 3/4” USS FLatwasher- USB-10 USB-6 Above - Place the top corner of the A-FRAME CROSS-...
  • Page 65 SWING BEAM INStAll HArdWArE NEEdEd USB-18- 3/8” x 5” Lag Bolt- USB-5- 3/8” USS Flatwasher- DH-2- 10mm x 100mm Spring Clip- DH-2 USB-18 USB-5...
  • Page 66 SWING BEAM INStAll Above- Thread the rope through the Disc Swing and tie a good knot bigger the the hole. Now tie a knot every 2 ft until the desired height is accomplished. String the rope through the Swing Beam Rope Hole and tie another knot bigger then the hole.
