Tree Frogs Toucan Fort Instruction Manual page 16

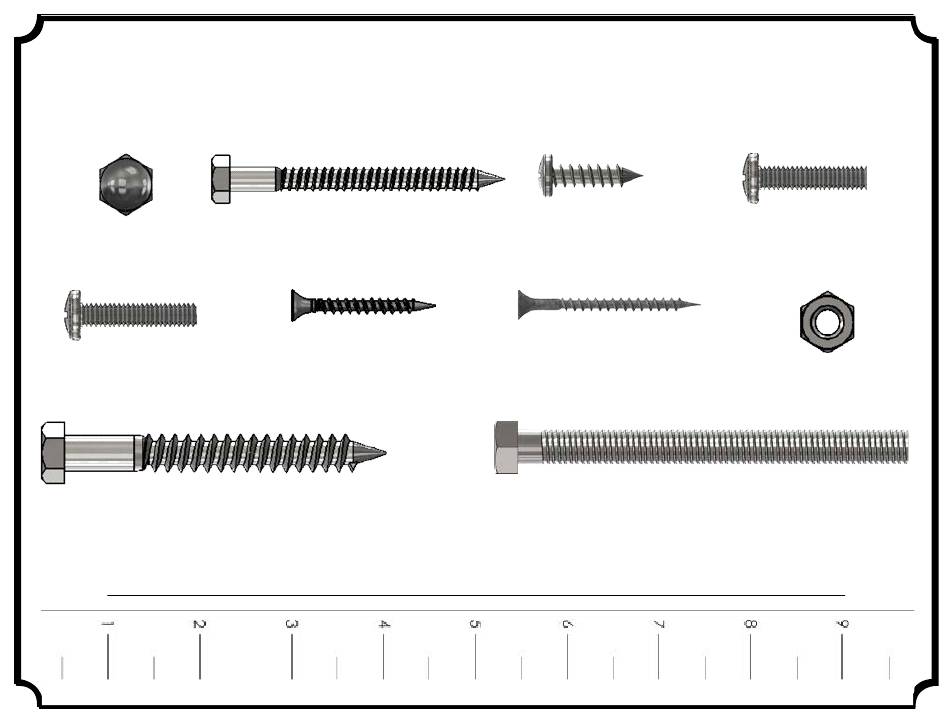

TOUCAN FORT BASE HARDWARE BAG
INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE
MANUAL TO OWNER.)
TFH-1 TFH-2 TFH-3 TFH-4
40-1-00001 40-1-00055 40-1-00069 40-1-00065
3/8" Acorn Nut Plated 1/4" x 3" Hex Lag Screw #14 x 1" Pan Phillips T/S 1/4" x 1" Pan Phillips M/S
QTY. 6 QTY. 74 QTY. 14 QTY. 4
TFH-6
TFH-5 TFH-7 TFH-8
40-1-00020
40-1-00066 40-1-00022 40-1-00026
1 5/8" Coated Deck Screw
1/4" x 1 1/4" Pan Phillips M/S 2" Coated Deck Screw 3/8" Hex Nut
QTY. 44
QTY. 3 QTY. 72 QTY. 2
TFH-9 TFH-10
40-1-00059 40-1-00119
3/8" x 3 1/2" Hex Lag Screw 3/8" x 4 1/4" Hex Bolt
QTY. 6 QTY. 4
MEASUREMENT TAKEN FROM BOTTOM OF BOLT HEAD TO THE BOTTOM OF BOLT
USE THE RULER TO MEASURE YOUR BOLTS AND SCREWS. HARDWARE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH HARDWARE SIZES.
