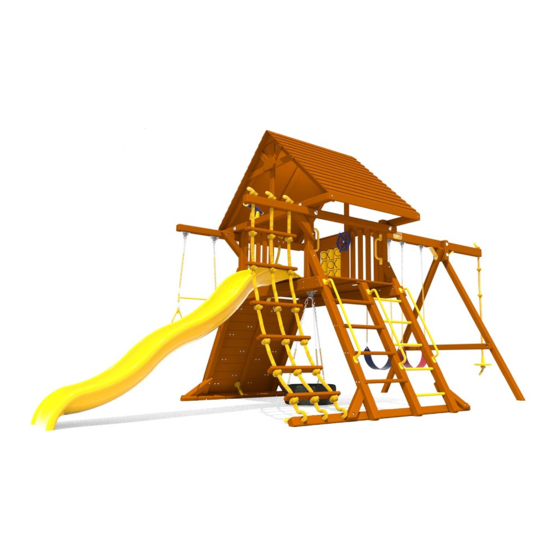

Tree Frogs PARROT ISLAND Manual
  1. Manuals
  2. Brands
  3. Tree Frogs Manuals
  4. Play Sets & Playground Equipment
  5. Parrot Island
  6. Manual

Tree Frogs PARROT ISLAND Manual

Playcenter
Hide thumbs Also See for PARROT ISLAND:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PARROT ISLAND and is the answer not in the manual?

Questions and answers

Related Manuals for Tree Frogs PARROT ISLAND

Summary of Contents for Tree Frogs PARROT ISLAND

  • Page 2: Important - Please Read

    Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this natural occurrence, please contact the Tree Frogs Swing Set Dealer that you purchased your swing set from. We appreciate your purchase and know that you will enjoy your play system for many years to come.
  • Page 3 ● Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. ●...
  • Page 4 ● Do not install this residential swing set in a commercial setting. This swing set is not manufactured for commercial usage and will void all warranties. Tree Frogs Wooden Swing Set Factory is not responsible for any damages or injuries resulting from this swing set being used in a commercial setting. ●...
  • Page 5 Rock Wall: 150 Lbs. All Slides: 125 Lbs. Tree Frogs recommends that the weight limits for all components must not be exceeded. Failure to adhere to these and other safety guidelines could result in damage to the swing set. and/or injury to the users.

  • Page 6: Consumer Information Sheet For Playground Surfacing Materials

    CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.
  • Page 7 This warranty is limited to a repair or replacement of the defective part. Product covered under this warranty will be shipped at the customer’s expense. Tree Frogs is not responsible for any expense associated with freight, or delivery and installation of the warranted part(s). Tree Frogs reserves the right to inspect all warranty claim parts for which a claim has been made.
  • Page 8 Picture Description QTY. 356-1 22” Tic Tac Toe Board 356-2 31 15/16” Rail Facia 356-3 32” Spindle 356-4 32” Tic Tac Toe Spindle 356-5 50” Center Tarp Board 356-6 56 3/4” End Tarp Board 356-7 60 1/2” Long Bottom Rail Facia...
  • Page 9 Picture Description QTY. 356-8 63” Rockwall Center Support 356-9 43 1/4” Short Deck Board 356-10 50” Deck Board 356-11 50” 1- Rock Rockwall Board 356-12 50” 2- Rock Rockwall Board 356-13 50” Blank Rockwall Board 356-14 50” Rockwall Board w/ Rope Hole...
  • Page 10 Picture Description QTY. 356-15 74 3/4” Deck Support 356-16 22” Rope Ladder Rung 356-17 75” Center Post 356-18 21 9/16” Ladder Step 356-19 83 1/8” Main Beam 356-20 11” Rope Block 356-21 19” (L) Gusset...
  • Page 11 Picture Description QTY. 356-22 19“ (R ) Gusset 356-23 39 7/16” ( R) Corner Post 356-24 39 7/16” (L) Corner Post 356-25 65” Center Pipe & Step Ladder Leg 356-26 74” Ground Runner 356-27 80” Rockwall Ladder 356-28 80” ( R) Pipe Ladder...
  • Page 12 Picture Description QTY. 356-29 80“ (L) Step Ladder 356-30 85 1/2” Rope Ladder 356-31 85 1/2” Trapeze Arm 356-32 94 1/8” Rope Ladder Runner 356-33 96” Top Joist 356-34 96” SB Top Joist 356-35 7 5/8” Center A-Frame Block...
  • Page 13 Picture Description QTY. 356-36 12 7/8” A-Frame Block 356-37 12 7/8” A-Frame Block Sinked 356-38 72” A-Frame Crossmember 356-39 113” A-Frame Leg 356-40 125” Universal Swingbeam...
  • Page 14 Picture Description QTY. 353-1 12 5/16” Short Fan Board 353-2 43 11/26” Bottom Fan Board 353-3 62” Center Wood Roof Support 353-4 10” Center Fan Board 353-5 11 5/8” Peak Facia 353-6 63 3/4” Roof Supports 353-7 56 3/4” Roof Board - Ripped...
  • Page 15 Picture Description QTY. 353-7 56 3/4” Roof Board...
  • Page 16 Picture Description QTY. 354-1 6 3/4” Short Picket - 354-2 8 3/8” Panel Board 354-3 10 1/2” Panel Board - 12 354-4 11 1/2” Panel Board 354-5 12” Right Window Shutter - 14 354-16 12” Left Window Shutter - 13 354-7 12 1/2” Panel Board...
  • Page 17 Picture Description QTY. 354-8 12 7/8”” Panel Board - 10 354-9 12 7/8”” Panel Board - 9 354-10 14 1/8” Panel Board - 5 354-11 14 1/2” Panel Board - 4 354-12 16” Window Top - 15 354-13 32” Spindle 354-14 48 5/8” Upper Support...
  • Page 18 Picture Description QTY. 354-15 6 3/4” Short Wide Picket - 18 354-16 5 15/16” Panel Board - 1 354-17 19 7/8” Panel Board - 6 354-18 24 9/16” Panel Board - 7 354-19 28” Panel Board - 11 354-20 32” Panel Spindle - 16...
  • Page 20 KSI-356-HWR BAG BASE HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) A-1 A-2 A-3 3/8” Acorn Nut Plated 3/8” x 3” Carriage Bolt ZP 3/8” x 1 1/2” Hex Bolt ZP QTY 22 QTY 2 QTY 2 A-8 A-9 A-4 1/2” USS Flatwasher ZP 3/8” Bolt Cup 3/8” x 5 Hex Bolt ZP QTY 2 QTY 12 QTY 4...
  • Page 21 KSI-356-HWR BAG BASE HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) #8 x 2” Coated Deck Screw M8x80 #2 & #3 3/8” Hex Nut ZP QTY 62 QTY 5 QTY 1 QTY 12 1/4 x 3” Hex Lag Screw ZPQTY 20 #8 x 1-1/2” Coated Deck Screw QTY 110 1/4 x 4-1/2” Hex Lag Screw ZP #8 x 2” Coated Deck Screw QTY 20 QTY 62 3/8” x 3 1/2” Hex Lag Screw ZP 3/8 x 5”...
  • Page 22 KSI-356-HWR BAG BASE HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) 1/4” X 7/16” 4 Prong Tee Nut ZP 3/8 x 7/16” 4 Prong Tee Nut ZP 3/8 Split Lockwasher ZP 1/4 USS Flatwasher ZP QTY 27 QTY 10 QTY 14 QTY 93 3/8 USS Flatwasher ZP 5/8” Phillips Screw Snap QTY 59 QTY 9 MEASUREMENT TAKEN FROM BOTTOM OF BOLT HEAD TO THE BOTTOM OF BOLT USE A TAPE MEASURE OR RULER TO MEASURE YOUR BOLTS AND SCREWS.
  • Page 23 356-SB-HWR -SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-3 SB-6 SB-1 SB-2 1/2” x 3-1/2” Carriage Bolt ZP 3/8” Hex Nut ZP 3/8” Acorn Nut Plated 1/2” Acorn Nut Plated QTY 2 QTY 2 QTY 10 QTY 9 SB-4 SB-7 1/2” x 7” Carriage Bolt ZP 1/2” Hex Nut ZP QTY 5 QTY 9 SB-5 1/2” x 9” Carriage Bolt ZP QTY 1 MEASUREMENT TAKEN FROM BOTTOM OF BOLT HEAD TO THE BOTTOM OF BOLT USE A TAPE MEASURE OR RULER TO MEASURE YOUR BOLTS AND SCREWS.
  • Page 24 356-SB-HWR-SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-8 3/8” x 7” Hex Bolt ZP QTY 8 SB-9 3/8” x 10” Hex Bolt ZP - 6” of Thread QTY 2 SB-10 1/2” x 11-1/2” Hex Bolt ZP w/6” of Thread QTY 1 SB-11 SB-12 3/8” x 3 1/2” Hex Lag Screw ZP 3/8” x 5” Hex Lag Screw ZP QTY 2 QTY 2 MEASUREMENT TAKEN FROM BOTTOM OF BOLT HEAD TO THE BOTTOM OF BOLT USE A TAPE MEASURE OR RULER TO MEASURE YOUR BOLTS AND SCREWS.
  • Page 25 356-SB-HWR-SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-13 SB-14 SB-15 SB-16 3/8” Nylon Insert Locknut NE ZP #14 x 1” Pan Phillips T/S ZP 3/8” Split Lockwasher ZP 1/2” Split Lockwasher ZP QTY 8 QTY 2 QTY 10 QTY 9 SB-20 SB-21 SB-17 SB-19 3/8” USS Flatwasher ZP 3/4” USS Flatwasher ZP 3/8”...
  • Page 26 353-HWR-WOOD ROOF HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) WR-1 WR-2 WR-3 #8 x 1-1/4” Coated Deck Screw #8 x 1-1/2” Coated Deck Screw #8 x 2” Coated Deck Screw QTY 30 QTY 152 QTY 6 WR-6 WR-4 WR-5 3/8 USS Flatwasher ZP #8 x 2-1/2” Coated Deck Screw 3/8” x 3 1/2” Hex Lag Screw ZP QTY 4 QTY 10 QTY 4 WR-7 #2 & #3 QTY 1 MEASUREMENT TAKEN FROM BOTTOM OF BOLT HEAD TO THE BOTTOM OF BOLT USE A TAPE MEASURE OR RULER TO MEASURE YOUR BOLTS AND SCREWS.
  • Page 27 354-HWR-TREE HOUSE HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) TH-1 TH-2 #8 x 1-1/2” Coated Deck Screw #2 & #3 QTY 328 QTY 1 MEASUREMENT TAKEN FROM BOTTOM OF BOLT HEAD TO THE BOTTOM OF BOLT USE A TAPE MEASURE OR RULER TO MEASURE YOUR BOLTS AND SCREWS. HARDWARE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH HARDWARE SIZES.
  • Page 28 Picture Description QTY. 356-A 90 Degree Bracket 356-B 120° Bracket 356-C Swing Beam Tri Plate 356-D Swingbeam 45 Degree Bracket 356-E 1-1/4” x 22 1/4” PlayGrip Tube 356-F PlayGrip Safety Handle 356-G PlayGrip Ladder Handle...
  • Page 29 Picture QTY. Description 356-H 14’ Yellow Rope w/ Rope Caps 356-I 17’ Yellow Rope w/ Rope Caps 356-J 16” Trapeze Bar w/ Rings 356-K 36” Plastisol Coated Chain 356-L Disk Swing 356-M Tic Tac Toe Set 356-N Ductile Iron Swing Hanger...
  • Page 30 Picture Description QTY. 356-O Tire Swing Eye Bolt 356-P Bull Ring Tire Swivel 356-Q 66” Chained Belt Swing 356-R Rockwall Rocks 356-S Ships’ Wheel 356-T Telescope 356-U Spiral Ground Anchor...

  • Page 31: Parts Needed

    Pipe/ Step Ladder Assembly PARTS NEEDED HARDWARE NEEDED 356-29- 80” (L) Step Ladder Leg- G- 1/4” x 4 1/2” Hex Lag Screw- (16) 356-18- 21 9/16” Ladder Step- Q- 1/4” USS Flatwasher- (16) 356-25- 65” Center Pipe & Step Ladder Leg- M- 2” Metal Tap Screw- 356-E- 1 1/4” x 22 1/4” Playgrip Tube- 356-28- 80” (R) Pipe Ladder Leg-...
  • Page 32 Pipe/ Step Ladder Assembly PARTS NEEDED HARDWARE NEEDED 356-32- 94 1/8” Rope Ladder Runner- I- 3/8” x 5” Hex Lag Screw- 356-21- (L) Gusset- R- 3/8” USS Flatwasher- 356-22- (R) Gusset- H- 3/8” x 3 1/2” Hex Lag Screw-...
  • Page 33 Pipe/ Step Ladder Assembly Rockwall Board Assemlbies PARTS NEEDED HARDWARE NEEDED 356-G- Playgrip Ladder Handle- K- #14 x 2” Pan Phillips T/S- 356-14- 50” Rockwall Board w/ Rope Hole- Q- 1/4” USS Flatwasher- (30) 356-11- 50” 1- Rock Rockwall Board- L- 1/4” x 1 1/4” Pan Phillips M/S- (24) 356-12- 50” 2- Hole Rockwall Board- N- 1/4” T-Nut- (24)
  • Page 34 Rockwall Assembly PARTS NEEDED HARDWARE NEEDED 356-27- 80” Rockwall Ladder Leg- D- 2 1 /2” Coated Deck Screw- (48) 356-11- 50” 1- Rock Rockwall Board- I- 3/8” x 5” Hex Lag Screw- 356-12- 50” 2- Rock Rockwall Board- R- 3/8” USS Flatwasher- 356-13- 50” Blank Rockwall Board- 356-14- 50” Rockwall Board w/ Rope Hole- 356-26- 74” Ground Runner-...
  • Page 35 Rockwall Assembly PARTS NEEDED HARDWARE NEEDED 356-21- 19” Left Gusset- H- 3/8” x 3 1/2” Hex Lag Screw- 356-22- 19” Right Gusset- R- 3/8” USS Flatwasher- 356-8- 63” Rockwall Support- B- 1 1/2” Coated Deck Screw- (24)

  • Page 36: A-Frame Assembly

    A-Frame Assembly PARTS NEEDED HARDWARE NEEDED 356-35- 7 5/8” Center A-Frame Block- SB-9- 3/8” x 9” Hex Bolt- (1) SB-20- 3/8” Bolt Cup- 356-36- 12 7/8” A-Frame Block- SB-17- 3/8” USS Flatwasher- (9) SB-6- 3/8” Hex Nut- 356-37- 12 7/8” A-Frame Block Sinked- SB-1- 3/8” Acorn Nut Plated- (9) SB-8- 3/8” x 7” Hex Bolt- 356-40- 125” Universal Swingbeam- SB-13- 3/8” Nylon Insert Locknut-...
  • Page 37 A-Frame Assembly PARTS NEEDED HARDWARE NEEDED Beam Assembly- SB-9- 3/8” x 9” Hex Lag Screw- (1) SB-20- 3/8” Bolt Cup- Block Assembly- SB-17- 3/8” USS Flatwasher- (1) SB-15- 3/8” Split Lockwasher- 356-39- 113” A-Frame Ladder Leg- SB-6- 3/8” Hex Nut- (1) SB-1- 3/8” Acorn Nut Plated- 356-D- Swingbeam 45 Degree Bracket- SB-10- 1/2” x 10 1/2” Hex Bolt- (1) SB-18- 1/2” USS Flatwasher- SB-16- 1/2” Split Lockwasher- (1) SB-2- 1/2” Acorn Nut Plated-...
  • Page 38 A-Frame Assembly Tire Swing Assembly PARTS NEEDED HARDWARE NEEDED 356-K- 36” Plastisol Coated Chain- SB-4- 1/2” x 7” Carriage Bolt- (2) SB-19- 3/4” USS Flatwasher- 356-O- Tire Swing Eye Bolt- SB-18- 1/2” USS Flatwasher- (2) SB-16- 1/2” Split Lockwasher- Tire- SB-7- 1/2” Hex Nut- (2) SB-2- 1/2” Acorn Nut Plated-...
  • Page 39 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-19- 83 1/8” Main Beam- A-5- 3/8” x 6” Hex Bolt- (4) R- 3/8” USS Flatwasher- O- 3/8” T-Nut- (4) A-1- 3/8” Acorn Nut Plated- Q- 1/4” USS Flatwasher- (8) F- 1/4” x 3” Hex Lag Screw-...
  • Page 40 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-9- 43 1/*4” Short Deck Board- R- 3/8” USS Flatwasher- I- 3/8” x 5” Hex Lag Screw- C- 2” Coated Deck Screw- (16)
  • Page 41 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-10- 50” Deck Board- (10) C- 2” Coated Deck Screw- (40) 356-15- 74 3/4” Deck Support- Q- 1/4” USS Flatwasher- 356-B- 120 Degree Bracket- J- #14 x 1” Pan Phillips T/S- B- 1 1/2” Coated Deck Screw- (28)
  • Page 42 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-33- 96” Top Joist- A-6- 3/8” x 6 1/2” Hex Bolt- (4) A-9- 3/8” Bolt Cup- 356-34- 96” SB Top Joist- R- 3/8” USS Flatwasher- (4) P- 3/8” Split Lockwasher- 356-30- 85 1/2” Rope Ladder Arm- E- 3/8” Hex Nut- (4) A-1- 3/8” Acorn Nut Plated- 356-31- 85 1/2” Trapeze Arm-...
  • Page 43 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-7- 60 1/2” Long Bottom Rail Facia- Q- 1/4” USS Flatwasher- (2) F- 1/4” x 3” Hex Lag Screw- 356-17- 75” Center Post- O- 3/8” T-Nut- (1) R- 3/8” USS Flatwasher- A-3- 3/8” x 1 1/2” Hex Bolt- (1) H- 3/8” x 3 1/2” Hex Lag Screw-...
  • Page 44 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-2- 31 15/16” Rail Facia- Q- 1/4” USS Flatwasher- (1) F- 1/4” x 3” Hex Lag Screw- 356-17- 75” Center Post- O- 3/8” T-Nut- (1) R- 3/8” USS Flatwasher- A-3- 3/8” x 1 1/2” Hex Bolt- (1) H- 3/8” x 3 1/2” Hex Lag Screw-...
  • Page 45 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-C- Swing Beam Tri-Plate- SB-3- 1/2” x 3” Carriage Bolt- (2) SB-19- 3/4” USS Flatwasher- A-Frame Assembly- SB-18- 1/2” USS Flatwasher- (4) SB-16- 1/2” Split Lockwasher- SB-7- 1/2” Hex Nut- (4) SB-2- 1/2” Acorn Nut Plated- SB-5- 1/2” x 9” Carriage Bolt- (1) SB-4- 1/2” x 6 1/2” Carriage Bolt- PLACE A-FRAME ON THE SB TOP JOIST AND SQUEEZE THE LEGS TOGETHER UNTIL LEVEL...
  • Page 46 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-38- 72” A-Frame Crossmember- SB-17- 3/8” USS FLatwasher- (2) SB-12- 3/8” x 5” Hex Lag Screw- SB-4- 1/2” x 7” Carriage Bolt- (2) SB-19- 3/4” USS Flatwasher- SB-18- 1/2” USS Flatwasher- (2) SB-16- 1/2 Split Lockwasher- SB-7- 1/2” Hex Nut- (2) SB-2- 1/2” Acorn Nut Plated- AFTER ATTACHING AND LEVELING THE A-FRAME LOCK IN PLACE AS SHOWN LEVEL CROSSMEMBER ACROSS THE A-FRAME LEGS AND MARK HOLES UNING A 9/16” DRILL BIT DRILL OUT HOLES AND ASSEMBLE AS SHOWN...
  • Page 47 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-Q- 66” Chained Belt Swing- SB-21- 8 x 80mm Spring Clip- 356-H- 14’ Yellow Rope- 356-L- Disc Swing- SLIP THE ROPE THROUGH THE SWINGBEAM AND TIE A KNOT. THEN TIE A KNOT EVERY 2 TO 3 FEET. PLACE THE 356-L DISC SWING ON THE ROPE AND TIE A DOUBLE KNOT SECURING IT TO THE ROPE.
  • Page 48 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-I- 17’ Yellow Rope w/ Caps- A-4- 3/8” x 5” Hex Bolt- (4) A-9- 3/8” Bolt Cup- 356-16- 22” Rope Ladder Rung- R- 3/8” USS Flatwasher- (4) P- 3/8” Split Lockwasher- 356-N- Ductile Iron Swing Hanger- A-7- 3/8” Nylon Insert Locknut- (4) A-1- 3/8” Acorn Nut Plated- SLIDE ONE END OF ROPE THROUGH THE UPPER ROPE ARM AND TIE A GOOD KNOT. THEN TAKE A 356-16 AND SLIDE IT UP ABOUT A 1 TO 1 1/2 FT BELOW THE ROPE ARM AND TIE KNOT HOLDING IT. REPEAT FOR ALL 356-16’S AND TIE A KNOT ON THE ROPE RUNNER.
  • Page 49 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-J- 16” Trapeze Bar w/ Rings- A-10- 8 x 80mm Spring Clip- 356-F- Playgrip Safety Handles- K- #14 x 2” Pan Phillips T/S- Q- 1/4” USS Flatwasher-...
  • Page 50 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-A- 90 Degree Bracket- Q- 1/4” USS Flatwasher- Slide- J- #14 x 1” Pan Phillips T/S- L- 1/4” x 1 1/4” Pan Phillips M/S- N- 1/4” T-Nut- PLACE THE SLIDE ON THE DECK AND MARK HOLES TO BE DRILLED. THEN USING A 5/16” DRILL BIT, DRILL OUT THE MARKED LOCATIONS FOR THE HOLES. PLACE THE SLIDE BACK ON AND MOUNT AS SHOWN...
  • Page 51 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-S- 12” Ships’ Wheel- (Hardware with Accessories) 356-T- Telescope- PLACE THE TELESCOPE BETWEEN THE CENTER POST AND THE CORNER POST...
  • Page 52 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-P- Bull Ring Tire Swivel- A-2- 3/8” x 3” Carriage Bolt- (2) A-8- 1/2” USS Flatwasher- Tire Assembly- R- 3/8” USS Flatwasher- (2) P- 3/8” Split Lockwasher- E- 3/8” Hex Nut- (2) A-1- 3/8” Acorn Nut Plated- A-10- 8 x 80mm Spring Clip- FIND THE CENTER OF THE DECK AND MARK THE HOLES TO BE DRILLED USING A 9/16” BIT DRILL THROUGH THE DECK ON THE MARKED HOLES...
  • Page 53 Main Assembly PARTS NEEDED HARDWARE NEEDED 356-20- 11” Rope Block- R- 3/8” USS Flatwasher- 356-H- 14’ Yellow Rope- I- 3/8” x 5” Hex Lag Screw- SLIP THE 356-H THROUGH THE ROPE BLOCK AND TIE A KNOT SECURING IT. TIE A COUPLE KNOTS AS YOU WORK YOUR WAY DOWN THE ROCKWALL. SLIP THE 356-H THROUGHT THE ROCKWALL BOARD W/ ROPE HOLE AND TIE A KNOT OR 2 SECURING IT.
  • Page 54 Main Assemlby PARTS NEEDED HARDWARE NEEDED 356-21- 19” (L) Gusset- R- 3/8” USS Flatwasher- 356-22- 19” (R) Gusset- H- 3/8” x 3 1/2” Hex Lag Screw- 356-U- Spiral Ground Anchors-...
  • Page 55 Tarp Install PARTS NEEDED HARDWARE NEEDED 357-5- 50” Center Tarp Board- G- 1/4” x 4 1/2” Hex Lag Screw- 357-6- 56 3/4” End Tarp Board- (2) Q- 1/4” USS Flatwasher- B- 2 1/2” Coated Deck Screw- PLACE TARP OVER THE UNIT AND MARK THE LOCATION OF THE TARP SNAPS SCREW THE 5/8” PHILLIPS SCREW SNAPS IN AT THE MARKED LOCATIONS...
  • Page 56 Finshed Tarp Assembly...
  • Page 57 Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED 353-1- 12 5/16” Shor Fan Board- WR-2- 1 1/2” Coated Deck Screw- (20) 353-2- 43 11/16” Bottom Fan Board- Q- 1/4” USS Flatwasher- 353-4- 10” Center Fan Board- G- 1/4” x 4 1/2” Hex Lag Screw- 356-6- 56 3/4” Enhd Tarp Board- MAKE 2 FAN ASSEMBLIES...
  • Page 58 Wood Roof Install PARTS NEEDED HARDWARE NEEDED 353-6- 56 3/4” Roof Supports- WR-5- 3/8” x 3 1/2” Hex Lag Screw- 353-5- 11 5/8” Peak Facia- WR-6- 3/8” USS Flatwasher- WR-4- 2 1/2” Coated Deck Screw- WR-3- 2” Coated Deck Screw- REPEAT FOR BOTH SIDES OF THE WOOD ROOF...
  • Page 59 Wood Roof Install PARTS NEEDED HARDWARE NEEDED 353-8- 56 3/4” Roof Board- (10) WR-2- 1 1/2” Coated Deck Screw- (40) 353-3- 62” Center Wood Roof Support- WR-1- 1 1/4” Coated Deck Screw- (10) REPEAT FOR BOTH SIDES OF THE WOOD ROOF. WOOD ROOF BOARDS OVERHANG REPEAT FOR BOTH SIDES OF THE WOOD ROOF SUPPORTS BY 3 3/8”.
  • Page 60 Wood Roof Install PARTS NEEDED HARDWARE NEEDED 353-8- 56 3/4” Roof Board- (16) WR-2- 1 1/2” Coated Deck Screw- (72) 353-7- 56 3/4” Roof Board Ripped- WR-1- 1 1/4” Coated Deck Screw- (18) REPEAT FOR BOTH SIDES OF THE WOOD ROOF REPEAT FOR BOTH SIDES OF THE WOOD ROOF...
  • Page 61 Wood Roof Install PARTS NEEDED HARDWARE NEEDED Fan Assembly- WR-2- 1 1/2” Coated Deck Screw- (16) WR-4- 2 1/2” Coated Deck screw- FINSHED WOOD ROOF ASSEMBLY. RAIL OPTIONS ARE NEXT. FOR TREEHOUSE PANELS SKIP THE OPEN AIR OPTION AND GO TO THE FILLED PANEL OPTION.
  • Page 62 Tic Tac Toe Assembly (Works for both Open Air and Filled Panel Install) PARTS NEEDED HARDWARE NEEDED 356-1- 22” Tic Tac Toe Board- B- 1 1/2” Coated Deck Screw- 356-M- Tic Tac Toe- 356-4- 32” Tic Tac Toe Spindle-...
  • Page 63 Open Rail Install (Skip for Treehouse Rail Install) PARTS NEEDED HARDWARE NEEDED 356-3- 32” Rail Spindle- B- 1 1/2” Coated Deck Screw- (32) RAILS ARE 2 1/2” APART STARTING FROM THE CORNER POST RAILS ARE 2 1/2” APART STARTING FROM THE CORNER POST...
  • Page 64 Open Rail Install (Installation Complete) PARTS NEEDED HARDWARE NEEDED Tic Tac Toe Assembly- B- 1 1/2” Coated Deck Screw- FINISHED TARP ASSEMBLY WITH OPEN AIR RAILS FINISHED WOOD ROOF ASSEMBLY WITH OPEN AIR RAILS...
  • Page 65 Treehouse Panel Rail Option PARTS NEEDED HARDWARE NEEDED Tic Tac Toe Assembly- B- 1 1/2” Coated Deck Screw- 354-15- 6 3/4” Short Wide Picket-18- TH-1- 1 1/2” Coated Deck Screw- (40) 354-1- 6 3/4” Short Picket-17-...
  • Page 66 Treehouse Panel Rail Option PARTS NEEDED HARDWARE NEEDED 354-13- 32” Rail Spindle- B- 1 1/2” Coated Deck screw- (32) 354-20- 32” Panel Spindle- TH-1- 1 1/2” Coated Deck Screw- (24) 356-3- 32” Rail Spindle-...
  • Page 67 Treehouse Panel Install (REPEAT FOR BOTH SIDES OF UNIT) PARTS NEEDED HARDWARE NEEDED 354-19- 28” Panel Board 11- TH-1- 1 1/2” Coated Deck Screw- (24) 354-8- 6 3/4” Panel Board 10-...
  • Page 68 Treehouse Panel Install (REPEAT FOR BOTH SIDES OF UNIT) PARTS NEEDED HARDWARE NEEDED 354-9- 12 7/8” Panel Board-9 TH-1- 1 1/2” Coated Deck Screw- (16) 354-12- 16” Window Top-...
  • Page 69 Treehouse Panel Install (REPEAT FOR BOTH SIDES OF UNIT) PARTS NEEDED HARDWARE NEEDED 354-7- 12 1/2” Panel Board-8- TH-1- 1 1/2” Coated Deck Screw- (24) 354-18- 24 9/16” Panel Board-7-...
  • Page 70 Treehouse Panel Install (REPEAT FOR BOTH SIDES OF UNIT) PARTS NEEDED HARDWARE NEEDED 354-17- 19 7/8” Panel Board-6- TH-1- 1 1/2” Coated Deck Screw- (16) 354-11- 14 1/2” Panel Board-4-...
  • Page 71 Treehouse Panel Install (REPEAT FOR BOTH SIDES OF UNIT) PARTS NEEDED HARDWARE NEEDED 354-3- 10 1/2” Panel Board-12- TH-1- 1 1/2” Coated Deck Screw- (24) 354-4- 11 1/2” Panel Board-3-...
  • Page 72 Treehouse Panel Install (REPEAT FOR BOTH SIDES OF UNIT) PARTS NEEDED HARDWARE NEEDED 354-2- 8 3/8” Panel Board-2- TH-1- 1 1/2” Coated Deck Screw- (16) 354-16- 5 15/16” Panel Board-1-...
  • Page 73 Treehouse Panel Install (REPEAT FOR BOTH SIDES OF UNIT) PARTS NEEDED HARDWARE NEEDED 354-10- 14 1/8” Panel Board-10- TH-1- 1 1/2” Coated Deck Screw- (88) 354-14- 48 5/8” Upper Support-...
  • Page 74 Treehouse Panel Install (REPEAT FOR BOTH SIDES OF UNIT) PARTS NEEDED HARDWARE NEEDED 354-6- 12” Left Window Shutter- TH-1- 1 1/2” Coated Deck Screw- (16) 354-5- 12” Right Window Shutter-...
