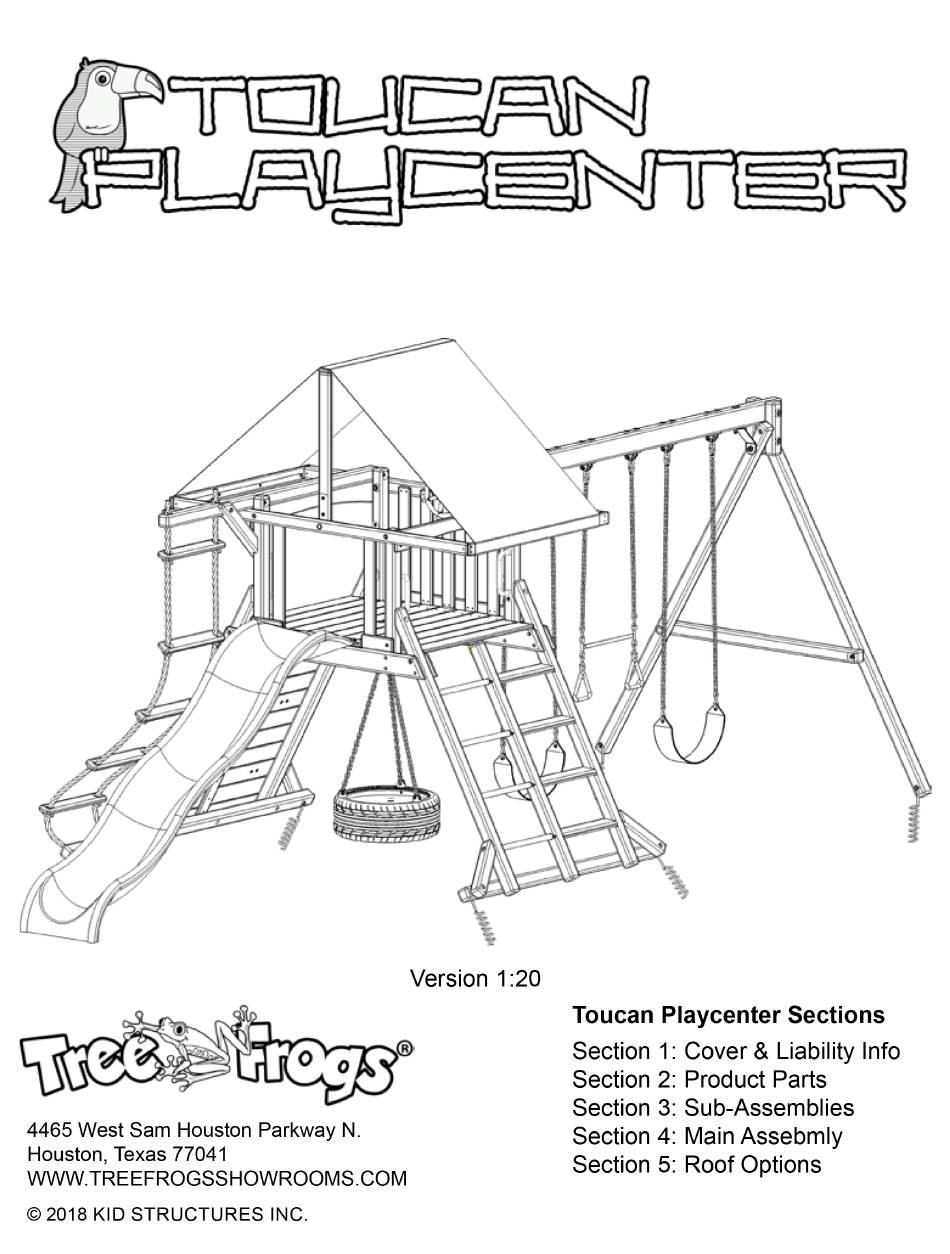

Tree Frogs Toucan Playcenter Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Toucan Playcenter and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tree Frogs Toucan Playcenter

Summary of Contents for Tree Frogs Toucan Playcenter

  • Page 2: Important - Please Read

    Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this natural occurrence, please contact the Tree Frogs Swing Set Dealer that you purchased your swing set from. We appreciate your purchase and know that you will enjoy your play system for many years to come.
  • Page 3 ● Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. ●...
  • Page 4 ● Be sure that the sealant you select is non-toxic and child safe. Your local Tree Frogs Wooden Swing Set Factory dealer may offer a complete power wash and reseal and maintenance program.
  • Page 5 Rock Wall: 150 Lbs. All Slides: 125 Lbs. Tree Frogs recommends that the weight limits for all components must not be exceeded. Failure to adhere to these and other safety guidelines could result in damage to the swing set. and/or injury to the users.
  • Page 6 CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.
  • Page 7 And for a period of 1-Year Tree Frogs warranties all ropes, structural foam molded slides to be free of defects in material and workmanship. Fading is not considered a defect and may occur with seasonal and geographical conditions.
  • Page 8 Picture Description QTY. 251-1 52 1/2” End Tarp Board (CC-004) 251-2 48” Slim Deck Board 251-3 9 1/2” Front Rail Bottom 251-4 28” Rail Picket 251-5 44” Back Bottom Picket Support 251-6 48” Slim Rockwall Board 251-7 48” Center Tarp Board...
  • Page 9 Picture Description QTY. 251-8 59” Rockwall Support (CC-043) 251-9 42” End Deck Board 251-10 48” 1- Rock Rockwall Board 251-11 48” 2- Rock Rockwall Board 251-12 48” Blank Rockwall Board (CC-073) 251-13 48” Large Deck Board 251-14 48” Side Arch Facia...
  • Page 10 Picture Description QTY. 251-15 55 1/4” Deck Support 251-16 91 1/2” Front Top Joist 251-17 22” Rope Ladder Rung 251-18 38 7/8” Front Center Post 251-19 64 3/4” Center Post 251-20 20 1/2” Ladder Step 251-21 64 1/8” T-Nut Mainbeam...
  • Page 11 Picture Description QTY. 251-22 64 1/8” Mainbeam (CC-240) 251-23 7 7/8” Small A-Frame Block (CC-243) 251-24 13 3/8” A-Frame Block (CC-244) 251-25 13 3/8” A-Frame Block Sunk 251-26 16” Left Gusset 251-27 16” Right Gusset 251-28 22” Rope Ladder Gusset...
  • Page 12 Picture Description QTY. 251-29 35” Back Corner Post 251-30 35” Front Corner Post 251-31 38” Back Rope Ladder Corner Post 251-32 38” Front Rope Ladder Corner Post 251-33 61 9/16” Center Pipe/ Ladder Leg (CC-154) 251-34 60” A-Frame Crossmember 251-35 72 5/8”...
  • Page 13 Picture Description QTY. 251-36 74 1/4” (L) Pipe Ladder Leg 251-37 74 1/4” (R) Step Ladder Leg 251-38 74 1/4” Rockwall Leg 251-39 80 3/16” Upper Rope 251-40 91 1/2” Swingbeam Top Joist 251-41 92 3/16” Rope Ladder Runner (CC-150) 251-42 100”...
  • Page 14 Picture Description QTY. (CC-247) 251-43 119” Swingbeam...
  • Page 15 Picture Description QTY. 558-1 10 7/16” Fan Board #1 558-2 40 3/16” Fan Bottom 558-3 50 3/4” Center Tarp Board 558-4 56 1/2” Center Support 558-5 50 3/4” End Wood Roof Board 558-6 10” Fan Plate 558-7 50 3/4” Wood Roof Board...
  • Page 16 Picture Description QTY. 558-8 58 3/4” Wood Roof Support...
  • Page 17 251-HWR-BAG-TOUCAN PLAYCENTER BASE HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) 3/8” Acorn Nut Plated 3/8” x 3” Carriage Bolt 3/8” Hex Nut 3/8” T-Nut QTY. 11 QTY. 3 QTY.
  • Page 18 251-HWR-BAG-TOUCAN PLAYCENTER BASE HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) Bag E Bag F 1/4” x 3” Hex Lag Screw 1/4” x 4 1/2” Hex Lag Screw QTY.
  • Page 19 KSI-251- SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-1 SB-2 SB-3 3/8” Acorn Nut Plated 1/2” Acorn Nut Plated 1/2” x 3” Carriage Bolt QTY. 14 QTY.
  • Page 20 KSI-251- SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-6 SB-7 SB-11 3/8” Hex Nut 1/2” Hex Nut 3/8” x 5” Hex Lag QTY. 2 QTY. 8 QTY.
  • Page 21 KSI-251- SWINGBEAM HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) SB-12 SB-13 SB-14 SB-15 SB-16 3/8” Nylon Insert Locknut #14 x 1” Pan Phillips T/S 3/8” Split Lockwasher Split Lockwasher 3/8”...
  • Page 22 KSI-558-HWR-TOUCAN PLAYCENTER WOOD ROOF HARDWARE INSTALLER NOTE: (YOU MUST ASSEMBLE THIS PRODUCT IN ACCORDANCE WITH THESE ASSEMBLY INSTRUCTIONS. WHEN COMPLETE GIVE MANUAL TO OWNER.) 3/8” Acorn Nut Plated 3/8” x 3” Carrigae Bolt 1 1/2” Coated Deck Screw 2” Coated Deck Screw QTY.
  • Page 23 Picture Description QTY. 251-A 90 Degree Bracket 251-B 120 Degree Bracket 251-C Swingbeam Tri-Plate 251-D T-Bracket 251-E 45 Degree Swingbeam Bracket 251-F 22 1/2” Playgrip Tube 251-G Playgrip Safety Handle...
  • Page 24 Picture Description QTY. 251-H 15’ Yellow Rope 251-I 16” Trapeze Bar 251-J 36” Plastisol Coated Chain 251-K Ductile Iron Swing Hanger 251-L Tire Swing Eye Bolt 251-M Bull Ring Tire Swivel 251-N Spiral Ground Anchor...
  • Page 25 Picture Description QTY. 251-O 56” Chained Belt Swing 251-P Rockwall Rocks 251-Q Telescope 251-R 12” Ships’ Wheel...

  • Page 26: Parts Needed

    Step/ Pipe Ladder Assembly PARTS NEEDED HARDWARE NEEDED 251-37- 74 1/4” (R) Step Ladder Leg- F- 1/4” x 4 1/2” Hex Lag Screw- (16) 251-20- 20 1/2” Ladder Step- N- 1/4” USS Flatwasher- (16) 251-33- 61 9/16” Center Pipe/ Ladder Leg- L- 2”...
  • Page 27 Step/ Pipe Ladder Install PARTS NEEDED HARDWARE NEEDED 251-35- 72 5/8” Ground Runner- H- 3/8” x 5” Hex Lag Screw- 251-27- 16” Right Gusset- O- 3/8” USS Flatwasher- 251-26- 16” Left Gusset-...
  • Page 28 Rockwall Board Assembly Rockwall Assembly PARTS NEEDED HARDWARE NEEDED 251-10- 48” 1- Rock Rockwall Board- K- 1/4” x 1 1/4” Pan Phillips M/S- (20) 251-11- 48” 2- Rock Rockwall Board- N- 1/4” USS Flatwasher- (20) 251-12- 48” Blank Rockwall Board- M- 1/4”...
  • Page 29 Rockwall Assembly PARTS NEEDED HARDWARE NEEDED 251-8- 59” Rockwall Support- B- 1 5/8” Coated Deck Screw- (12) 251-41- 92 3/16” Rope Ladder Runner- H- 3/8” x 5” Hex Lag Screw- O- 3/8” USS Flatwasher-...
  • Page 30 Rockwall Assembly A-Frame Block Assembly PARTS NEEDED HARDWARE NEEDED 251-26- 16” Left Gusset- H- 3/8” x 5” Hex Lag Screw- O- 3/8” USS Flatwasher- 251-27- 16” Right Gusset- SB-9- 3/8” x 9” Hex Bolt- SB-19- 3/8” Bolt Cup- 251-23- 7 7/8” Small A-Frame Block- SB-16- 3/8”...

  • Page 31: Beam Assembly

    Beam Assembly A-Frame Assembly PARTS NEEDED HARDWARE NEEDED 251-43- 119” Swingbeam- SB-8- 3/8” x 6 1/2” Hex Bolt- (12) SB-9- 3/8” x 9” Hex Bolt- 251-K- Ductile Iron Swing Hanger- SB-19- 3/8” Bolt Cup- (13) SB-16- 3/8” USS Flatwasher- (13) Beam Assembly- SB-14- 3/8”...

  • Page 32: Main Assembly

    A-Frame Assembly Main Assembly PARTS NEEDED HARDWARE NEEDED 251-42- 100” A-Frame Leg- SB-10- 1/2” x 10 1/2” Hex Bolt- SB-4- 1/2” x 6 1/2” Carriage Bolt- 251-E- 45 Degree Swingbeam Bracket- SB-17- 1/2” USS Flatwasher- SB-15- 1/2” Split Lockwasher- 251-23- 64 1/8” T-Nut Mainbeam- SB-18- 3/4”...
  • Page 33 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-29- 35” Back Corner Post- N- 1/4” USS Flatwasher- (24) 251-30- 35” Front Corner Post- E- 1/4” x 3” Hex Lag Screw- (24) 251-31- 38” Back Rope Ladder Corner Post- 251-32- 38” Front Rope Ladder Corner Post-...
  • Page 34 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-9- 42” End Deck Board- G- 3/8” x 3 1/2” Hex Lag Screw- O- 3/8” USS Flatwasher- C- 2” Coated Deck Screw- (16)
  • Page 35 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-13- 48” Large Deck Board- C- 2” Coated Deck Screw- (28) 251-15- 55 1/4” Deck Support- B- 1 5/8” Coated Deck Screw- (11)
  • Page 36 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-B- 120 Degree Bracket- N- 1/4” USS Flatwasher- I- #14 x 1” Pan Phillips T/S- 251-40- 91 1/2” Swingbeam Top Joist- A-4- 3/8” x 6” Hex Bolt- A-8- 3/8” Bolt Cup- O- 3/8” USS Flatwasher- A-6- 3/8”...
  • Page 37 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-39- 80 3/16” Upper Rope Arm- A-4- 3/8” x 6” Hex Bolt- A-8- 3/8” Bolt Cup- 251-16- 91 1/2” Front Top Joist- O- 3/8” USS Flatwasher- A-6- 3/8” Split Lockwasher- A-3- 3/8” Hex Nut- A-1- 3/8”...
  • Page 38 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-14- 48” Side Arch Facia- N- 1/4” USS Flatwasher- (10) 251-5- 44” Back Bottom Picket Support- E- 1/4” x 3” Hex Lag Screw- (10)
  • Page 39 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-3- 9 1/2” Front Rail Bottom- N- 1/4” USS Flatwasher- E- 1/4” x 3” Hex Lag Screw- 251-18- 38 7/8” Front Center Post- I- #14 x 1” Pan Phillips T/S- A-2- 3/8” x 3” Carriage Bolt- 251-D- T-Bracket- A-7- 1/2”...
  • Page 40 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-19- 64 3/4” Center Post- O- 3/8” USS Flatwasher- G- 3/8” x 3 1/2” Hex Lag Screw- C- 2” Coated Deck Screw- B- 1 5/8” Cooated Deck Screw-...
  • Page 41 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-4- 28” Rail Picket- B- 1 5/8” Coated Deck Screw- (16) 251-28- Rope Ladder Gusset- G- 3/8” x 3 1/2” Hex Lag Screw- O- 3/8” USS Flatwasher- RAILS ARE 3 1/2” APART...
  • Page 42 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-H- 15’ Yellow Rope- SB-3- 1/2” x 3” Carriage Bolt- SB-18- 3/4” USS Flatwasher- 251-17- 22” Rope Ladder Rung- SB-17- 1/2” USS Flatwasher- SB-15- 1/2” Split Lockwasher- 251-C- Swingbeam Tri-Plate- SB-7- 1/2” Hex Nut- SB-2- 1/2”...
  • Page 43 A-Frame Install PARTS NEEDED HARDWARE NEEDED A-Frame Assembly- SB-4- 1/2” x 6 1/2” Carriage Bolt- SB-5- 1/2” x 9” Carriage Bolt- SB-18- 3/4” USS Flatwasher- SB-17- 1/2” USS Flatwasher- SB-15- 1/2” Split Lockwasher- SB-7- 1/2” Hex Nut- SB-2- 1/2” Acorn Nut Plated- SB- 16- 3/8”...
  • Page 44 A-Frame Install PARTS NEEDED HARDWARE NEEDED 251-34- 68” A-Frame Crossmember- SB-4- 1/2” x 6 1/2” Carriage Bolt- SB-18- 3/4” USS Flatwasher- 251-O- 56” Chained Belt Swing- SB-17- 1/2” USS Flatwasher- SB-15- 1/2” Split Lockwasher- 251-I- 16” Trapeze Bar- SB-7- 1/2” Hex Nut- SB-2- 1/2”...
  • Page 45 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-A- 90 Degree Bracket- N- 1/4” USS Flatwasher- (12) 251-G- Playgrip Safety Handle- I- #14 x 1” Pan Phillips T/S- J- #14 x 2” Pan Phillips T/S-...
  • Page 46 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-M- Bull Ring Tire Swivel- A-2- 3/8” x 3” Carriage Bolt- A-7- 3/4” USS Flatwasher- O- 3/8” USS Flatwasher- A-6- 3/8” Split Lockwasher- A-3- 3/8” Hex Nut- A-1- 3/8” Acorn Nut Plated- FIND THE CENTER OF THE DECK AND MARK THE HOLES TO BE DRILLED USING A 9/16”...
  • Page 47 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-J- 36” Plastisol Coated Chain- A-9- 8 x 80mm Spring Clip- 251-L- Tire Swing Eye Bolt- Tire-...
  • Page 48 Main Assembly PARTS NEEDED HARDWARE NEEDED Slide- K- 1/4” x 1 1/4” Pan Phillips M/S- 251-Q- Telescope- N- 1/4” USS Flatwasher- M- 1/4” T-Nut- Hardware with Telescope- PLACE SLIDE ON DECK & MARK AND DRILL HOLES USING A 5/16” BIT...
  • Page 49 Main Assembly PARTS NEEDED HARDWARE NEEDED 251-R- 12” Ships’ Wheel- Hardware with Ships’ Wheel- 251-N- Spiral Ground Anchor- O- 3/8” USS Flatwasher- G- 3/8” x 3 1/2” Hex Lag Screw-...
  • Page 50 Tarp Install PARTS NEEDED HARDWARE NEEDED 251-1- 52 1/2” End Tarp Board- D- 2 1/2” Coated Deck Screw- (12) 251-7- 48” Center Tarp Board- P- 5/8” Phillips Screw Snaps- PLACE TARP OVER THE UNIT AND MARK THE LOCATION OF THE TARP SNAPS, THEN SCREW THE 5/8” PHILLIPS SCREW SNAPS IN ON THE MARKED LOCATIONS.
  • Page 52 Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED 558-1- 10 7/16” Fan Board #1- A-4- 1 1/2” Coated Deck Screw- (20) 558-6- 10” Fan Plate- D- 2 1/2” Coated Deck Screw- 558-2- 40 3/16” Fan Bottom- MAKE 2 FAN ASSEMBLIES 558-3 OVERHANGS THE CENTER POST BY 1 3/8”...
  • Page 53 Wood Roof Assembly PARTS NEEDED HARDWARE NEEDED 558-8- 58 3/4” Wood Roof Support- A-3- 3/8” x 5” Carriage Bolt- A-2- 3/8” x 3” Carriage Bolt- A-9- 1/2” USS Flatwasher- A-8- 3/8” USS Flatwasher- A-7- 3/8” Split Lockwasher- A-6- 3/8” Hex Nut- A-1- 3/8”...
  • Page 54 Wood Roof Assembly (REPEAT FOR BOTH SIDES OF PLAYCENTER) PARTS NEEDED HARDWARE NEEDED Fan Assembly- A-4- 1 1/2” Coated Deck Screw- (16) 558-7- 50 3/4” Wood Roof Board- (10) A-5- 2” Coated Deck Screw- (40)
  • Page 55 Wood Roof Assembly (REPEAT FOR BOTH SIDES OF PLAYCENTER) PARTS NEEDED HARDWARE NEEDED 558-4- 56 1/2” Center Support- A-4- 1 1/2” Coated Deck Screw- (20) 558-7- 50 3/4” Wood Roof Board- (10) A-5- 2” Coated Deck Screw- (40)
  • Page 56 Wood Roof Assembly (REPEAT FOR BOTH SIDES OF PLAYCENTER) PARTS NEEDED HARDWARE NEEDED 558-5- 50 3/4” End Wood Roof Board- A-5- 2” Coated Deck Screw- 251-1- 52 1/2” End Tarp Board- A-4- 1 1/2” Coated Deck Screw- D- 2 1/2” Coated Deck Screw-...
