Installation
Light source
100 (3.94)
78 (3.07)
M4 x 5
M5 x 8

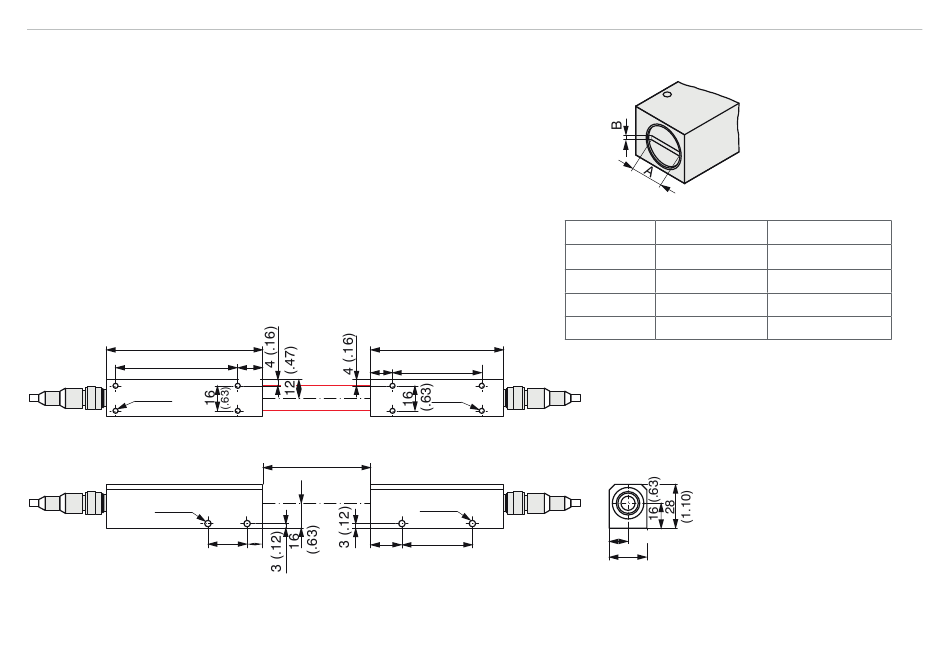

Fig. 3 Dimensional drawing ODC 1200, ranges 2/5/10/16 mm, dimensions in mm, not to scale
optoCONTROL 1200/1201
16
14 (.55)
(.63)
Laser light
max. 5000 (197)
25 10 20
(.98) (.39) (.79)
Model
ODC1200-2
ODC1200-5
ODC1200-10 10 x 2 (.39 x .08)
Receiver
ODC1200-16 16 x 2 (.63 x .08)
85 (3.35)
57 (2.24)
M4 x 5
M5 x 8
45 (1.77)
Aperture dimensions
(A x B) in mm
Light source
2 x 2 (.08 x .08) 2 x 0.3 (.08 x .01)
5 x 2 (.20 x .08) 5 x 0.3 (.20 x .01)
10 x 0.3 (.39 x .01)
16 x 0.3 (.63 x .01)
12 (.47)
24
(.94)
Receiver
