APCI-3003
By clicking twice on one of the columns, the connection principle and the
technical data of the resource are displayed. This function is only possible if a
question mark appears with the cursor.
You can export the set configuration as a text file. Click on "file" and save the
configuration as a .txt file with "Export information to file...". Then you can print
the configuration or use it as a basis for other boards.
Once you have controlled the registration, you can close the window of
ADDevice Manager. The board is ready to operate.
6.1.2
At any time you can change the current board configuration of the APCI-3003
with ADDIREG.

Description of the ADDIREG program

The program is automatically installed with ADDIPACK.
Start ADDIREG under Start/Programs/ADDIPACK/ADDIREG.
IMPORTANT!
i
First quit all the applications (programs) that use the board
before you start the ADDIREG program.
The board is registered automatically of ADDIREG in the program. For this
program the fields "Insert" and "Clear" are of no importance.

Changing the registration of a board

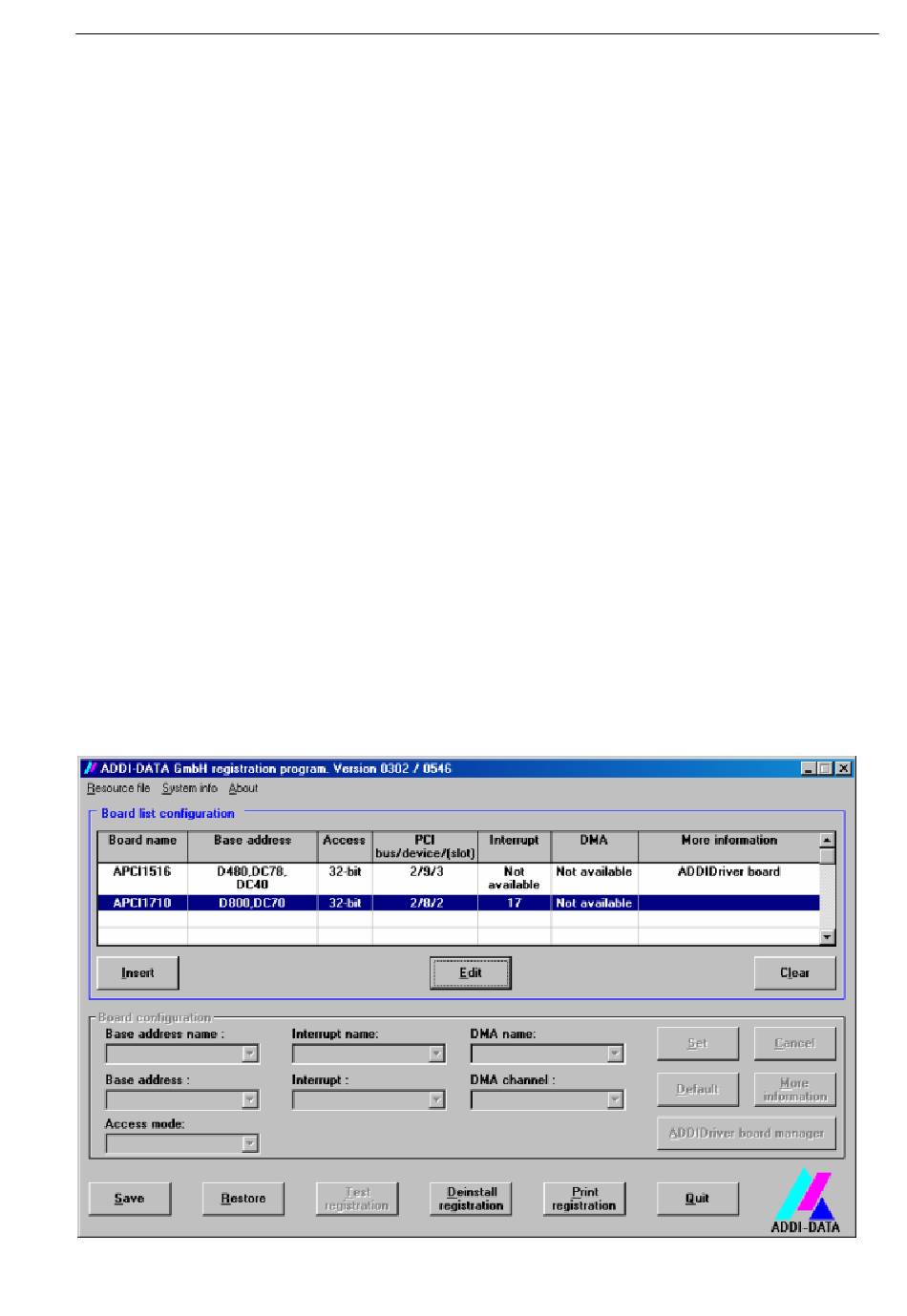

Fig. 6-3: ADDIREG registration program (example)

Software
21
