Insertion and installation of the board APCIe-040

3.2.3 Connection examples

1) Digital inputs (24 V)

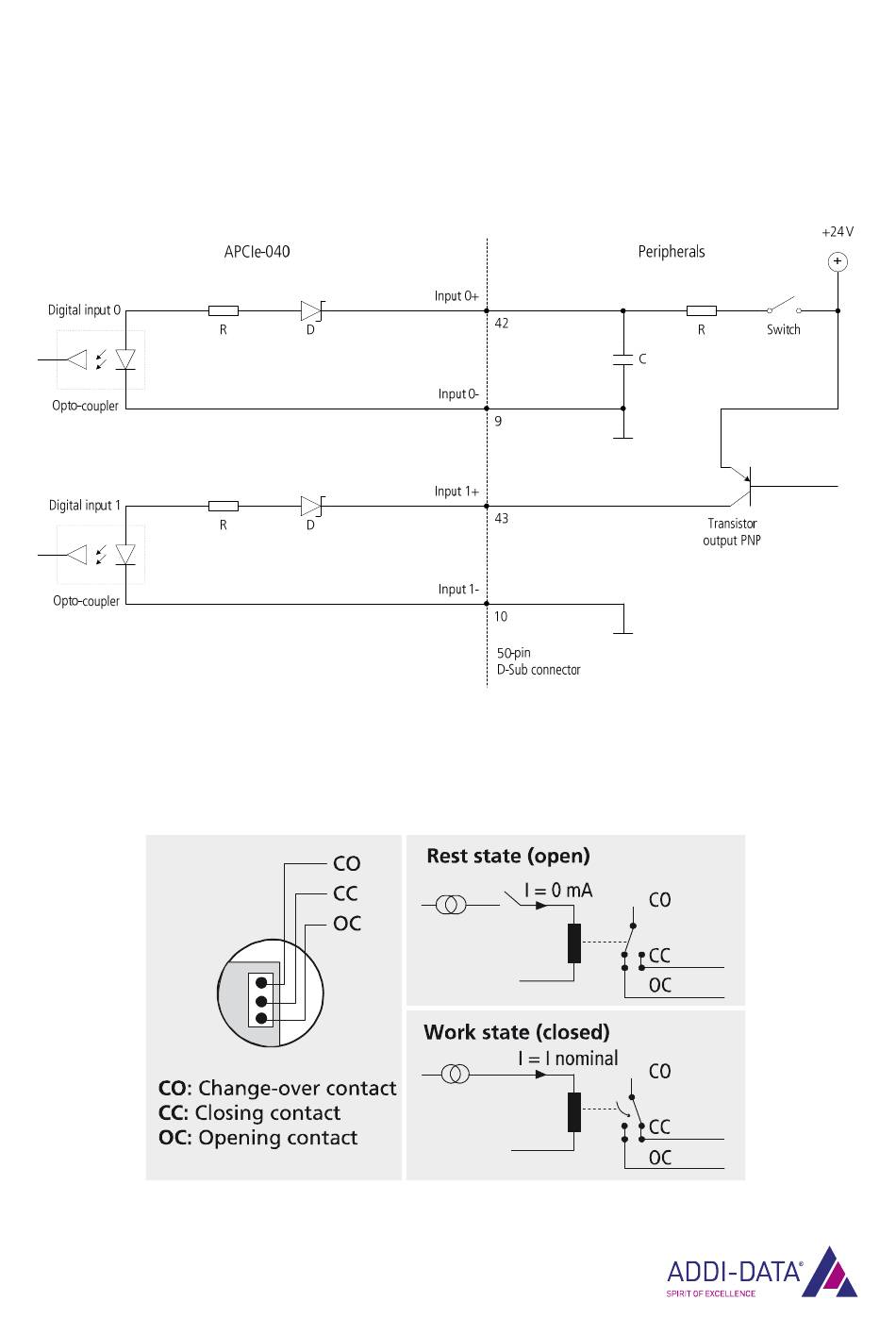

Fig. 3-6: Connection example: Digital inputs (24 V)

2) Digital outputs (relays)

Fig. 3-7: Switching principle of the relays

www.addi-data.com 14
