The Profibus component CM-PDP is delivered pre-fitted for assembly in a housing. In
addition, a PE spring is enclosed for the PE connection (screening) of the communica-
tion module.
Caution!
In the first step, the covers are to be removed. After this, the plug-in section for the
Profibus-DP communication module CM-PDP is accessible.
To start with, the supplied PE spring is fitted with the help of the M4 screw in the
device. The spring must be aligned centrally.
The Profibus component CM-PDP can now be fitted and screwed onto the PE spring
with the M2 screw available on the module.
Caution!
After this, the covers have to be fitted again. In the upper cover, the pre-stamped
breakthrough for plug X310 is to be broken out and the cover fitted again.
06/05
06/05

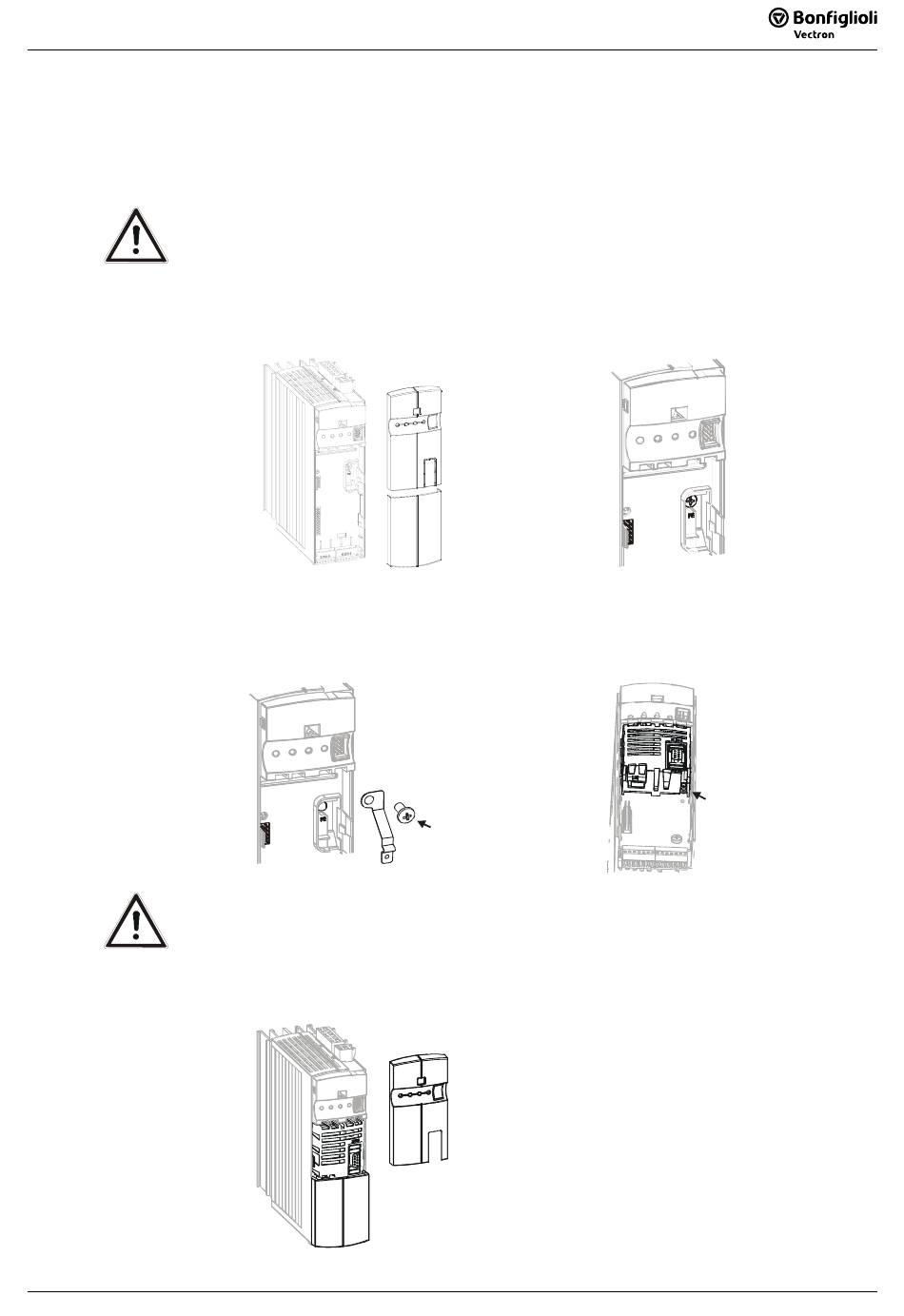

Assembly of the Profibus-DP communication module CM-PDP
Before the assembly of the Profibus component CM-PDP, the inverter
must be switched free of voltage.
Assembly under voltage is not admissible and leads to a destruction of the
frequency inverter and / or the Profibus component.
The Profibus-DP communication module CM-PDP is pre-fitted in a housing.
The PCB visible on the back may not be touched, as modules can be dam-
aged by this.
M4
M2
7
7
