Socket Occupancy/Bus Termination/Line - BONFIGLIOLI ACTIVE Manual

4
The factory setting for the bus termination is OFF.
As an alternative, this is possible via corresponding circuits in the bus connection sock-
ets (e.g. made by Siemens).
Attention! It is absolutely necessary that only one of the two possibilities for the
Only admissible types are to be used for the bus socket. They must all be suited for
the 12 MBaud transmission rate.
This is, for example, type Profibus connector 12 MBAUD (6ES7 972-0BA11-0XA0)
from Siemens.
Only admissible types are to be used as a line for the Profibus (line type A).
This is, for example, type UNITRONIC-BUS L2/F.I.P. 1x2x0,64 from Lappkabel.
Attention! The line screen is to be connected to ground (PE) on both sides on a
8
8

Socket occupancy/bus termination/line

S1
bus termination is used and the bus termination is only switched on with
the first and last subscriber. If not, operation of the Profibus is not pos-
sible.
If the bus termination is activated on an inverter (Profibus component or
bus socket), it is only correctly effective if the inverter has contact to
voltage. If not, the bus is not operation-capable.
Pin Name
housing screen
1 PE
2 not used
3 RxD/TxD-P
4 CNTR-P
5 DGND
6 VP
7 not used
8 RxD/TxD-N
9 not used
large area and with good conductivity.

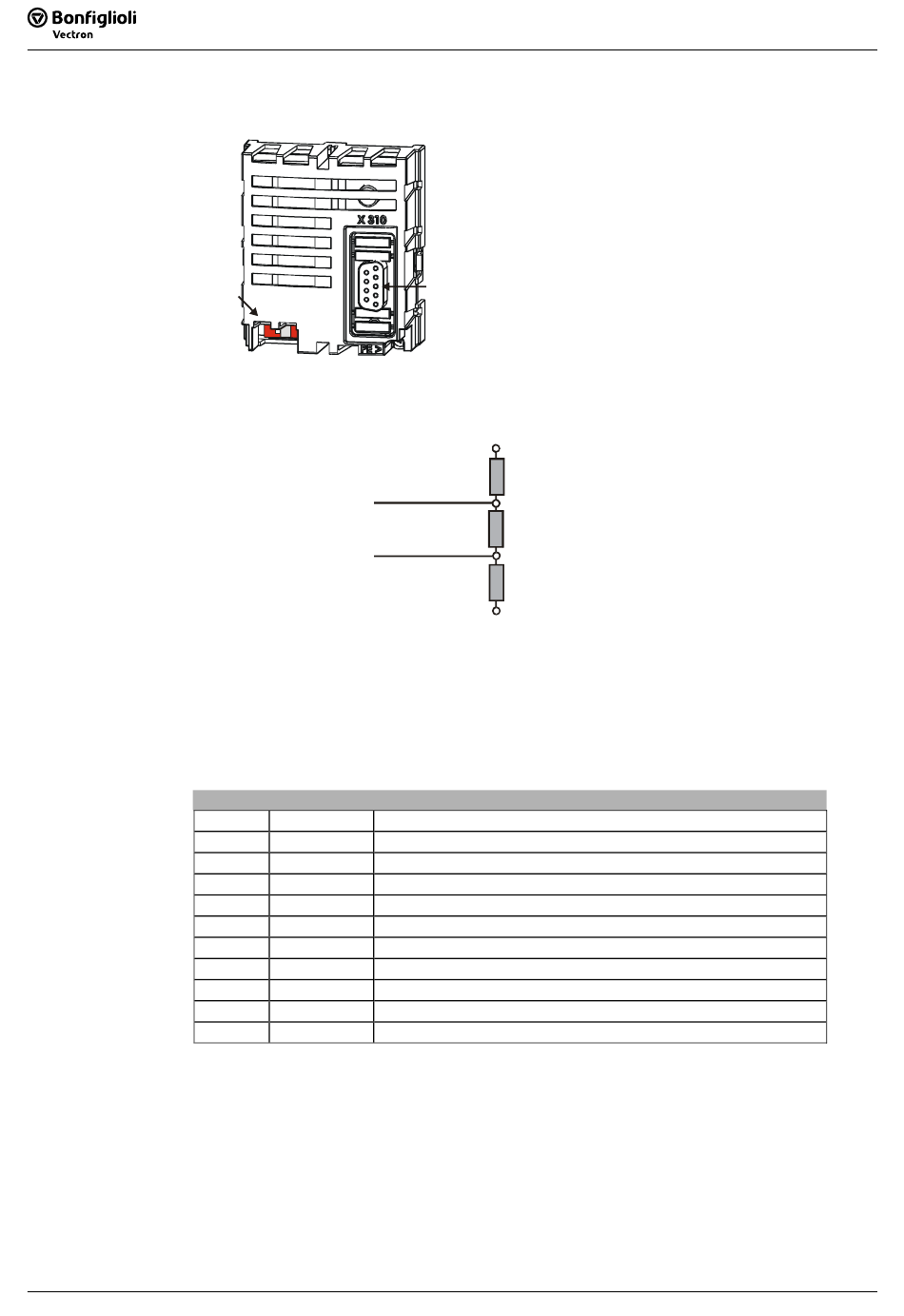

The bus socket X310 (9-pole Sub-D) is occu-
pied according to the Profibus DP norm
EN50170.
Please take the details for the pin allocation
of the bus plug from the following table.
The bus termination necessary on the bus
X310
line in the physically first and last subscriber
can be activated via the DIP switch S1 on
the Profibus module.
VP (Pin 6)
390 Ω
data line
RxD/TxD-P (Pin 3)
220 Ω
data line
RxD/TxD-N (Pin 8)
390 Ω
DGND (Pin 5)
Bus plug X310
connected with PE
PE
-
positive signal RxD/TxD-P, corresponding to RS485 B-Line
control signal for repeater
isolated ground for bus connection
isolated 5V for bus connection
-
negative signal RxD/TxD-N, corresponding to RS485 A-Line
-
Function
