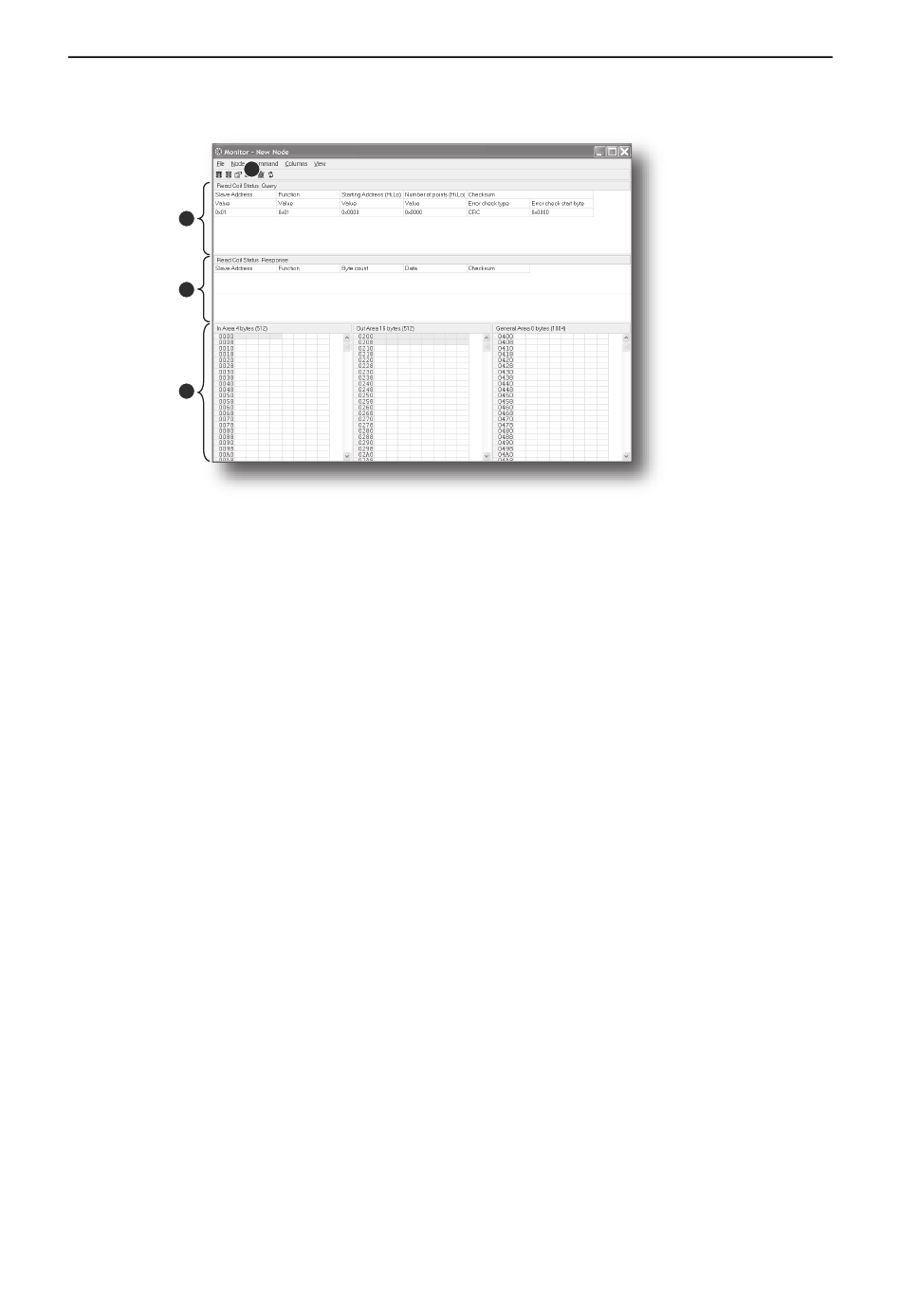

11.2 Navigating the Node Monitor

A: Drop-down Menu & Toolbar Icons

See "Drop-down Menu" on page 56 and "Toolbar Icons" on page 57.

B: Command Section

This section holds the currently selected command. The individual frame objects in the com-

mand can be edited in a similar way as in the Transaction and Command Editors.

C: Response Section (Master Mode and DF1 Master Mode only)

This section holds the response to the selected Command.

D: Monitor Section

This section displays the data associated with the node. Areas in dark grey are reserved for the

Status & Control Registers, and areas displayed in light grey represent the data that is used by the

node.

The data displayed in this section will be refreshed based on the refresh-icons in the toolbar. For

more information, see "Toolbar Icons" on page 57.

Anybus Communicator PROFINET User Manual

Node Monitor 55

Doc: HMSI-27-309, Rev. 3.11
