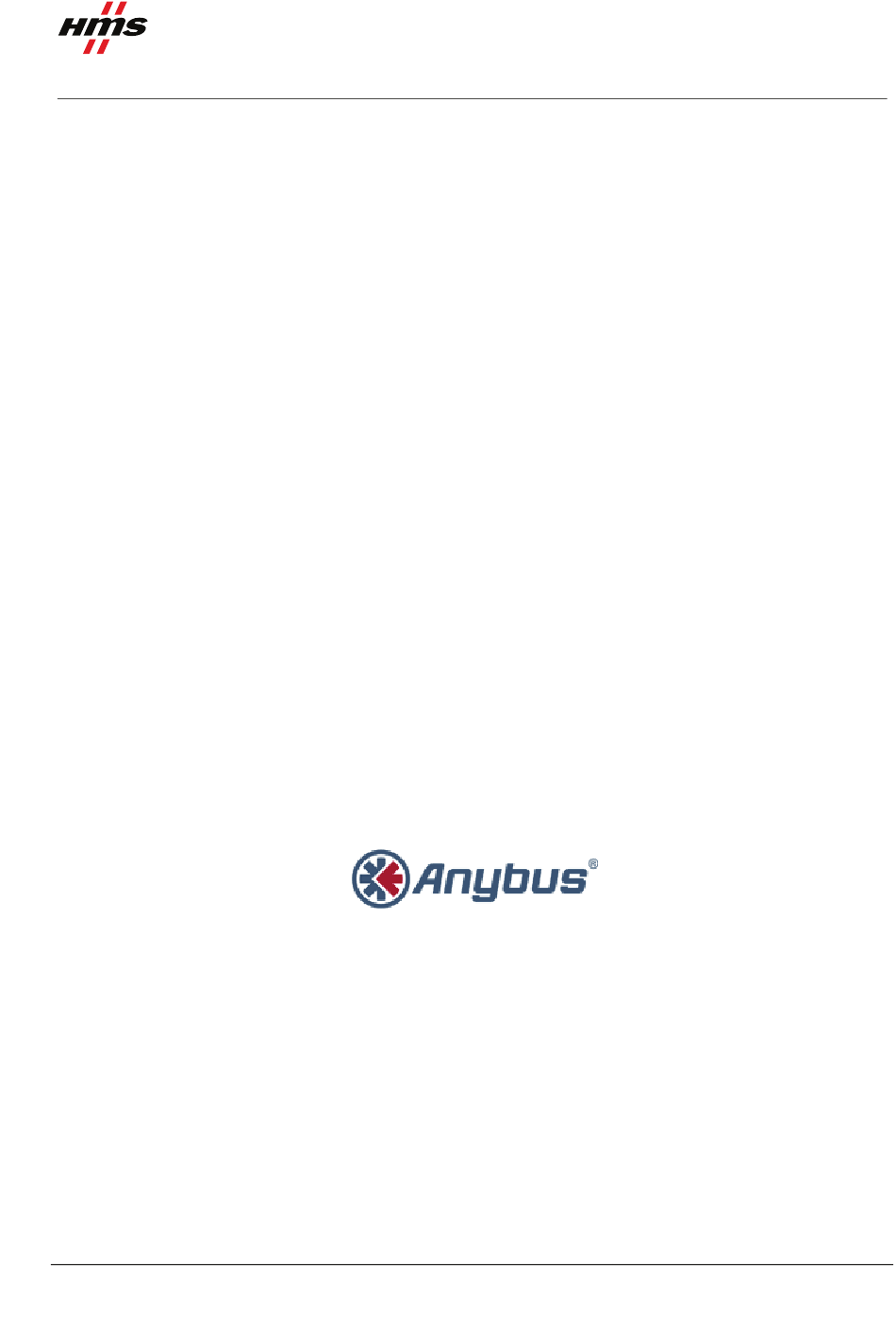

- Page 1 How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 How to configure an Anybus AS-Interface Master module www.anybus.com HMS Industrial Networks AB Page 1 (19)
- Page 2 More info about the network and products This document gives a brief description of how to configure an Anybus Master product for AS-Interface. For further information about the products, please consult the HMS homepage, www.anybus.com. The latest manuals etcetera can be downloaded from that location.
-
Page 3: Table Of Contents
How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 Contents Solution overview .............................4 Applicable Anybus products ........................5 Requirements ............................5 Anybus configuration..........................6 Anybus-M Master and PCI Master configuration................6 Anybus X-gateway configuration .....................7 AS-Interface configuration ........................9 Configuration using the Configuration Button .................9 Configuration using the Terminal Interface..................10... -
Page 4: Solution Overview
Rev 1.02 Solution overview This application note describes how to configure an Anybus AS-Interface Master module and how to set up the AS-Interface network. Below you can find an overview of the system described in this document. Other nodes may be attached to the network, but are not necessary. -
Page 5: Applicable Anybus Products
How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 Applicable Anybus products The following table specifies the relevant Anybus products for this document. Description Name / Type Anybus-M Master AS-Interface (Module software version higher than 2.04) Anybus-M Master PCI AS-Interface (Module software version higher than 2.04) -
Page 6: Anybus Configuration
The Anybus-M Master and Anybus PCI Master are configured via the host application interface using the mailbox interface. Refer to the Anybus-M Fieldbus Appendix for details. The Anybus AS-Interface Master can also be auto configured by the Configuration Button and the Terminal Interface. Please see section 5 AS-Interface configuration for details. -
Page 7: Anybus X-Gateway Configuration
How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 Anybus X-gateway configuration Use the HyperTerminal on a PC to configure the X-gateway. Connect a serial cable between the PC and the config port on the X-gateway (make sure that it is not connected to the AS-Interface Master). Start the HyperTerminal and open the “File”... - Page 8 How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 The figure below shows an example; in this case an AS-Interface Master to Modbus-TCP Slave X-gateway is used. 20 bytes of I/O data on the Modbus-TCP side and 312 bytes of I/O data on the AS-Interface side are configured.
-
Page 9: As-Interface Configuration
How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 AS-Interface configuration The AS-Interface Master configuration can be done in several ways. 1 The Configuration Button enables the auto configuration as described in section 5.1 Configuration using the Configuration Button. -
Page 10: Configuration Using The Terminal Interface
How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 Configuration using the Terminal Interface The AS-Interface Master can also be configured using the Terminal Interface. Please follow the steps below. 1 Connecting to the AS-Interface with a Terminal software Use for example the HyperTerminal or TeraTermPro on a PC to configure the AS-Interface Master. - Page 11 How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 3 Changing to Configuration mode Enter 5 in the main menu and change the mode to Configuration mode. Figure 8 Changing the mode of the AS-Interface Master. 4 Viewing all detected slaves.
- Page 12 How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 Figure 10 Viewing the slave settings. The settings can now be changed if desired. In this case the settings are left at the default values. 5 Saving the configuration.
- Page 13 How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 6 Changing to protected mode. The final step is to change the operation mode to protected mode. Figure 12 Changing the AS-Interface Master mode to Protected mode. 7 Disconnecting the Terminal connection.
-
Page 14: Memory Mapping
How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 Memory Mapping The figure below shows the memory mapping of the AS-Interface Master generally. Note: For the X-gateway the memory mapping will be different depending on if the Control Word, Status Word and Live List are used. -
Page 15: Testing
How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 Testing The testing of the network can be done after finishing the configuration. In this particularly case the AS-Interface Master to Modbus-TCP Slave X-gateway is used for test purpose. - Page 16 How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 The window below shows the data values of slave 41. The marked data shows the analogue input from a temperature sensor on the AS-Interface network. Figure 16 Monitoring analogue I/O data using the Master Terminal Interface.
- Page 17 How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 In this case slave 7 is monitored. The marked data is digital input data. Figure 17 Monitoring digital I/O data Master Terminal Interface. www.anybus.com HMS Industrial Networks AB Page 17 (19)
-
Page 18: Monitoring Using Modscan32
How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 Monitoring using ModScan32 To verify that the data is exchanged between the two networks using the Anybus X-gateway, the program ModScan32 is used. Note: To use ModScan for testing is it is required that the gateway has an Ethernet connection. -
Page 19: Web Interface
How to configure an Anybus AS-Interface Master module SCM-7032-036 Rev 1.02 Web interface The configuration can also be verified using the web interface in the X-gateway. Note: To use the web interface it is required that the X-gateway has an Ethernet connection. Use the Anybus IPconfig to find or set the IP-address.
