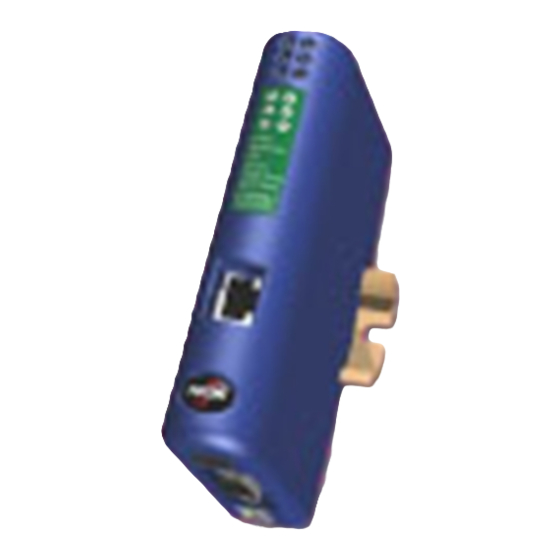

How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP
SCM-7032-031
Rev 1.02
How to configure an Anybus EtherNet/IP
Scanner module with RSNetWorx for
EtherNet/IP
Saved: 2008-01-10
HMS Industrial Networks AB
Page 1 (20)
Filename: How to configure an Anybus EtherNetIP Scanner (6).doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anybus and is the answer not in the manual?

Questions and answers

Related Manuals for HMS Anybus

Summary of Contents for HMS Anybus

  • Page 1 How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP SCM-7032-031 Rev 1.02 How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP Saved: 2008-01-10 HMS Industrial Networks AB Page 1 (20) Filename: How to configure an Anybus EtherNetIP Scanner (6).doc...
  • Page 2 Rev 1.02 More info about the network and products This document gives a brief description of how to configure an Anybus Scanner product for EtherNet/IP. For further information about the products, please consult the HMS homepage, www.anybus.com. The latest manuals, EDS-files etcetera can be downloaded from that location.

  • Page 3: Table Of Contents

    How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP SCM-7032-031 Rev 1.02 Contents Solution overview .............................4 Applicable Anybus products ........................5 Requirements ............................5 Anybus configuration..........................6 4.1. IP settings............................6 4.2. Anybus-M and Anybus PCI-card configuration ................7 4.3. Anybus X-gateway configuration .....................8 EtherNet/IP configuration ........................10...

  • Page 4: Solution Overview

    Rev 1.02 Solution overview This application note describes how to configure an Anybus EtherNet/IP Scanner module and how to set up the EtherNet/IP network using RSNetWorx. Below you can find an overview of the system described in this document. Other nodes may be attached to the network, but are not necessary.

  • Page 5: Applicable Anybus Products

    How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP SCM-7032-031 Rev 1.02 Applicable Anybus products The following table specifies the relevant Anybus products for this document. Description Name / Type Anybus X-gateway Scanner EtherNet/IP Anybus PCI Scanner...

  • Page 6: Anybus Configuration

    4.1. IP settings Make sure each node on the network has a unique IP address. The IP settings of the Anybus EtherNet/IP modules can be configured in various ways. In many industrial applications DHCP with a fixed MACID table is used. For the Anybus Ethernet modules DHCP is activated by default.

  • Page 7: Anybus-M And Anybus Pci-Card Configuration

    4.2. Anybus-M and Anybus PCI-card configuration The Anybus-M and the Anybus PCI card are configured via the host application interface using the mailbox interface. Refer to the Anybus-M Fieldbus Appendix and the Anybus API reference manual for details. Saved: 2008-01-10...

  • Page 8: Anybus X-Gateway Configuration

    How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP SCM-7032-031 Rev 1.02 4.3. Anybus X-gateway configuration Use the HyperTerminal on a PC to configure the X-gateway. Connect a serial cable between the PC and the config port on the X-gateway. Start the HyperTerminal and open the “File” menu and click on new, choose the desired COM port and then click on OK.
  • Page 9 How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP SCM-7032-031 Rev 1.02 The figure below shows an example; in this case an EtherNet/IP Scanner to EtherNet/IP Adapter X-gateway is used and 20 bytes of I/O data is configured.

  • Page 10: Ethernet/Ip Configuration

    How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP SCM-7032-031 Rev 1.02 EtherNet/IP configuration To configure the EtherNet/IP network the tools RSNetWorx for EtherNet/IP and RSLinx are used. Firstly the Ethernet Driver needs to be configured in RSLinx and secondly the EtherNet/IP network is configured by RSNetWorx.
  • Page 11 How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP SCM-7032-031 Rev 1.02 Select a name for the driver and press OK. Figure 9 Naming the new Ethernet device. In the next dialogue window the EtherNet/IP settings are configured. In this case the local subnet is browsed.

  • Page 12: Ethernet/Ip Network Configuration

    For the X-gateway the operation mode has to be changed from the gateway configuration interface. This can be done by connecting with the HyperTerminal and select the menu option 8, Change operational mode. For further instructions on how to connect to the X-gateway terminal interface, please see chapter 4.3, Anybus X- gateway configuration.
  • Page 13 How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP SCM-7032-031 Rev 1.02 Click on next in the first window and then select Register an EDS file as seen below. Figure 12 Registering the EDS file. Follow the steps and browse to the location of the EDS file(s) and follow the instructions.
  • Page 14 How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP SCM-7032-031 Rev 1.02 Then click on Set Online Path as shown below. Figure 14 Viewing the network properties. Choose the Online path you wish to use and press OK.
  • Page 15 In this test network, an Anybus X-gateway with a Scanner module and an Anybus Communicator has been set up. Figure 16 Scanning the network in Online mode.
  • Page 16 Now right click on the Scanner module and select Scanlist Configuration as seen below. Figure 17 Opening the Scanlist Configuration. The Scanlist Configuration Tool will now appear as indicated below. In this case an Anybus Communicator is used as an adapter module on the EtherNet/IP network. The Scanlist configuration will look different depending on how the EtherNet/IP network looks.
  • Page 17 How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP SCM-7032-031 Rev 1.02 In the next dialogue window it is possible to configure the I/O sizes and the Address offset . The Address offset indicates the offset in the memory of the Scanner. It is also possible to adjust the Requested Packet Interval .
  • Page 18 How to configure an Anybus EtherNet/IP Scanner module with RSNetWorx for EtherNet/IP SCM-7032-031 Rev 1.02 6. Downloading the Scanlist The Next step is to download the Scanlist to the Scanner. Right click on the Scanner module and select Download to Device as seen below.

  • Page 19: Testing

    Rev 1.02 Testing Now it is possible to access the data exchanged by the Anybus Scanner module and the Adapter modules on the network. Using the PCI-card and the Anybus-M, please see the section 6.2 Monitoring the EtherNet/IP network below. Using the X-gateway please also read the following chapter.

  • Page 20: Monitoring The Ethernet/Ip Network

    Monitoring the EtherNet/IP network In this case the Anybus Ethernet/IP Communicator with a loop dongle at the serial port is used as an Adapter test node on the network. A model of the network can be found in Figure 1, Hardware connection overview.
