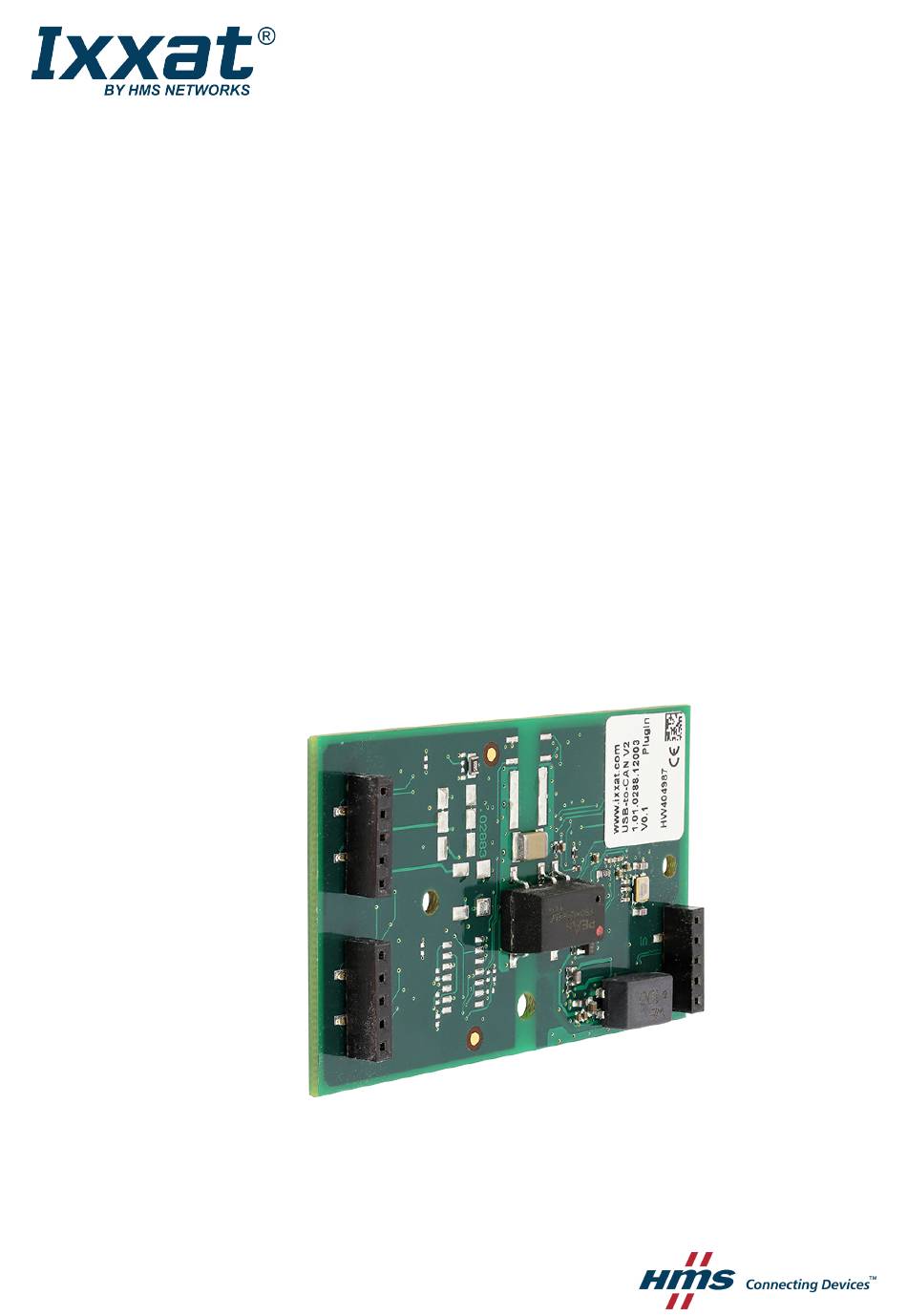

- Page 1 USB-to-CAN Plugin USER MANUAL 4.01.0288.20000 2.0 en-US ENGLISH...
- Page 2 HMS Industrial Networks reserves the right to modify its products in line with its policy of continuous product development. The information in this document shall therefore not be construed as a commitment on the part of HMS Industrial Networks and is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Page User Guide ........................... 3 Target Audience.......................3 Related Documents ......................3 Document History ......................3 Trademark Information .....................3 Conventions........................4 Safety Instructions ......................5 Information on EMC ......................5 General Safety Instructions ....................5 Intended Use........................5 Scope of Delivery ........................ 5 Product Description ......................6 Installation........................... - Page 4 Technical Data ........................14 10 Troubleshooting ........................ 15 11 Cleaning ..........................16 12 Support/Return Hardware....................16 12.1 Support ........................16 12.2 Return Hardware ......................16 13 Disposal..........................16 Measurements ........................17 Regulatory Compliance ..................... 18 EMC Compliance (CE) ..................... 18 FCC Compliance Statement ....................
-
Page 5: User Guide
Description July 2020 Revised and edited in new design Trademark Information Ixxat is a registered trademark of HMS Industrial Networks AB. All other trademarks mentioned ® in this document are the property of their respective holders. 4.01.0288.20000 2.0 en-US USB-to-CAN... -
Page 6: Conventions
This is a cross-reference within this document: Conventions, p. 4 This is an external link (URL): www.hms-networks.com Safety advice is structured as follows: Cause of the hazard! Consequences of not taking remediate action. -
Page 7: Safety Instructions
Technical Data, p. 14). ► Protect product from fire. Do not paint the product. ► Do not modify or disassemble the product. Service must be carried out by HMS Industrial ► Networks. Store products in dry and dust-free place. ► Intended Use The interface is used to connect computer systems to CAN and LIN networks and is intended for installation in computer systems with closed housing. -
Page 8: Product Description
Product Description 6 (20) Product Description The USB-to-CAN Plugin is an active USB interface which enables the user to monitor and control up to two CAN high-speed channels, one CAN low-speed channel, and a LIN channel, depending on the variant. Common Features •... -
Page 9: Installation
Installation 7 (20) Installation Installing the Software For the operation of the interface a driver is needed. Windows Install the VCI driver (see Installation Guide VCI Driver). ► Linux and Real-Time Operating Systems Observe information about supported operating systems and interfaces on www.ixxat.com. ►... - Page 10 Installation 8 (20) ► Make sure that the driver is installed. ► Turn off the computer. ► Pull the power cord. Open the computer case according to instructions of the computer manufacturer. ► Plug the USB-to-CAN Plugin in the suitable slot on the computer main board. ►...
-
Page 11: Connectors
Connectors 9 (20) Connectors Fig. 3 Connectors Channel 2, pin 1 Channel 1, pin 1 USB connector, pin 1 USB Connector Malfunction caused by extension cable! According to the USB specification connect the interface directly or via an active USB hub to the computer. -
Page 12: Connecting The Can Fieldbus
Connectors 10 (20) Pin Allocation Channel 1 USB-to-CAN Plugin Variant Pin No. Signal 11003 12003 22003 22043 CAN high HS CAN low HS CAN GND — — — CAN high LS — — — CAN low LS Pin Allocation Channel 2 USB-to-CAN Plugin Variant Pin No. -
Page 13: Leds
LEDs 11 (20) LEDs The implemented LEDs vary dependent on the variant of the USB-to-CAN Plugin. Fig. 4 Connectors and LEDs LED 1 LED 2 LED 3 LED 4 LED 5 Channel 2, pin 1 Channel 1, pin 1 USB connector, pin 1 Available LEDs of Different Variants USB-to-CAN Plugin Variant... -
Page 14: Can Led
LEDs 12 (20) CAN LED Reflects the status of CAN communication (CAN 1 and CAN 2). LED state Comments Description No communication No communication Device not connected to CAN. Green flashing Communication present LED is triggered with each message. Red flashing Controller in error state Controller is in state error warning or in state error passive, communication is possible. -
Page 15: Additional Components
13 (20) Additional Components CAN Bus Termination There is no bus termination resistor for the CAN bus integrated in the interface. HMS Industrial Networks offers a bus termination resistor as a feed through connector. Fig. 5 CAN bus termination resistor ►... -
Page 16: Technical Data
Technical Data 14 (20) Technical Data PC bus interface USB 2.0, Hi-Speed (480 MBit/s) Field bus connector Single row female header; 2,54 pitch USB conncetion Single row female header; 2,54 pitch Microcontroller/RAM/Flash 32 Bit RAM/136 kByte/512 kByte Dimensions 67.5 x 40 x 9.2mm Weight 14 g Power supply... -
Page 17: Troubleshooting
Troubleshooting 15 (20) Troubleshooting USB LED is off after installation. No communication ► Make sure that the device is correctly connected to the USB port. ► Check the power supply. ► Make sure that device and driver are correctly initialized. USB LED is red. -
Page 18: Cleaning
Cleaning 16 (20) Cleaning ► Disconnect the device from power supply. ► Remove dirt with a soft, chemical untreated, dry cloth. Support/Return Hardware 12.1 Support ► For problems or support with the product request support at www.ixxat.com/support. ► If required use support phone contacts on www.ixxat.com. 12.2 Return Hardware ►... -
Page 19: A Measurements
Appendix A: Measurements 17 (20) Measurements All measurements are in mm. 4.01.0288.20000 2.0 en-US USB-to-CAN User Manual... -
Page 20: B Regulatory Compliance
Phone +1 312 829 0601 Any changes or modifications not expressly approved by HMS Industrial Networks could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. -
Page 21: Disposal And Recycling
When this product reaches its end of life, contact local authorities to learn about disposal and recycling options, or simply drop it off at your local HMS office or return it to HMS. For more information, see www.hms-networks.com. - Page 22 © 2020 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se 4.01.0288.20000 2.0 en-US / 2020-07-13 / 19248...
