10. Sub-network Monitor

10.1 General

The sub-network Monitor is intended to simplify configuration and troubleshooting of the sub-network.
Its main function is to display the data allocated for sub-network communication and detect if any area
has been allocated twice (i.e if a collision has occurred).
All configured nodes, and their transactions, are listed in the middle of the screen (B). Selecting and de-
selecting single transactions makes it possible to view any combination of allocated data.
Note: The sub-network monitor has a negative influence on the overall performance of the gateway.
Therefore the monitor functionality should be used with care.

10.2 Operation

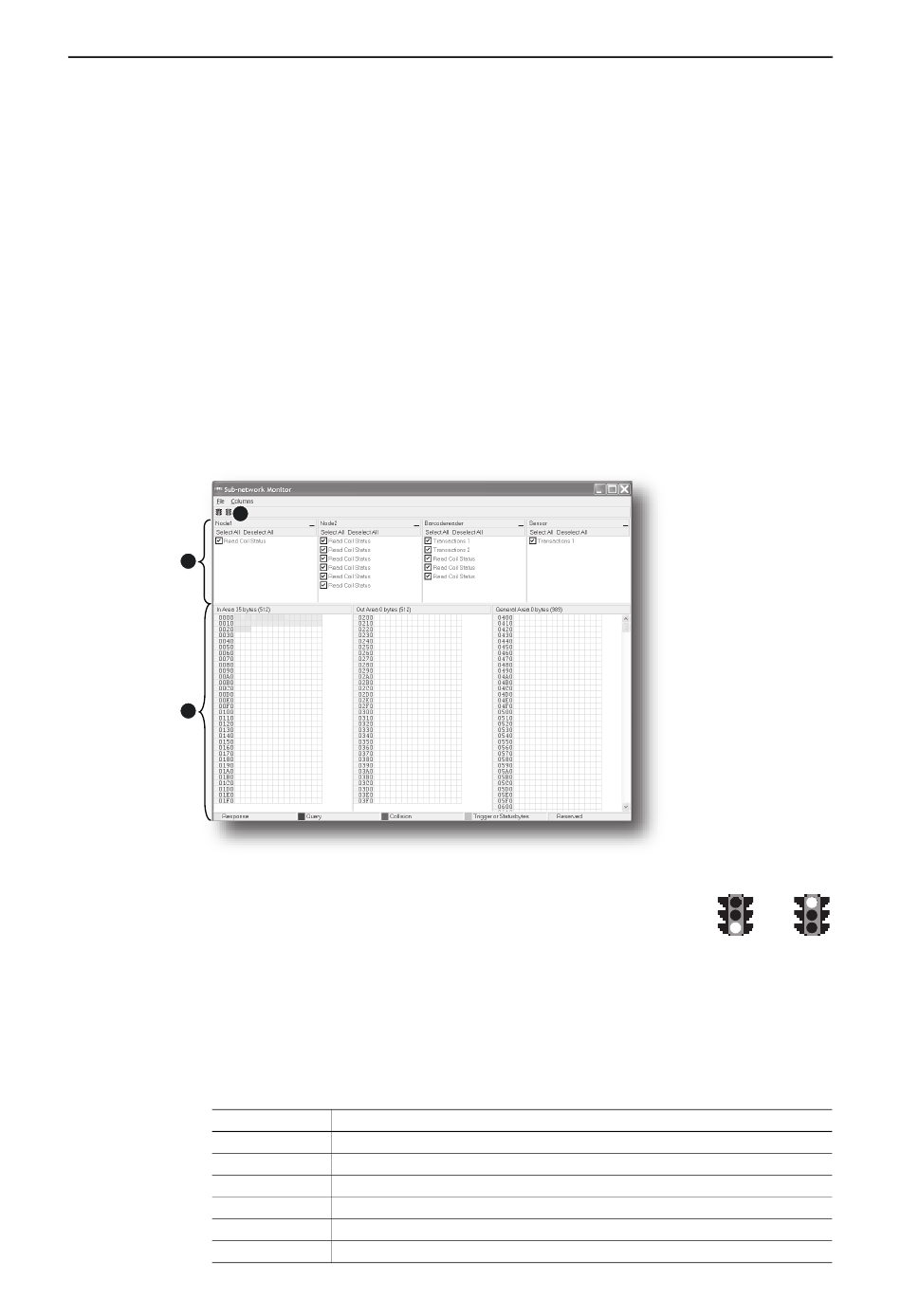

A
B
C
A: Start Network & Stop Network Icons
These icons controls the sub-network activity. To stop all activity, click
on the red light. To start the sub-network again, click on the green light.
B: Nodes / Transactions
To view data blocks associated with a transaction, select the transaction in the list. The corre-
sponding data will then appear in the Monitor Section (C).
C: Monitor Section
This section visualizes how data is allocated in the Input, Output and General Data areas.
Color
White
Yellow
Blue
Red
Grey
Green
Anybus Communicator PROFINET User Manual
Meaning
Not allocated
Data allocated by a Response or Consume transaction
Data allocated by a Query or Produce transaction
Collision; area has been allocated more than once
Reserved (illustrates memory consumption, area can be allocated if necessary)
Data allocated by Trigger byte, Transmit/Receive Counter, or Control/Status Registers
Chapter 10
Start Stop
Doc: HMSI-27-309, Rev. 3.11
