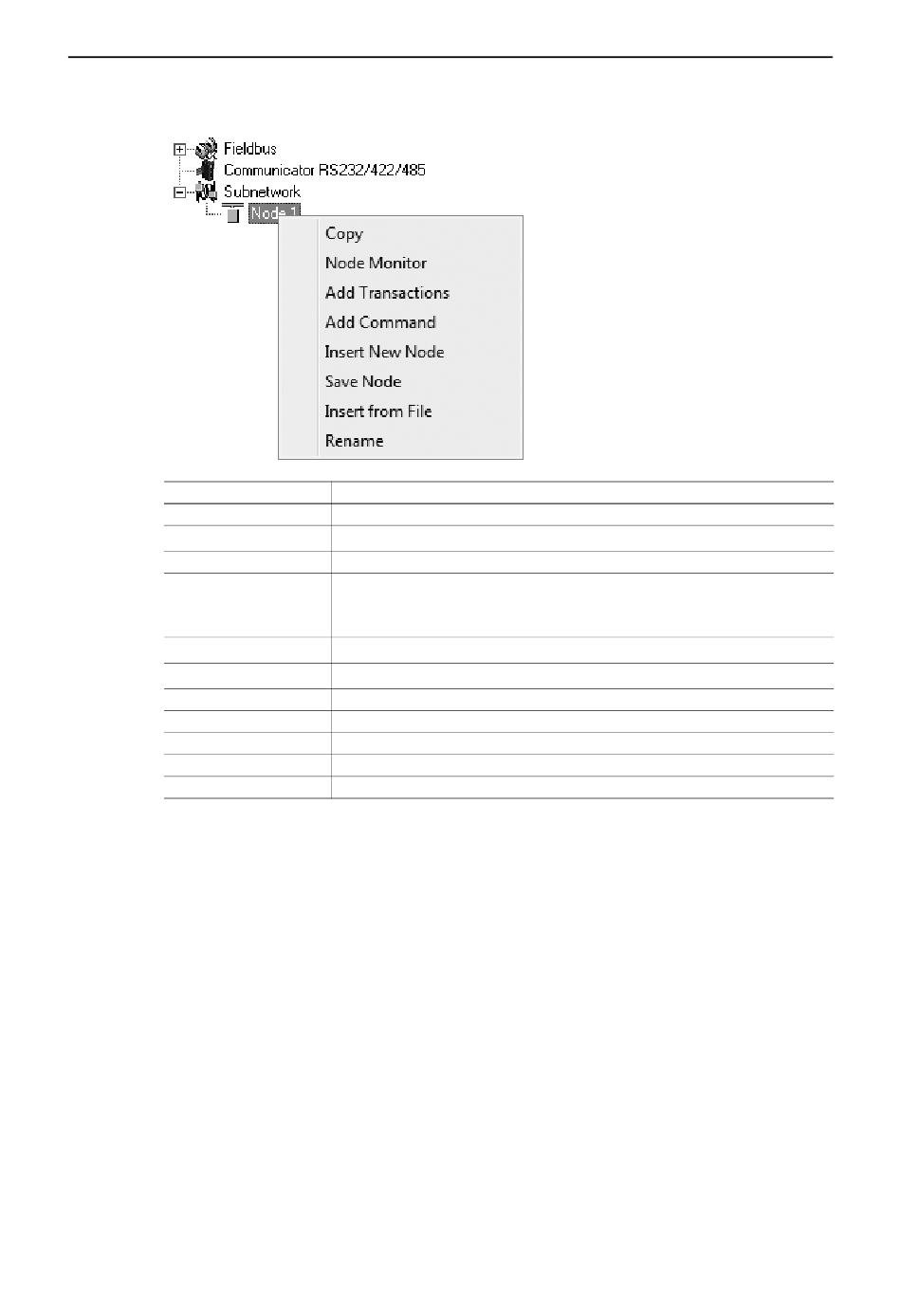

6.2 Adding & Managing Transactions
Function
Copy
a
Delete
Node Monitor
Add Transaction(s)
Add Transaction Consume
Add transaction Produce
Add Command
Insert New Node
Save Node
Insert from File
Rename
a. Only available if more than one node exists
b. Only available in Master Mode
c. Only available in Generic Data Mode
Anybus Communicator PROFINET User Manual
Description
Copy a node to the clipboard
Delete a node
Launch the node monitor (see "Node Monitor" on page 54)
On regular nodes, this adds a Query and a Response. The two transactions will be
b
grouped in order to increase readability.
On the Broadcaster, a single transaction will be added.
c Add a "Consume"-transaction
Add a "Produce"-transaction
c
Add predefined transactions to the node
Insert a new node above the currently selected one
Save the selected node
Insert a previously saved node above the currently selected node
To increase readability, each node can be given a unique name using this function
Transactions 29
