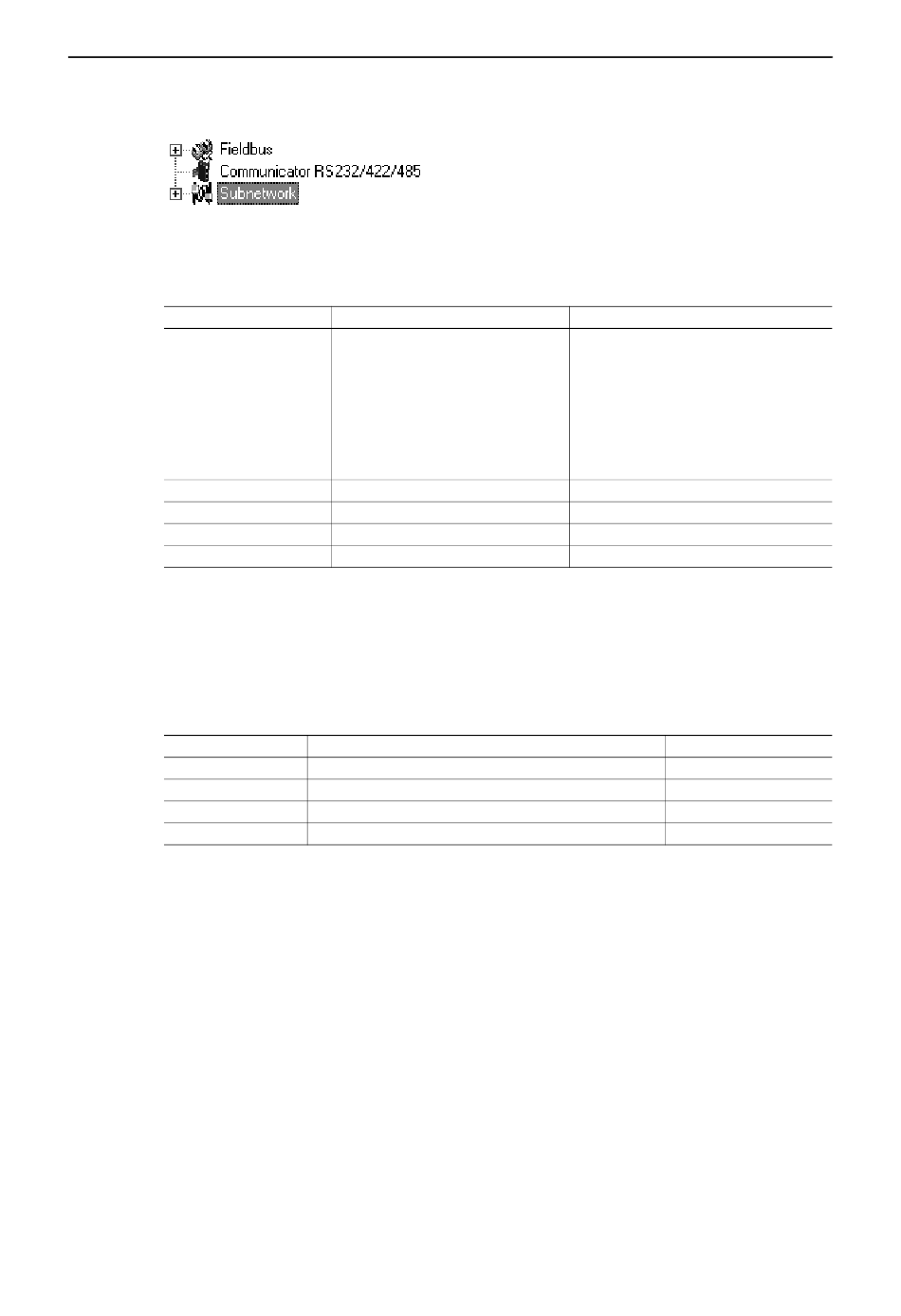

4.3 Sub-network Parameters

Communication
These parameters specify the actual communication settings used for the sub-network.
Parameter
Bitrate (bits/s)
Data bits
Parity
Physical standard
Stop bits
Start- and End Character
Note: These parameters are only available in Generic Data Mode.
Start and end characters are used to indicate the beginning and end of a serial message. For example, a
message may be initiated with <ESC> and terminated with <LF>. In this case, the Start character would
be 0x1B (ASCII code for <ESC>) and the End character 0x0A (ASCII code for <LF>)
Parameter
End character value
Use End character
Start character value
Use Start character
Timing (Message Delimiter)
The parameters in this category differs slightly between the different protocol modes.
• Master Mode
The Message Delimiter specifies the time that separates two messages in steps of 10 ms. If set to
0 (zero), the gateway will use the standard Modbus delimiter of 3.5 characters (the actual number
of ms will be calculated automatically based on the currently used communication settings).
• Generic Data Mode
The Message Delimiter specifies the time that separates two messages in steps of 10 µs.
Anybus Communicator PROFINET User Manual
Description
Selects the bit rate
Selects the number of data bits
Selects the parity mode
Selects the physical interface type
Number of stop bits.
Description
End character for the message, ASCII
Determines if the End character shall be used or not
Start character for the message, ASCII
Determines if the Start character shall be used or not
Master Mode and Generic Mode
1200
2400
4800
9600
19200
35700
38400
57600
7, 8
None, Odd, Even
RS232, RS422, RS485
1, 2
Valid settings
0x00–0xFF
Enable / Disable
0x00–0xFF
Enable / Disable
