3-1-5 Connections for Cut Editing

By connecting this unit to a VTR (for example, MSW-
M2000/M2000P or DSR-2000/2000P) and an editing
control unit, you can make up a cut editing system. Some
example connections are shown in the following.
When using an editing control unit

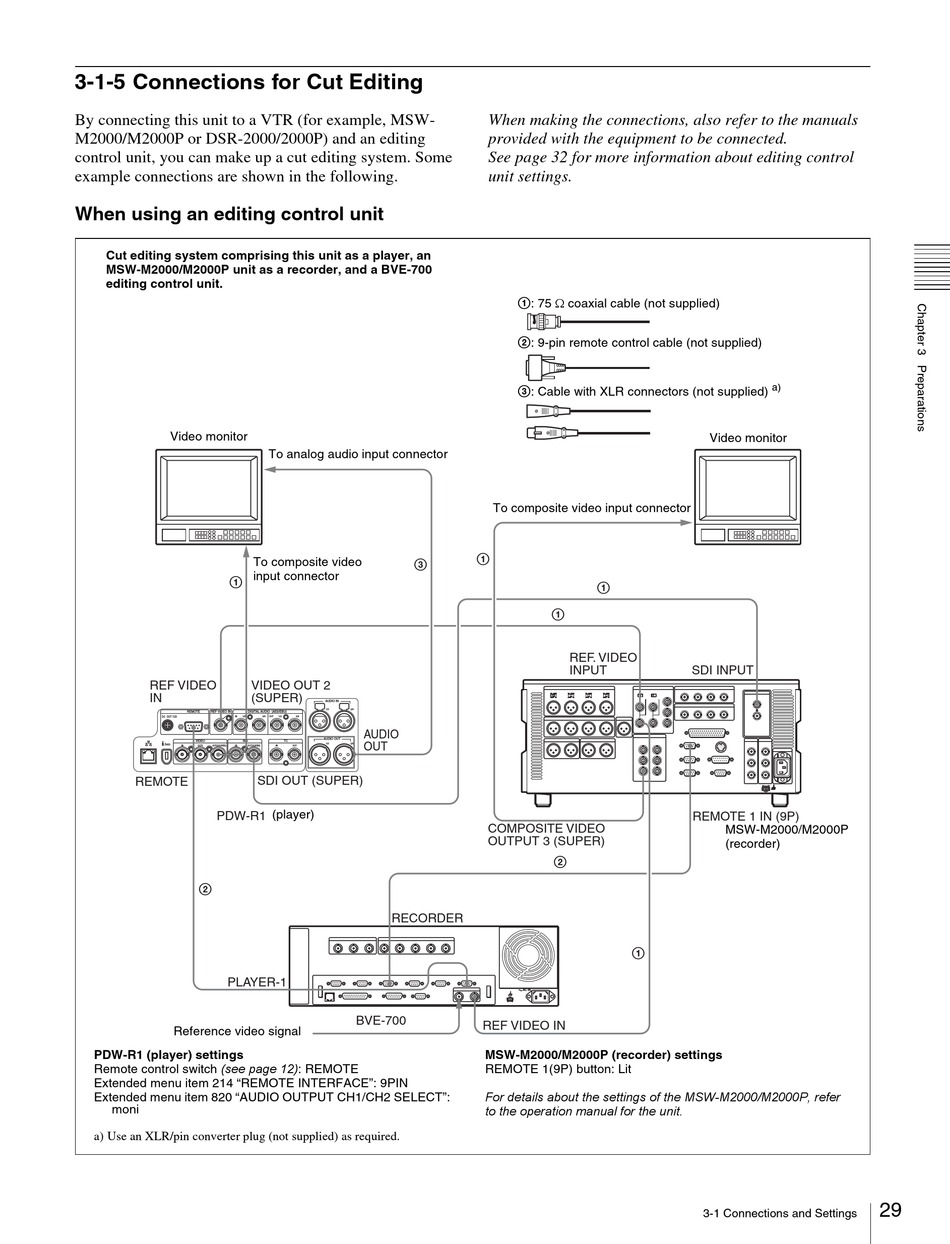

Cut editing system comprising this unit as a player, an
MSW-M2000/M2000P unit as a recorder, and a BVE-700
editing control unit.
Video monitor
To composite video
input connector
1
REF VIDEO VIDEO OUT 2
IN (SUPER)
REMOTE REF VIDEO IN DIGITAL AUDIO (AES/EBU)
IN 1/2
DC OUT 12V
VIDEO SDI
S400
IN OUT1 OUT2(SUPER) IN OUT(SUPER)
REMOTE
PDW-R1
2
PLAYER-1
Reference video signal
PDW-R1 (player) settings
Remote control switch (see page 12): REMOTE
Extended menu item 214 "REMOTE INTERFACE": 9PIN
Extended menu item 820 "AUDIO OUTPUT CH1/CH2 SELECT":
moni
a) Use an XLR/pin converter plug (not supplied) as required.
To analog audio input connector
3
AUDIO IN
1/3 2/4
3/4 OUT 1/2 3/4
AUDIO
AUDIO OUT
TC
1/3 2/4 OUT
IN OUT
SDI OUT (SUPER)
(player)
RECORDER
BVE-700
When making the connections, also refer to the manuals
provided with the equipment to be connected.
See page 32 for more information about editing control
unit settings.
1: 75 Ω coaxial cable (not supplied)
2: 9-pin remote control cable (not supplied)
3: Cable with XLR connectors (not supplied)
To composite video input connector
1
1
1
REF. VIDEO
INPUT
COMPOSITE VIDEO
OUTPUT 3 (SUPER)
2
1
AC IN
REF VIDEO IN
MSW-M2000/M2000P (recorder) settings
REMOTE 1(9P) button: Lit
For details about the settings of the MSW-M2000/M2000P, refer
to the operation manual for the unit.
a)
Video monitor
SDI INPUT
REMOTE 1 IN (9P)
MSW-M2000/M2000P
(recorder)
