Ref. No. Part No. Description

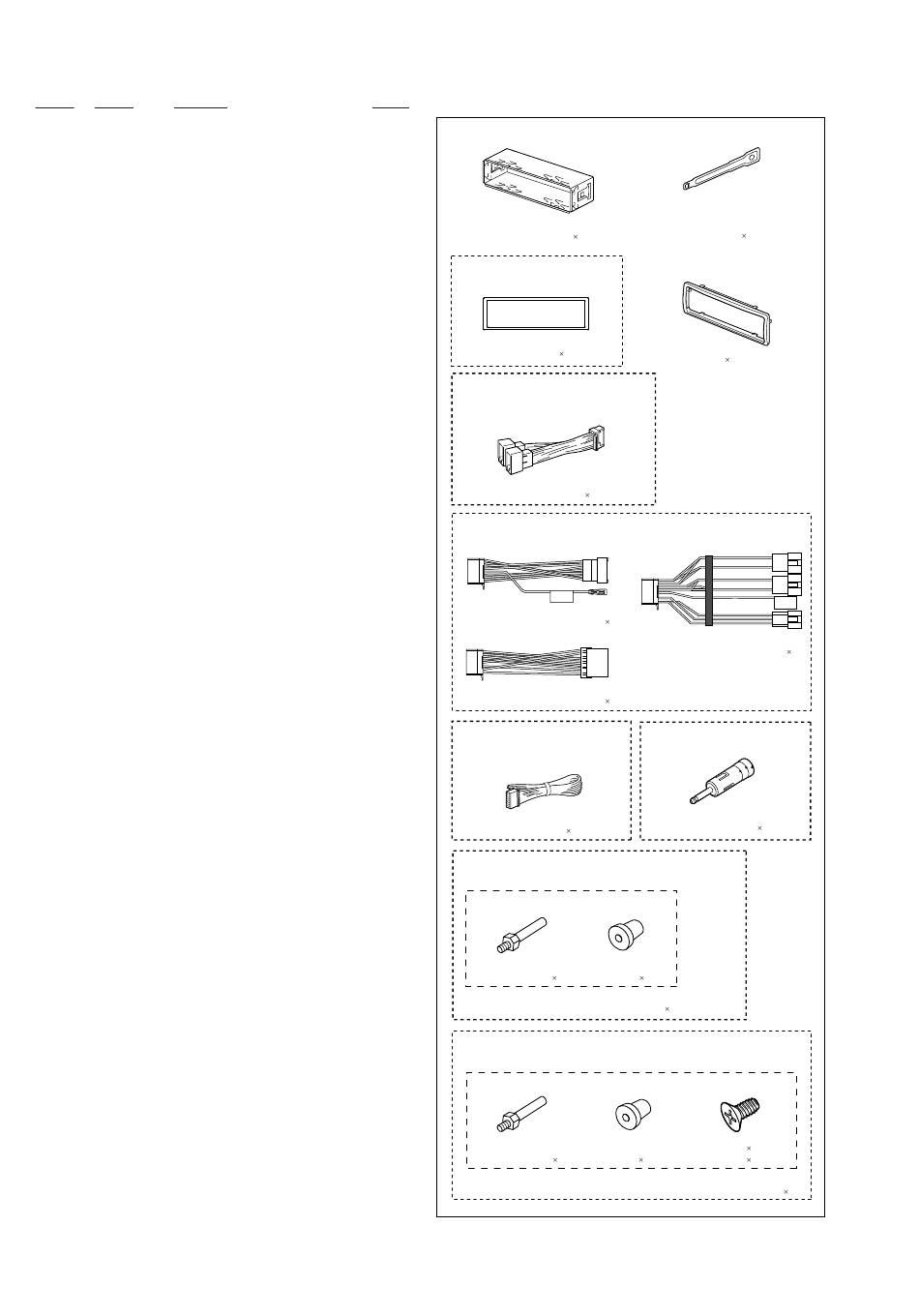

PARTS FOR INSTALLATION AND CONNECTIONS

**************************************
501 X-2583-962-1 FRAME ASSY, FITTING
502 4-276-003-01 KEY (FRAME) (1 piece)
503 3-255-785-02 COLLAR (1DIN) (G1080UM)
504 4-461-753-01 COLLAR
505 1-846-032-11 CONNECTION CABLE (ISO) (POWER)
505 1-846-128-11 CONNECTION CABLE FOR AUTOMOBIL
505 1-846-129-11 CONNECTION CABLE FOR AUTOMOBIL
505 1-846-480-11 CONNECTION CABLE FOR AUTOMOBIL
505 1-846-978-11 CONNECTION CABLE, AUTOMOBILE (POWER)
(G1050U: E, EA, MX, KR/G1051U/G1070U/G1071U)
506 1-465-459-51 ADAPTOR, ANTENNA (G1050U: AR)
507 X-2584-360-1 SCREW ASSY (BS), FITTING
(G1000U/G1000UE/G1001U/G1002U/G1050UE)
507 X-2587-114-1 SCREW ASSY (BS4), FITTING
(G1050U/G1051U/G1070U/G1071U/G1080UM)
508 3-349-410-11 BUSHING
509 3-934-325-21 SCREW, +K (5X8) TAPPING
(G1050U/G1051U/G1070U/G1071U/G1080UM)
40
Remark
(G1000U/G1000UE/G1001U/G1002U/
G1050U: AR/G1050UE)
(POWER) (Type A connector) (G1080UM)
(POWER) (Type B connector) (G1080UM)
(POWER) (Type C connector) (G1080UM)
501
FITTING FRAME ASSY
1
(G1080UM)
503
COLLAR (1DIN)
1
(G1000U/G1000UE/G1001U/
G1002U/G1050U: AR/G1050UE)
505
POWER CORD (ISO)
1
(G1080UM)
505
POWER CORD (Type A connector)
1
505
POWER CORD (Type B connector)
1
(G1050U: E, EA, MX, KR/
G1051U/G1070U/G1071U)
505
POWER CORD
1
(G1000U/G1000UE/G1001U/G1002U/G1050UE)
507
508
FITTING SCREW BUSHING
1
FITTING SCREW ASSY (BS)
(G1050U/G1051U/G1070U/G1071U/G1080UM)
507
508
FITTING SCREW BUSHING
1
502
KEY (FRAME)
2
504
COLLAR
1
505
POWER CORD (Type C connector)
1
(G1050U: AR)
506
ANTENNA ADAPTER
1
1
1
509
+K5 8
1 4
FITTING SCREW ASSY (BS4)
1
