• This unit's S400 connector has 6 pins. Check the
number of pins on the i.LINK connector of your
notebook computer, and use an appropriate i.LINK
cable.
See "Using PDZ-1 Proxy Browsing Software" in Chapter
4 (page 74) for more information about installing the
PDZ-1 software. See the online help of PDZ-1 for more
information about using PDZ-1.
Some limitations apply to FAM connections. For details,
see "File Operations in File Access Mode" in Chapter 5
(page 78).
REF VIDEO INPUT
COMPOSITE OUT
AUDIO MONITOR
R
AUDIO INPUT
AUDIO OUTPUT
1/3
2/4
1/3
2/4
HDSDI INPUT
HDSDI OUTPUT
SDSDI OUTPUT
1
2
MONITOR
Laptop computer
On the computer
Install PDZ-1.

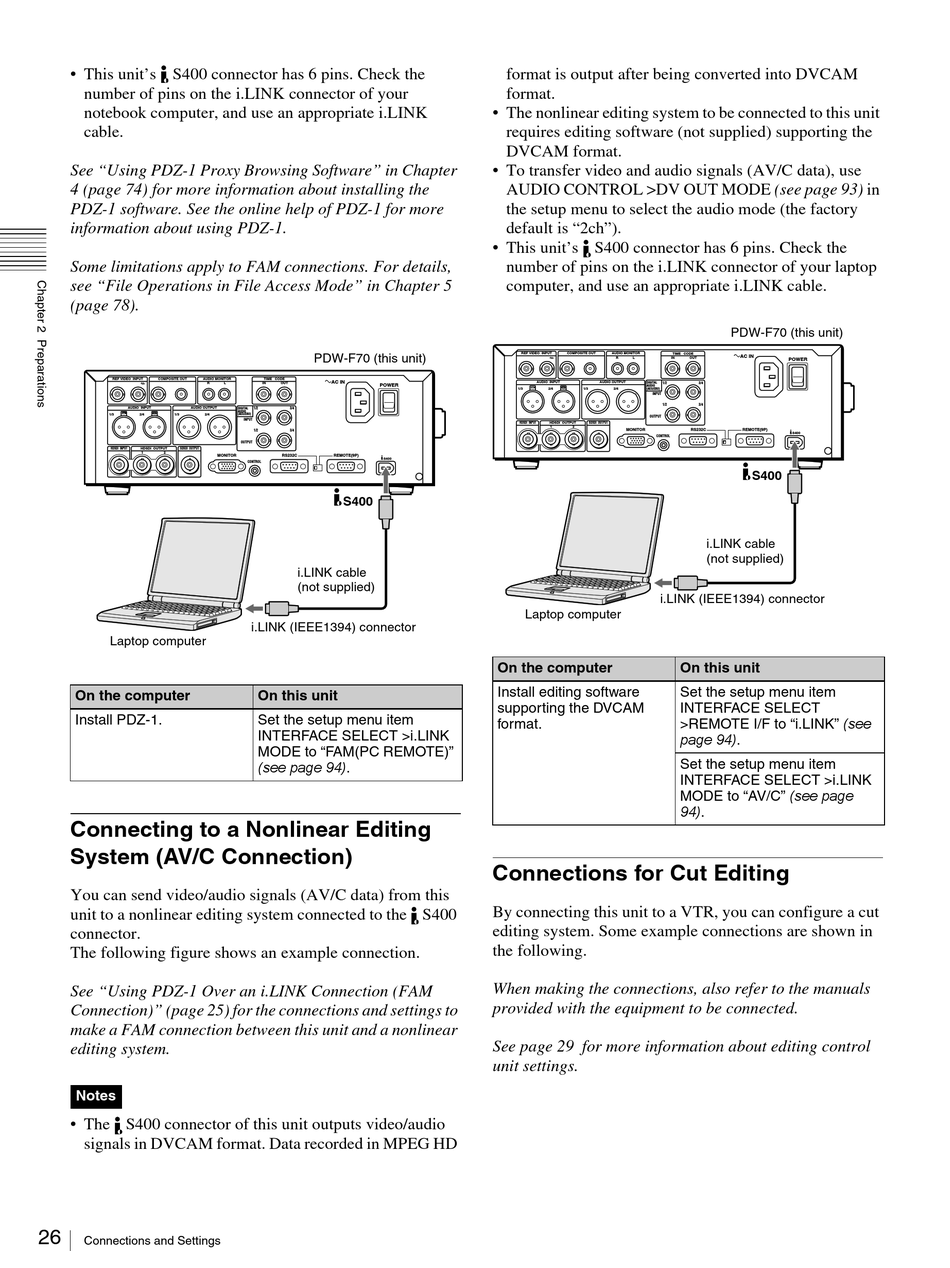

Connecting to a Nonlinear Editing
System (AV/C Connection)
You can send video/audio signals (AV/C data) from this
unit to a nonlinear editing system connected to the S400
connector.
The following figure shows an example connection.
See "Using PDZ-1 Over an i.LINK Connection (FAM
Connection)" (page 25) for the connections and settings to
make a FAM connection between this unit and a nonlinear
editing system.
Notes
• The S400 connector of this unit outputs video/audio
signals in DVCAM format. Data recorded in MPEG HD
26
Connections and Settings
PDW-F70 (this unit)
TIME CODE
-
AC IN
L
IN
OUT
POWER
ANALOG HD INPUT
Y/G
P
B
/R
DIGITAL
1/2
3/4
AUDIO
(AES/EBU)
P
/B
SYNS
B
INPUT
1/2
3/4
OUTPUT
RS232C
REMOTE(9P)
S400
CONTROL
S400
i.LINK cable
(not supplied)
i.LINK (IEEE1394) connector
On this unit
Set the setup menu item
INTERFACE SELECT >i.LINK
MODE to "FAM(PC REMOTE)"
(see page 94).
format is output after being converted into DVCAM
format.
• The nonlinear editing system to be connected to this unit
requires editing software (not supplied) supporting the
DVCAM format.
• To transfer video and audio signals (AV/C data), use
AUDIO CONTROL >DV OUT MODE (see page 93) in
the setup menu to select the audio mode (the factory
default is "2ch").
• This unit's S400 connector has 6 pins. Check the
number of pins on the i.LINK connector of your laptop
computer, and use an appropriate i.LINK cable.
REF VIDEO INPUT
COMPOSITE OUT
AUDIO MONITOR
TIME CODE
R
L
IN
AUDIO INPUT
AUDIO OUTPUT
DIGITAL
1/2
AUDIO
1/3
2/4
1/3
2/4
(AES/EBU)
INPUT
1/2
OUTPUT
HDSDI INPUT
HDSDI OUTPUT
SDSDI OUTPUT
1
2
MONITOR
CONTROL
i.LINK (IEEE1394) connector
Laptop computer
On the computer
Install editing software
supporting the DVCAM
format.

Connections for Cut Editing

By connecting this unit to a VTR, you can configure a cut
editing system. Some example connections are shown in
the following.
When making the connections, also refer to the manuals
provided with the equipment to be connected.
See page 29 for more information about editing control
unit settings.
PDW-F70 (this unit)
-
AC IN
OUT
POWER
ANALOG HD INPUT
Y/G
P
/R
B
3/4
P
/B
SYNS
B
3/4
RS232C
REMOTE(9P)
S400
S400
i.LINK cable
(not supplied)
On this unit
Set the setup menu item
INTERFACE SELECT
>REMOTE I/F to "i.LINK" (see
page 94).
Set the setup menu item
INTERFACE SELECT >i.LINK
MODE to "AV/C" (see page
94).
