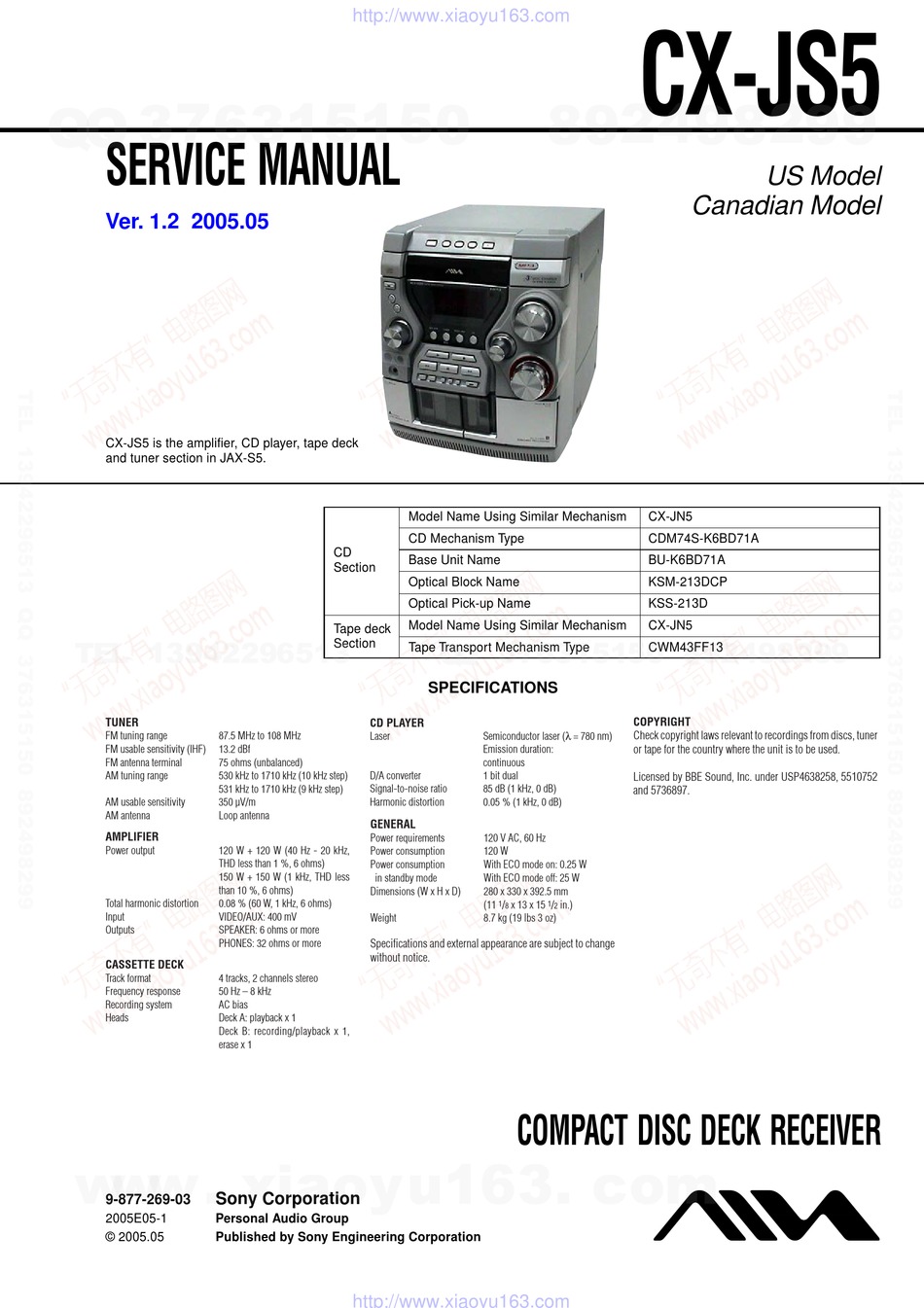

SERVICE MANUAL
Ver. 1.2 2005.05
CX-JS5 is the amplifier, CD player, tape deck
and tuner section in JAX-S5.
TE
L 13942296513
TUNER
FM tuning range
87.5 MHz to 108 MHz
FM usable sensitivity (IHF)
13.2 dBf
FM antenna terminal
75 ohms (unbalanced)
AM tuning range
530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1710 kHz (9 kHz step)
AM usable sensitivity
350 µV/m
AM antenna
Loop antenna
AMPLIFIER
Power output
120 W + 120 W (40 Hz - 20 kHz,
THD less than 1 %, 6 ohms)
150 W + 150 W (1 kHz, THD less
than 10 %, 6 ohms)
Total harmonic distortion
0.08 % (60 W, 1 kHz, 6 ohms)
Input
VIDEO/AUX: 400 mV
Outputs
SPEAKER: 6 ohms or more
PHONES: 32 ohms or more
CASSETTE DECK
Track format
4 tracks, 2 channels stereo
Frequency response
50 Hz – 8 kHz
Recording system
AC bias
Heads
Deck A: playback x 1
Deck B: recording/playback x 1,
erase x 1
www
.
Sony Corporation
9-877-269-03
2005E05-1
Personal Audio Group
© 2005.05
Published by Sony Engineering Corporation
http://www.xiaoyu163.com
Model Name Using Similar Mechanism
CD Mechanism Type
CD
Base Unit Name
Section
Optical Block Name
Optical Pick-up Name
Model Name Using Similar Mechanism
Tape deck
Section
Tape Transport Mechanism Type
CD PLAYER
Laser
D/A converter
Signal-to-noise ratio
Harmonic distortion
GENERAL
Power requirements
Power consumption
Power consumption
in standby mode
Dimensions (W x H x D)
Weight
Specifications and external appearance are subject to change
without notice.
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8
Q Q
3
6 7
1 3
1 5
SPECIFICATIONS
Semiconductor laser (λ = 780 nm)
Emission duration:
continuous
1 bit dual
85 dB (1 kHz, 0 dB)
0.05 % (1 kHz, 0 dB)
120 V AC, 60 Hz
120 W
With ECO mode on: 0.25 W
With ECO mode off: 25 W
280 x 330 x 392.5 mm
(11
1
/
x 13 x 15
1
/
in.)
8
2
8.7 kg (19 lbs 3 oz)
COMPACT DISC DECK RECEIVER
co
.
CX-JS5
9 4
2 8
US Model
Canadian Model
CX-JN5
CDM74S-K6BD71A
BU-K6BD71A
KSM-213DCP
KSS-213D
CX-JN5
0 5
8
2 9
9 4
2 8
CWM43FF13
COPYRIGHT
Check copyright laws relevant to recordings from discs, tuner
or tape for the country where the unit is to be used.
Licensed by BBE Sound, Inc. under USP4638258, 5510752
and 5736897.
m
9 9
9 9
