5.5

MMA welding

Risk of crushing and burns!
When changing stick electrodes there is a risk of crushing and burns!
•
Wear appropriate and dry protective gloves.
•
Use an insulated pair of tongs to remove the used stick electrode or to move welded
workpieces.

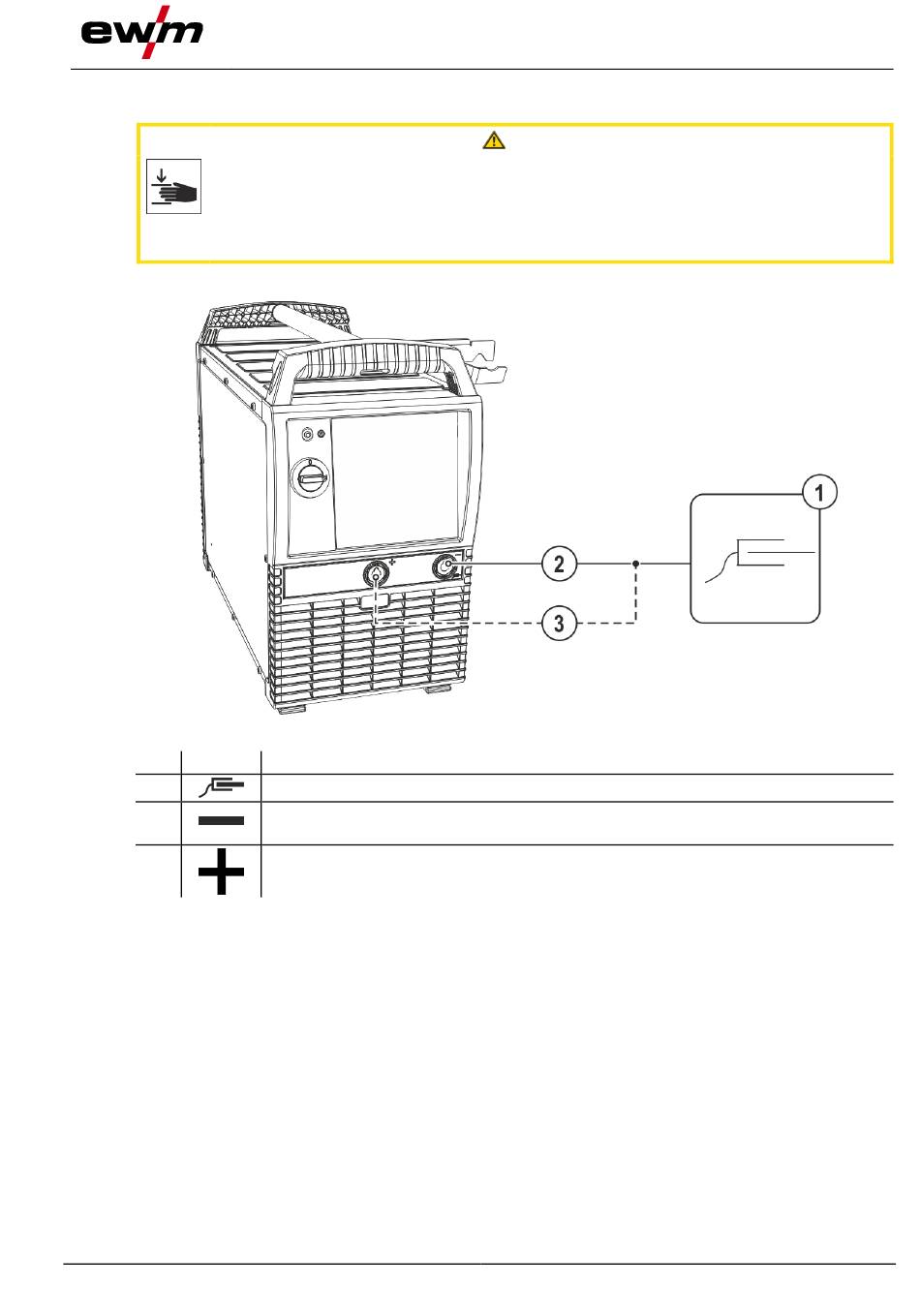

5.5.1

Connection for workpiece lead

Item Symbol
1
2
3
•
Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Polarity depends on the instructions from the electrode manufacturer given on the electrode packaging.
5.5.2

Electrode holder connection

For connection description, see the relevant "Wire feeder" operating instructions.
5.5.3

Welding task selection

For selection of the welding task and for general operation see the relevant Control operating instructions.
099-005589-EW501
20.03.2019
Description 0
Workpiece
Connection socket, welding current "–"
Connection socket, "+" welding current
Design and function
CAUTION
Figure 5-11
MMA welding
29
