Air arc gouging

5.6 Air arc gouging
During gouging, an arc burns between a carbon electrode and the workpiece, heating the workpiece until
it is molten. At the same time, the molten metal is blown out with compressed air. Special electrode
holders with a compressed-air connection and carbon electrodes are required for gouging.
5.6.1

Connection for workpiece lead

Item Symbol
1
2
3
•
Insert cable plug on the workpiece lead into the "-" welding current socket and lock by turning to the
right.
Polarity depends on the instructions from the electrode manufacturer given on the electrode packaging.
5.6.2

Connecting gouging torch

For connection description, see the relevant "Wire feeder" operating instructions.
5.6.3

Welding task selection

For selection of the welding task and for general operation see the relevant Control operating instructions.
30
Description 0
Workpiece
Connection socket, "+" welding current
Connection socket, welding current "–"

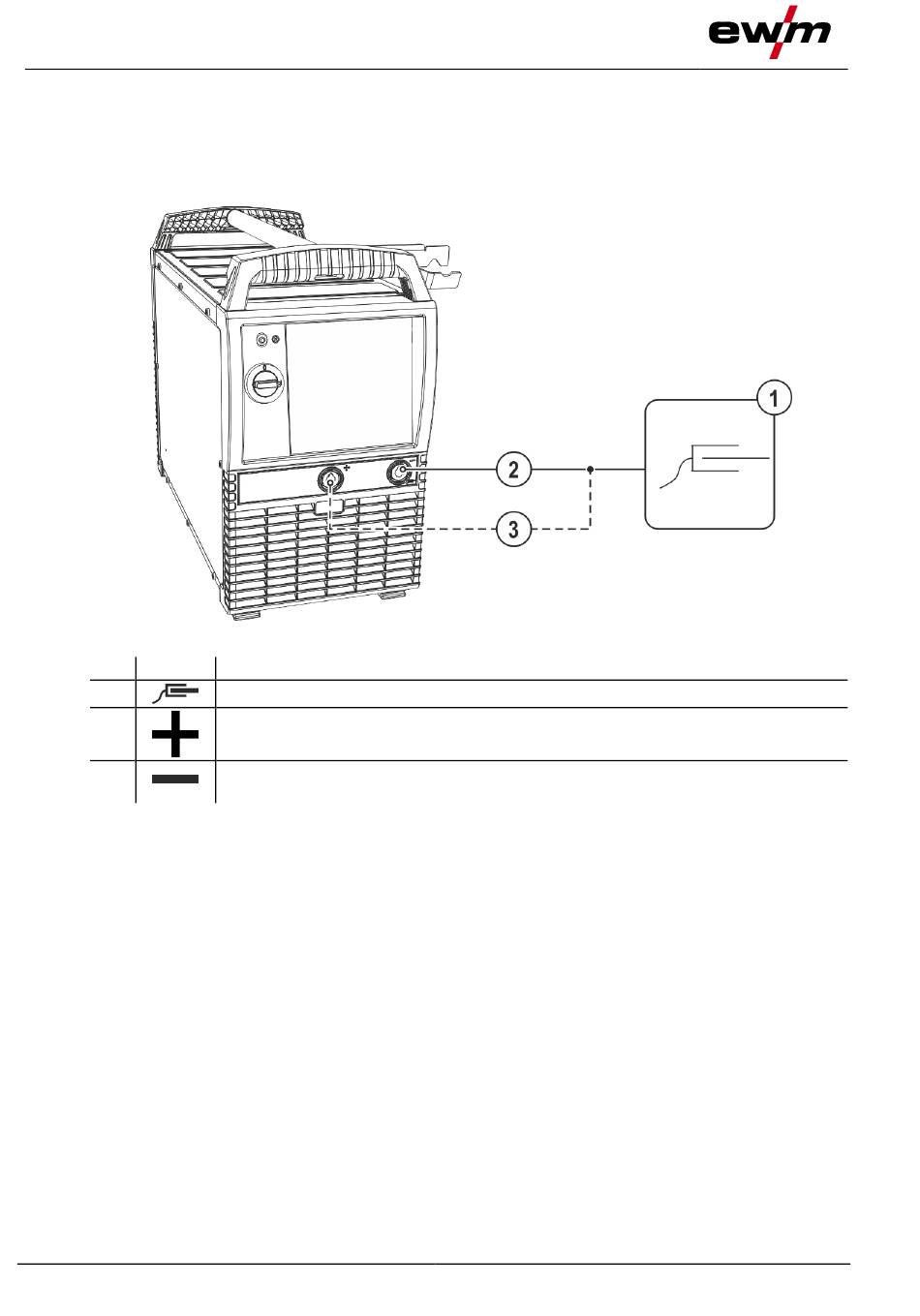

Figure 5-12
