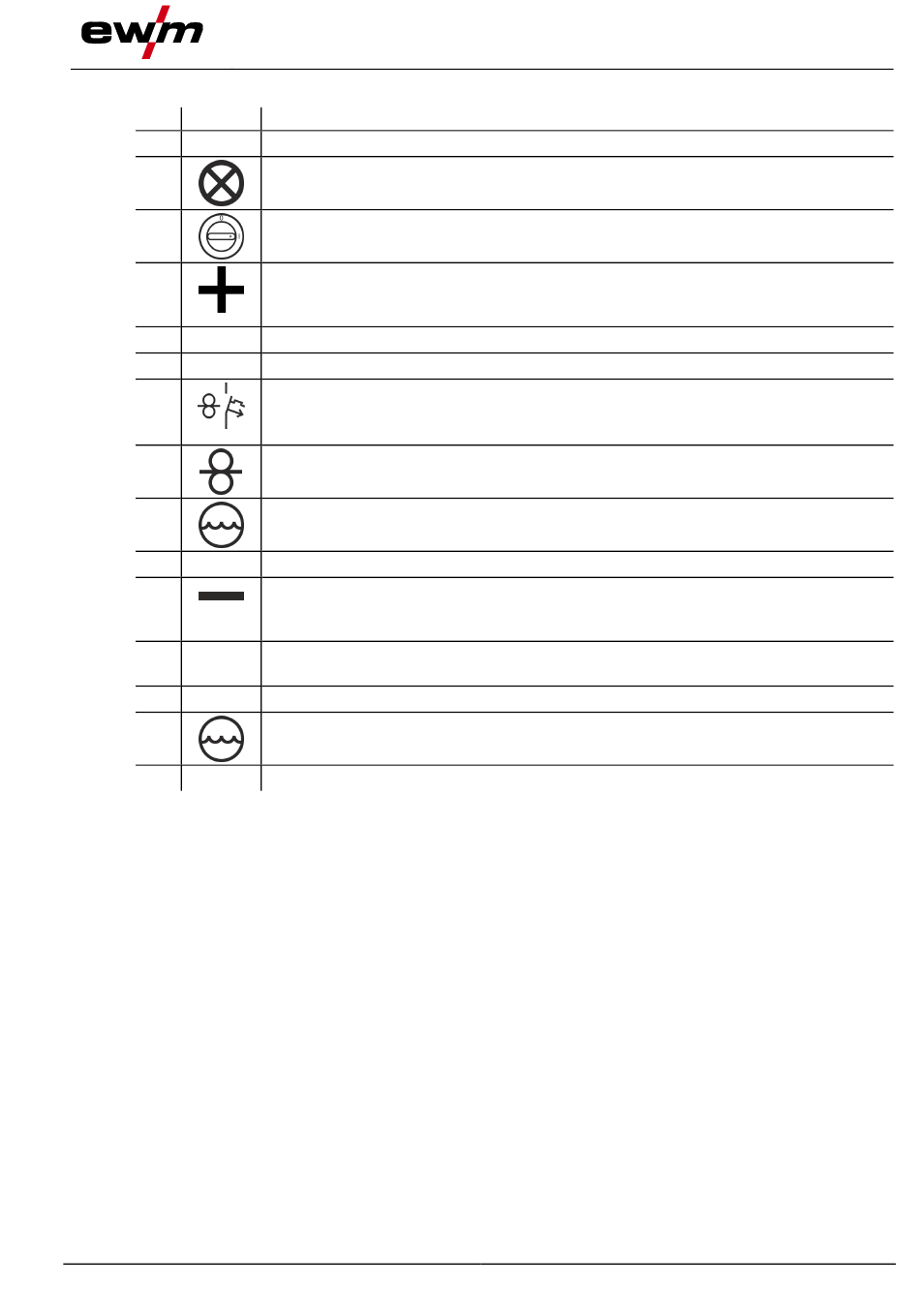

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
099-005589-EW501
20.03.2019
Machine description – quick overview
Description 0
Carrying handle
Ready for operation signal light
Signal light on when the machine is switched on and ready for operation
Main switch, machine on/off
Connection socket, "+" welding current
How to connect the accessories depends on the welding procedure. Please observe
the connection description for the corresponding welding procedure > see 5 chapter.
Cooling air inlet
Machine feet
Key button, Automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
7-pole connection socket (digital)
Wire feed unit connection
8-pole connection socket
Cooling unit control lead
Cooling air outlet
Connection socket, "-" welding current
How to connect the accessories depends on the welding procedure. Please observe
the connection description for the corresponding welding procedure > see 5 chapter.
Stirrup
Intermediate hose package strain relief
Mains connection cable > see 5.3.7 chapter
4-pole connection socket
Cooling unit voltage supply
Torch holder
Front view / rear view
