Mains connection

Hazards caused by improper mains connection!
An improper mains connection can cause injuries or damage property!
•
The connection (mains plug or cable), the repair or voltage adjustment of the device must
be carried out by a qualified electrician in accordance with the respective local laws or
national regulations!
•
The mains voltage indicated on the rating plate must match the supply voltage.
•
Only operate machine using a socket that has correctly fitted protective earth.
•
Mains plug, socket and lead must be checked by a qualified electrician on a regular basis!
•
When operating the generator, always ensure it is earthed as stipulated in the operating
instructions. The network created must be suitable for operating machines according to
protection class I.
5.3.7.1

Mains configuration

The machine may be connected to:
•
a three-phase system with four conductors and an earthed neutral conductor
•
a three-phase system with three conductors of which any one can be earthed,
e.g. the outer conductor
Legend
Item Designation
L1 Outer conductor 1
L2 Outer conductor 2
L3 Outer conductor 3
N Neutral conductor
PE Protective conductor
•
Insert mains plug of the switched-off machine into the appropriate socket.
099-005589-EW501
20.03.2019
Design and function
DANGER

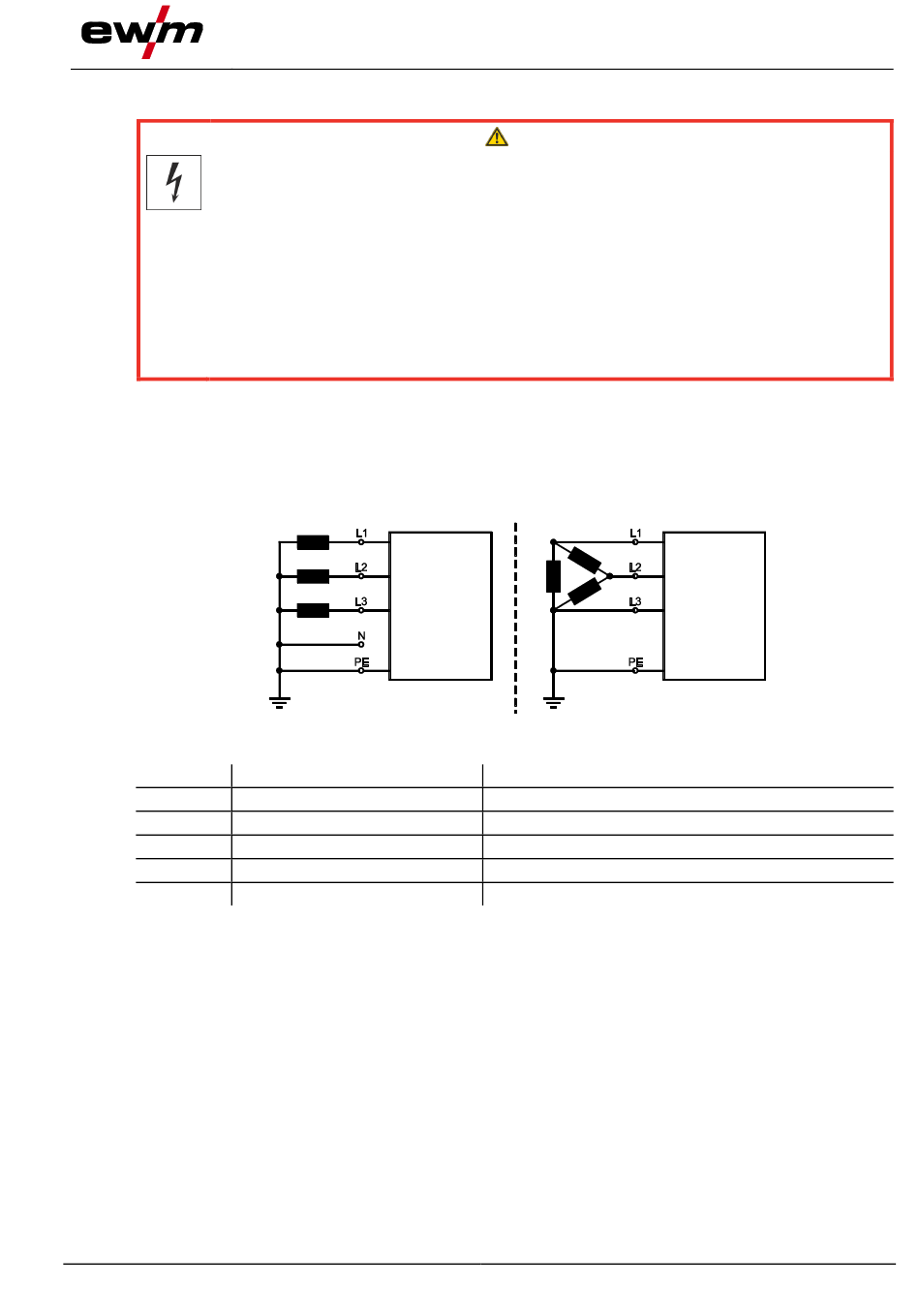

Figure 5-5
Colour code
brown
black
grey
blue
green-yellow
Transport and installation
25
