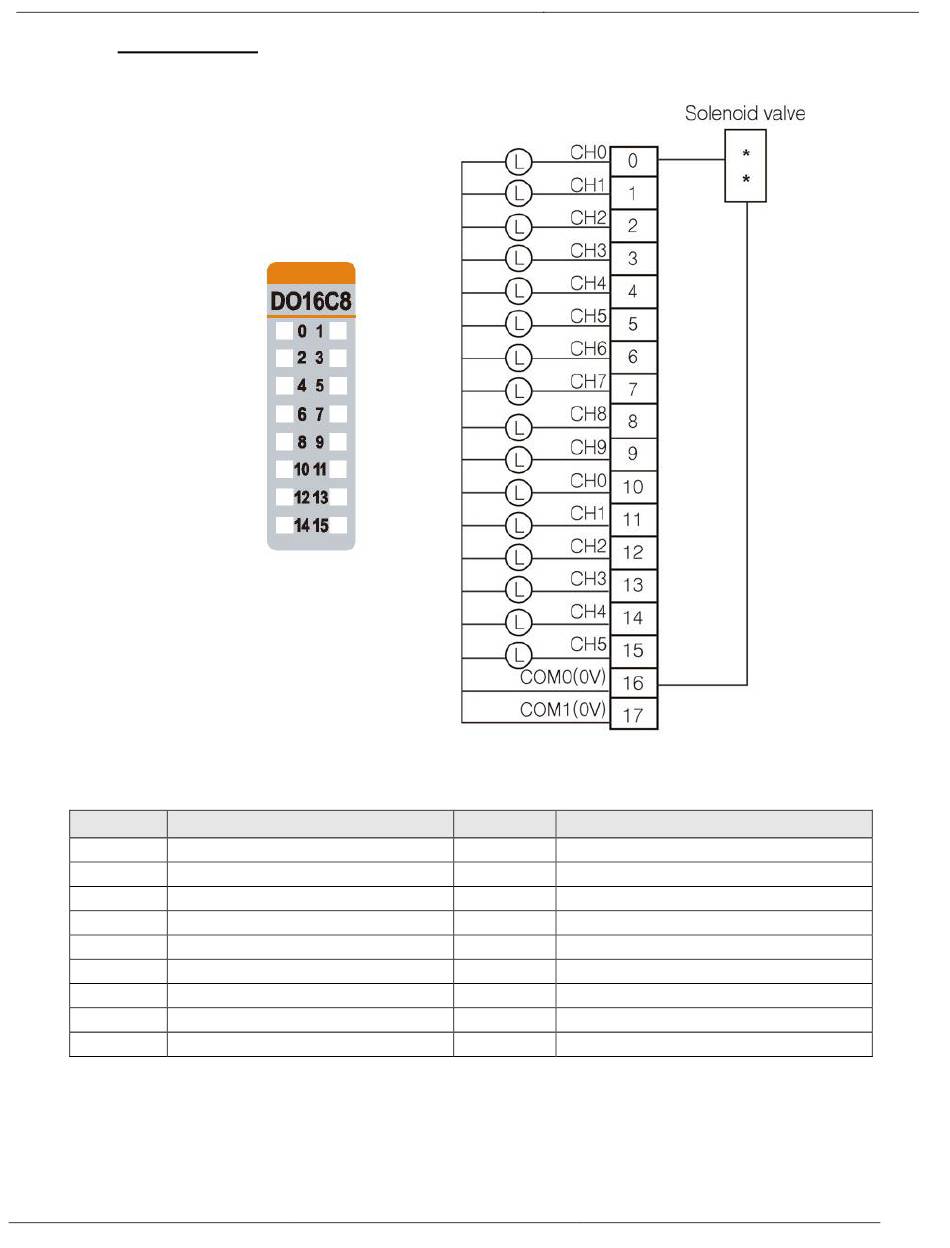

1. Wiring Diagram

Pin No.
0 Output 0
2 Output 2
4 Output 4
6 Output 6
8 Output 8
10 Output 10
12 Output 12
14 Output 14
16 Common (Field Power 0V)
Unitronics
Signal Description Pin No. Signal Description
1 Output 1
3 Output 3
5 Output 5
7 Output 7
9 Output 9
11 Output 11
13 Output 13
15 Output 15
17 Common (Field Power 0V)
