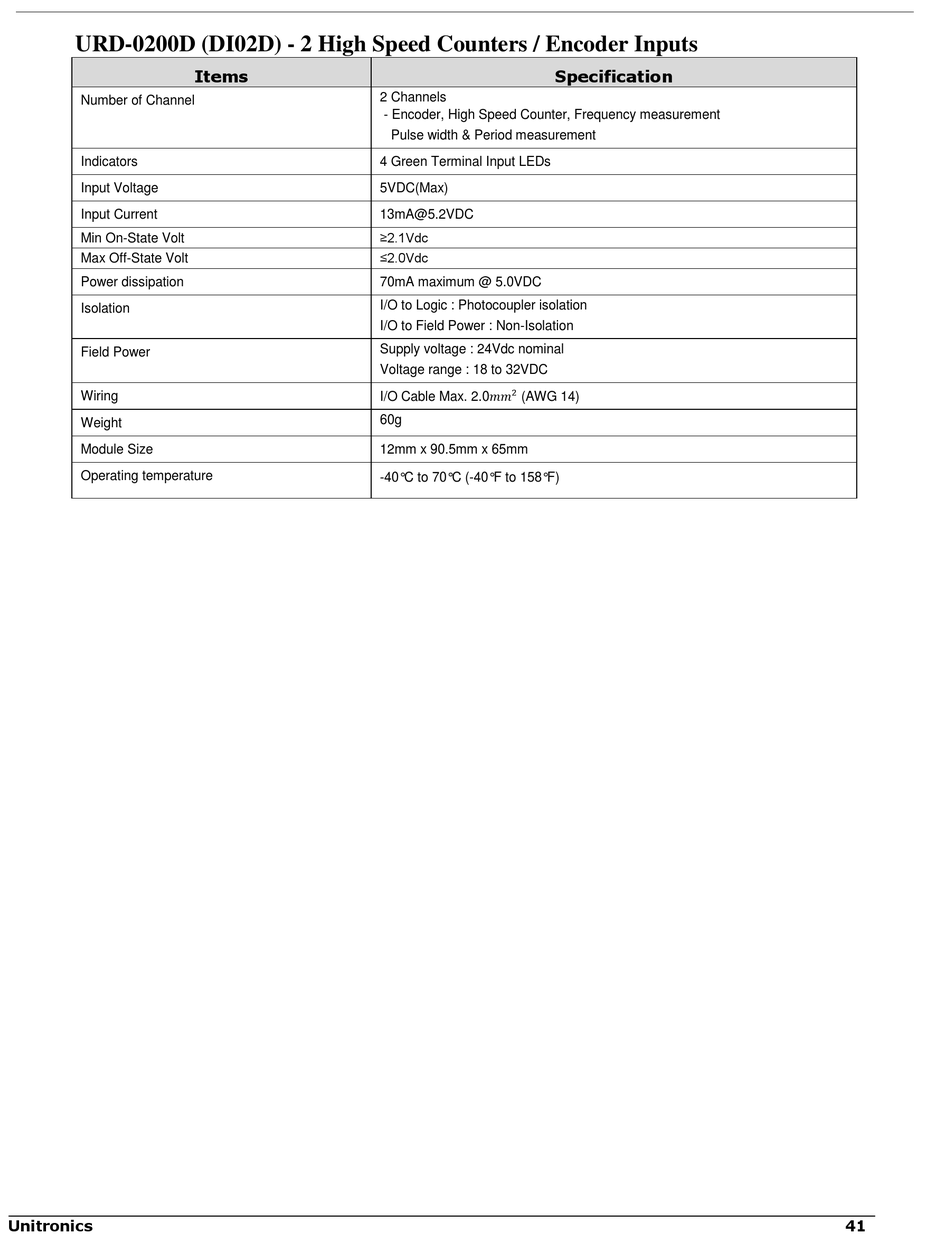

URD-0200D (DI02D) - 2 High Speed Counters / Encoder Inputs

Number of Channel
Indicators
Input Voltage
Input Current
Min On-State Volt
Max Off-State Volt
Power dissipation
Isolation
Field Power
Wiring
Weight
Module Size
Operating temperature
Unitronics
Items Specification
2 Channels
- Encoder, High Speed Counter, Frequency measurement
Pulse width & Period measurement
4 Green Terminal Input LEDs
5VDC(Max)
13mA@5.2VDC
≥2.1Vdc
≤2.0Vdc
70mA maximum @ 5.0VDC
I/O to Logic : Photocoupler isolation
I/O to Field Power : Non-Isolation
Supply voltage : 24Vdc nominal
Voltage range : 18 to 32VDC
2
I/O Cable Max. 2.0���� (AWG 14)
60g
12mm x 90.5mm x 65mm
-40°C to 70°C (-40°F to 158°F)
