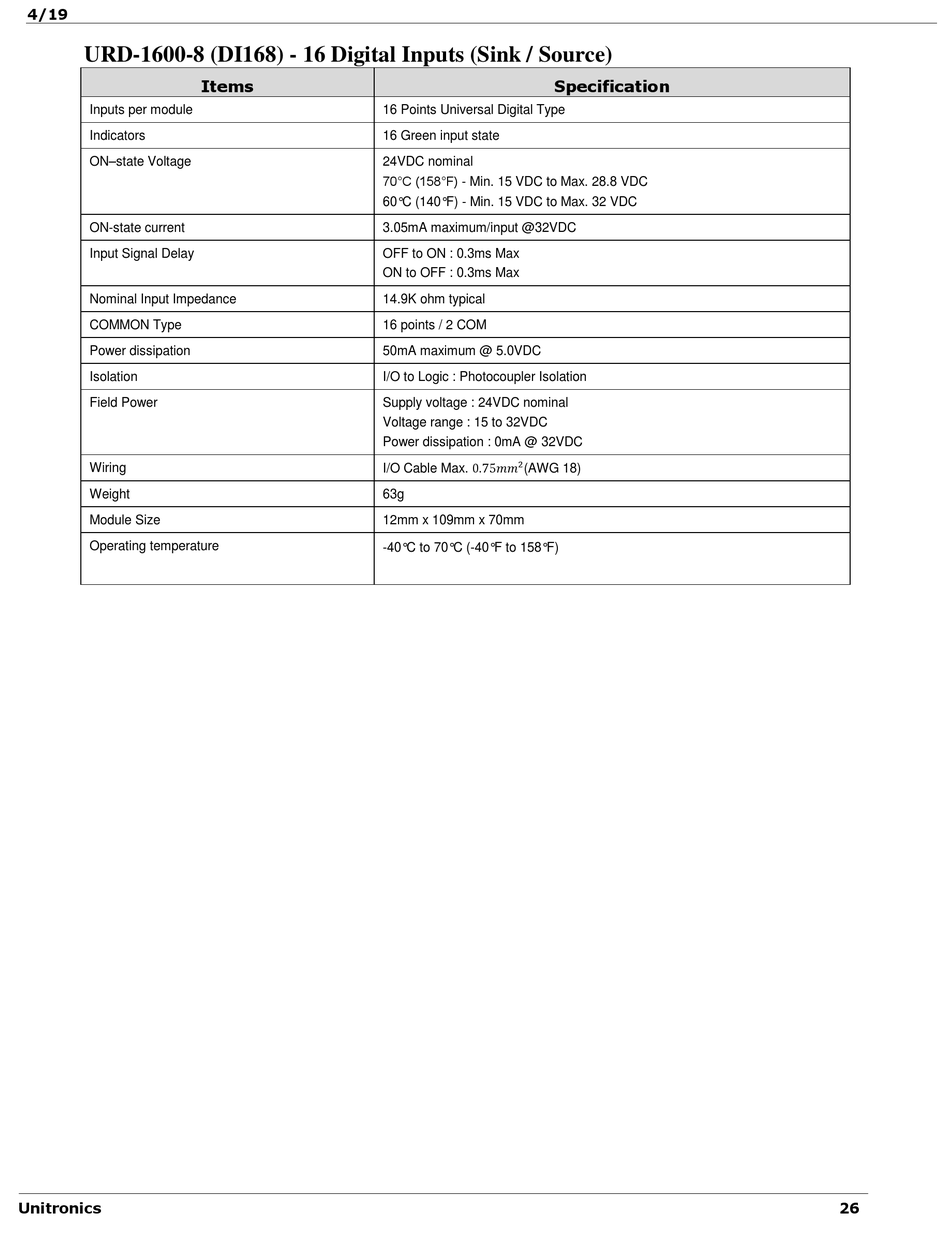

URD-1600-8 (DI168) - 16 Digital Inputs (Sink / Source)

Inputs per module
Indicators
ON–state Voltage
ON-state current
Input Signal Delay
Nominal Input Impedance
COMMON Type
Power dissipation
Isolation
Field Power
Wiring
Weight
Module Size
Operating temperature
Unitronics
Items Specification
16 Points Universal Digital Type
16 Green input state
24VDC nominal
70°C (158°F) - Min. 15 VDC to Max. 28.8 VDC
60°C (140°F) - Min. 15 VDC to Max. 32 VDC
3.05mA maximum/input @32VDC
OFF to ON : 0.3ms Max
ON to OFF : 0.3ms Max
14.9K ohm typical
16 points / 2 COM
50mA maximum @ 5.0VDC
I/O to Logic : Photocoupler Isolation
Supply voltage : 24VDC nominal
Voltage range : 15 to 32VDC
Power dissipation : 0mA @ 32VDC
2
I/O Cable Max. 0.75����
(AWG 18)
63g
12mm x 109mm x 70mm
-40°C to 70°C (-40°F to 158°F)
