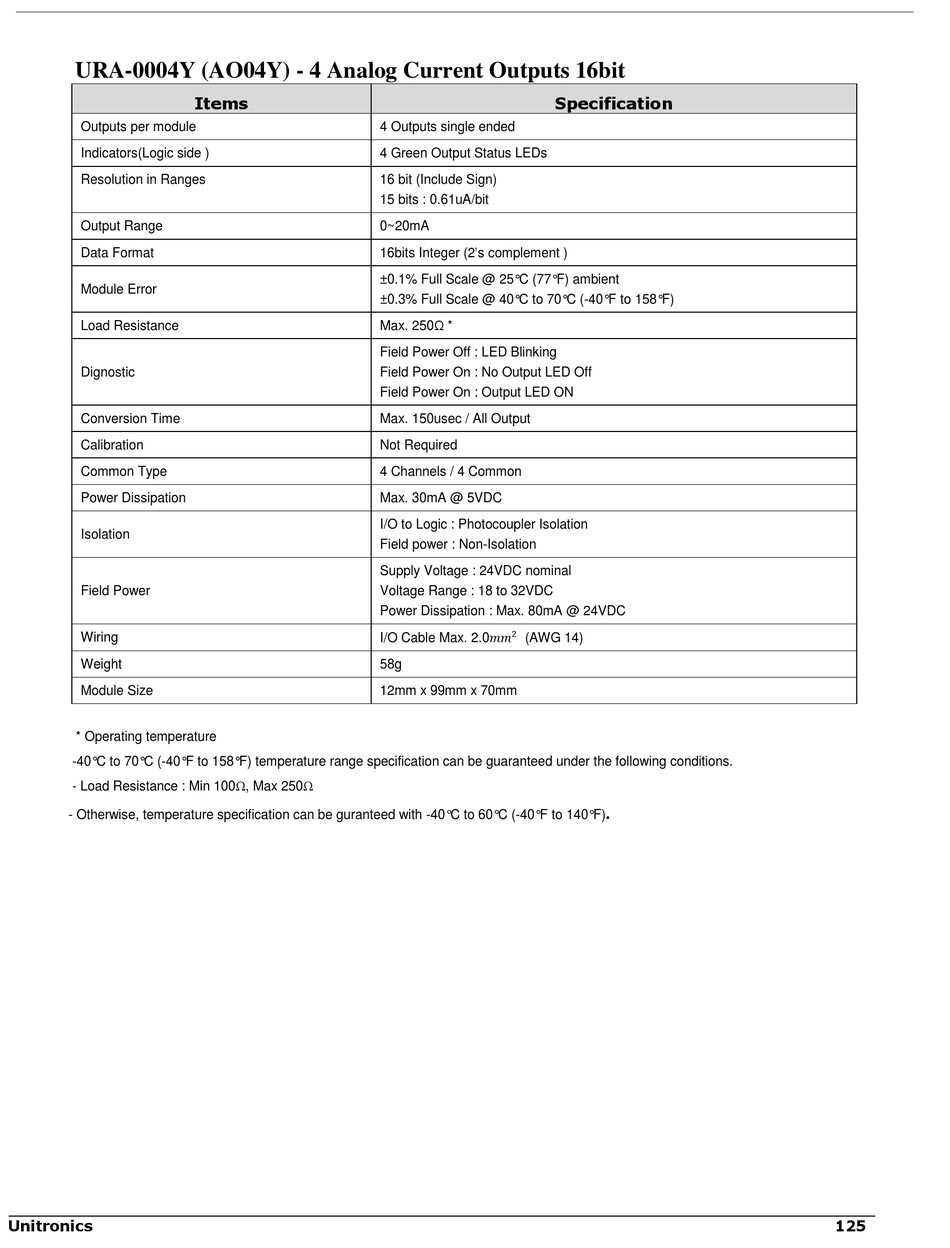

URA-0004Y (AO04Y) - 4 Analog Current Outputs 16bit

Outputs per module
Indicators(Logic side )
Resolution in Ranges
Output Range
Data Format
Module Error
Load Resistance
Dignostic
Conversion Time
Calibration
Common Type
Power Dissipation
Isolation
Field Power
Wiring
Weight
Module Size
* Operating temperature
-40°C to 70°C (-40°F to 158°F) temperature range specification can be guaranteed under the following conditions.
- Load Resistance : Min 100Ω, Max 250Ω
- Otherwise, temperature specification can be guranteed with -40°C to 60°C (-40°F to 140°F)
Unitronics
Items Specification
4 Outputs single ended
4 Green Output Status LEDs
16 bit (Include Sign)
15 bits : 0.61uA/bit
0~20mA
16bits Integer (2's complement )
±0.1% Full Scale @ 25°C (77°F) ambient
±0.3% Full Scale @ 40°C to 70°C (-40°F to 158°F)
Max. 250Ω *
Field Power Off : LED Blinking
Field Power On : No Output LED Off
Field Power On : Output LED ON
Max. 150usec / All Output
Not Required
4 Channels / 4 Common
Max. 30mA @ 5VDC
I/O to Logic : Photocoupler Isolation
Field power : Non-Isolation
Supply Voltage : 24VDC nominal
Voltage Range : 18 to 32VDC
Power Dissipation : Max. 80mA @ 24VDC
2
I/O Cable Max. 2.0���� (AWG 14)
58g
12mm x 99mm x 70mm
.
