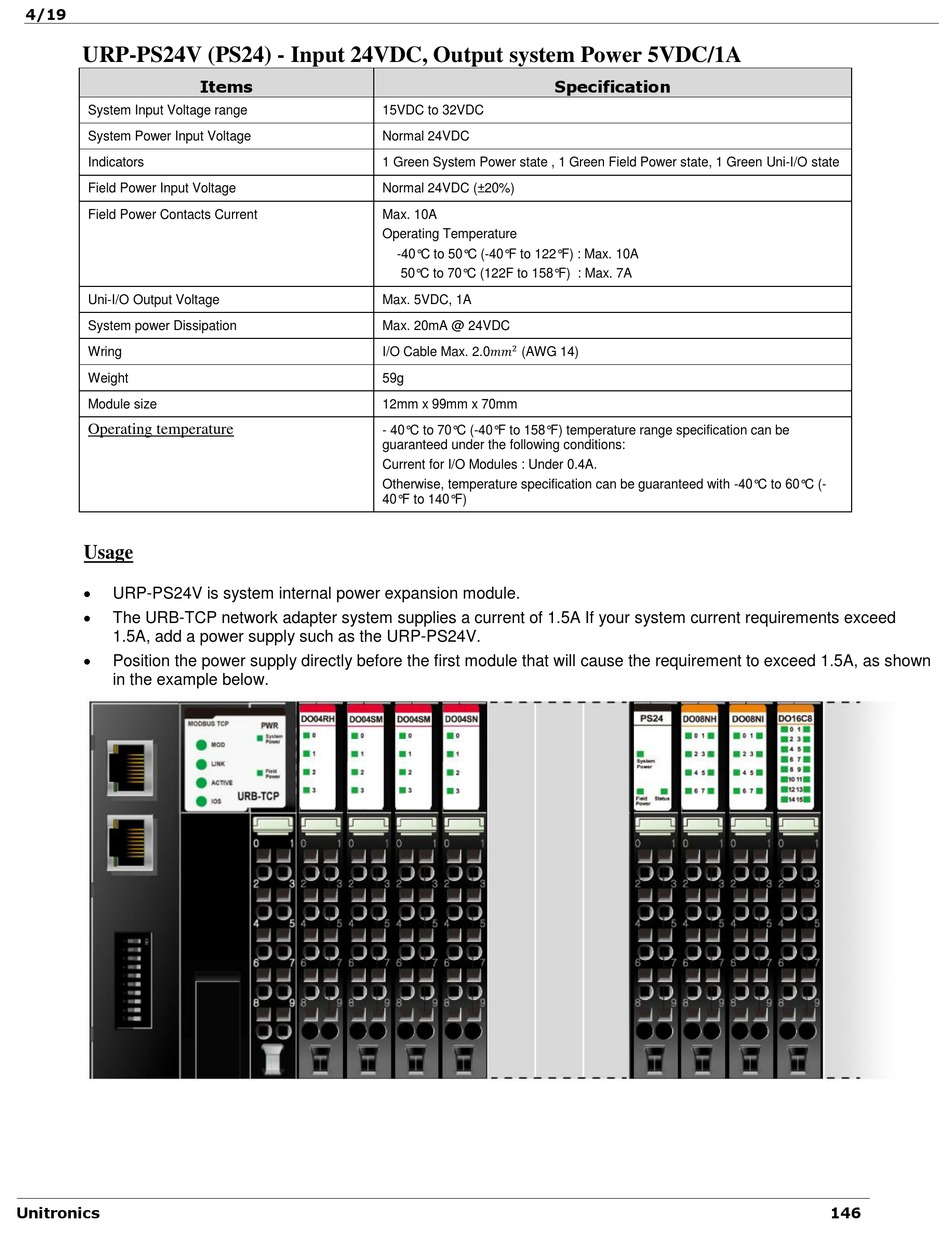

URP-PS24V (PS24) - Input 24VDC, Output system Power 5VDC/1A

System Input Voltage range
System Power Input Voltage
Indicators
Field Power Input Voltage
Field Power Contacts Current
Uni-I/O Output Voltage
System power Dissipation
Wring
Weight
Module size
Operating temperature

Usage


URP-PS24V is system internal power expansion module.

The URB-TCP network adapter system supplies a current of 1.5A If your system current requirements exceed
1.5A, add a power supply such as the URP-PS24V.

Position the power supply directly before the first module that will cause the requirement to exceed 1.5A, as shown
in the example below.
Unitronics
Items Specification
15VDC to 32VDC
Normal 24VDC
1 Green System Power state , 1 Green Field Power state, 1 Green Uni-I/O state
Normal 24VDC (±20%)
Max. 10A
Operating Temperature
-40°C to 50°C (-40°F to 122°F) : Max. 10A
50°C to 70°C (122F to 158°F) : Max. 7A
Max. 5VDC, 1A
Max. 20mA @ 24VDC
2
I/O Cable Max. 2.0���� (AWG 14)
59g
12mm x 99mm x 70mm
- 40°C to 70°C (-40°F to 158°F) temperature range specification can be
guaranteed under the following conditions:
Current for I/O Modules : Under 0.4A.
Otherwise, temperature specification can be guaranteed with -40°C to 60°C (-
40°F to 140°F)
