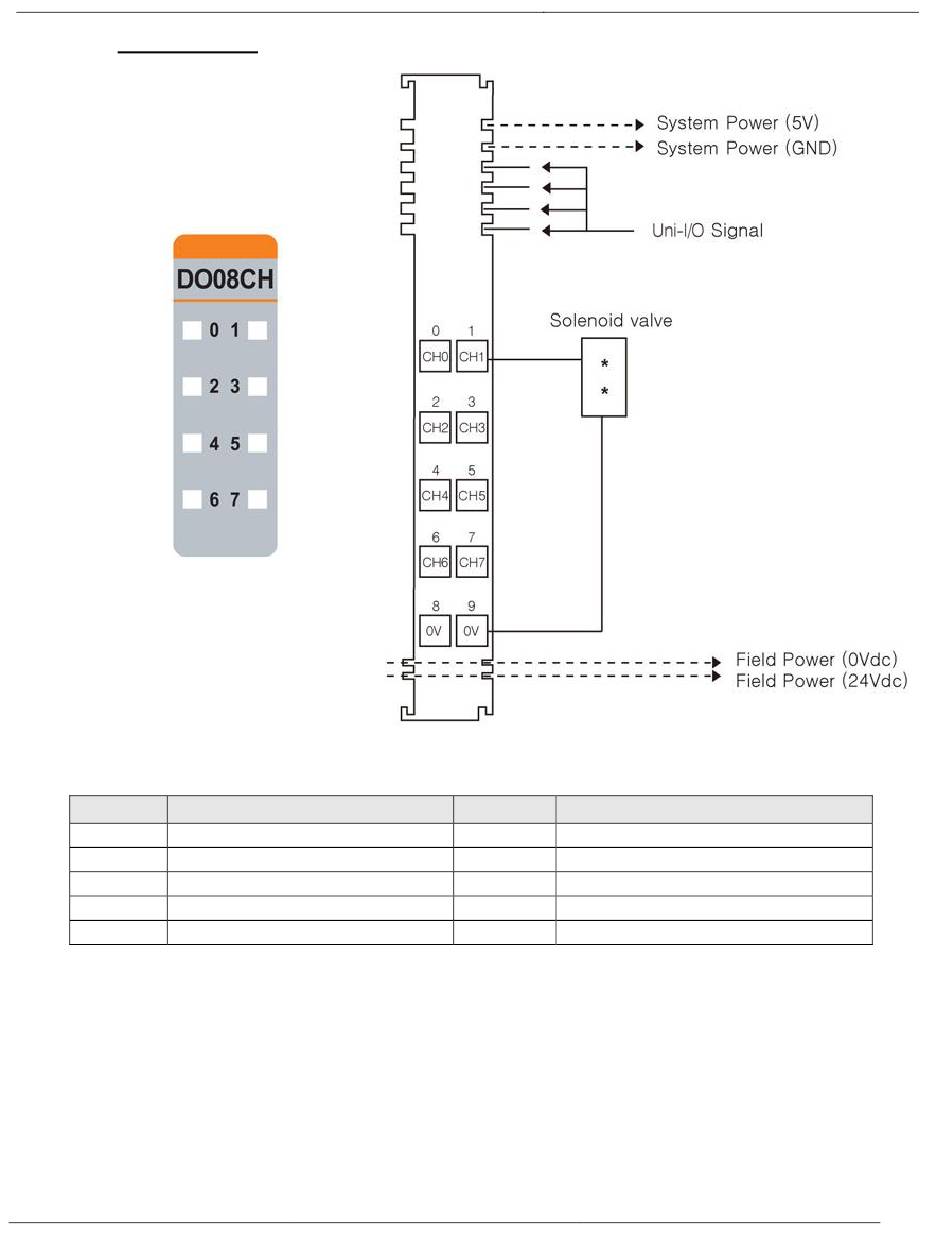

1. Wiring Diagram

Pin No.

0

Output 0

2

Output 2

4

Output 4

6

Output 6

8

Common (Field Power 0V)

Unitronics

Signal Description

Pin No.

Signal Description

1

Output 1

3

Output 3

5

Output 5

7

Output 7

9

Common (Field Power 0V)

45
