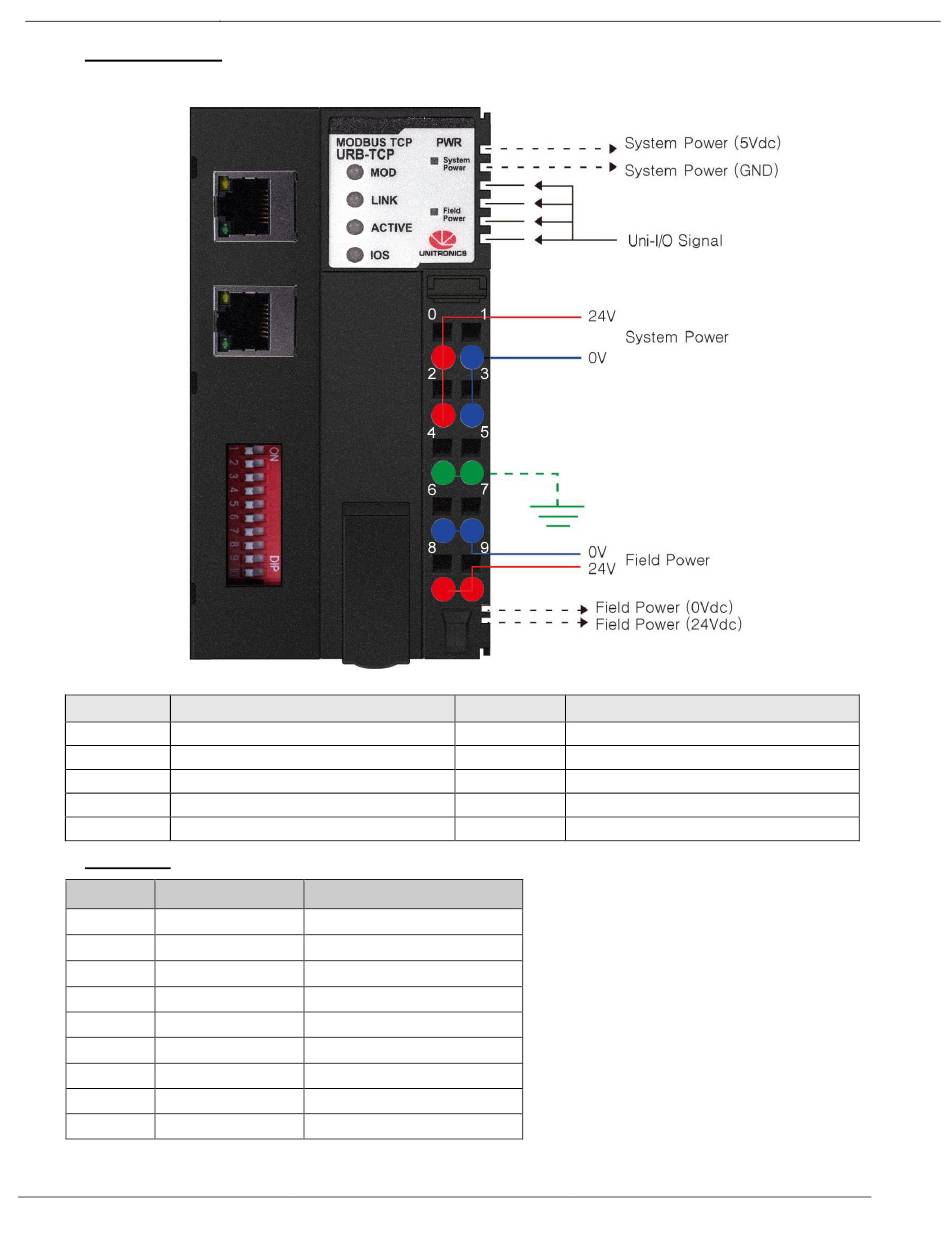

Wiring Diagram

Pin No.
0 System Power, 24V
2 System Power, 24V
4 F.G
6 Field Power, Ground
8 Field Power, 24V

RJ45 Socket

RJ-45 Signal Name
1 TD+
2 TD-
3 RD+
4 -
5 -
6 RD-
7 -
8 -
Case Shield
Unitronics
Signal Description
Description
Transmit +
Transmit -
Receive +
Receive -
Pin No. Signal Description
1 System Power, Ground
3 System Power, Ground
5 F.G
7 Field Power, Ground
9 Field Power, 24V
