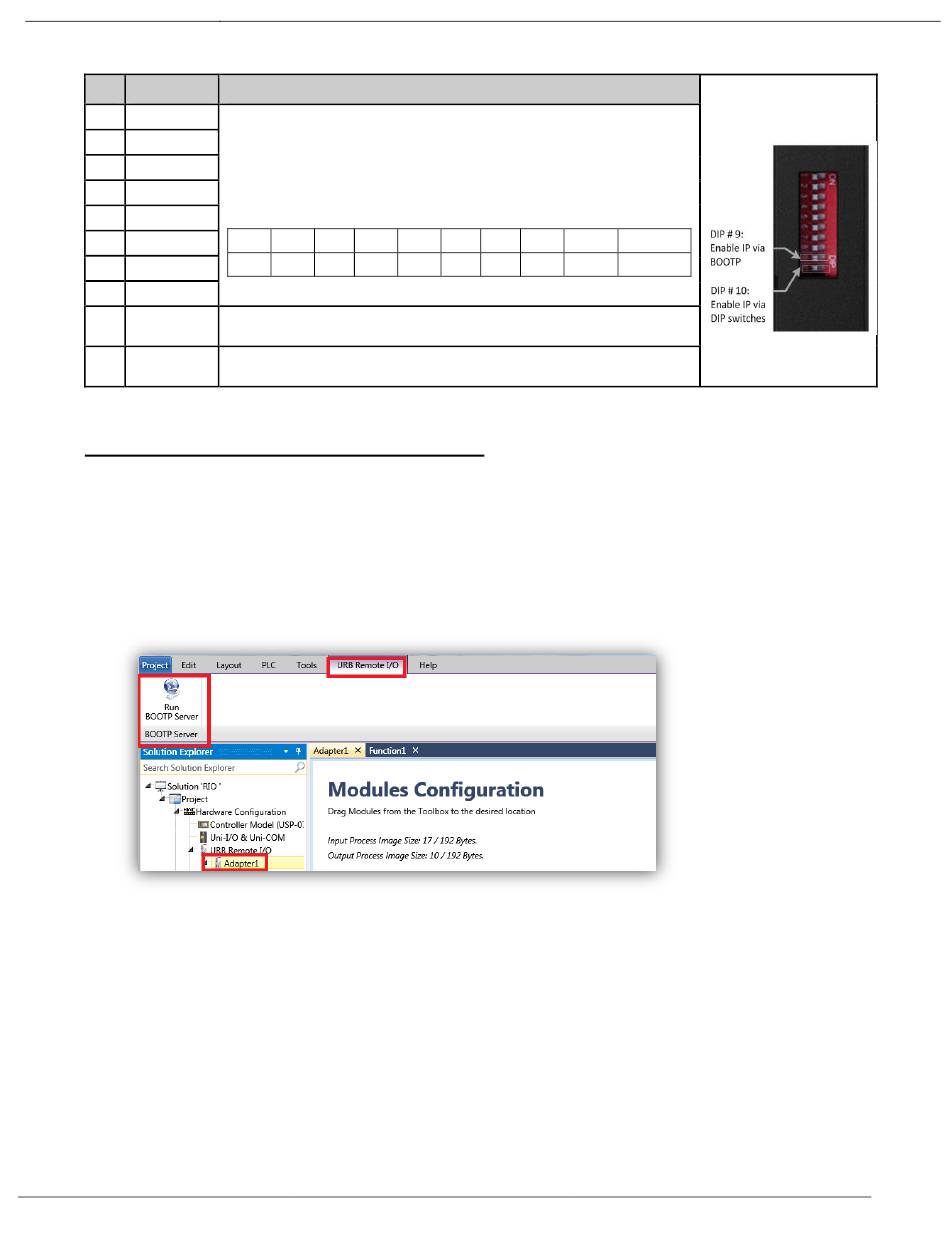

URB Adapter DIP Switches
# Role
1 IP bit#0
2 IP bit#1
3 IP bit#2
4 IP bit#3
5 IP bit#4
6 IP bit#5
7 IP bit#6
8 IP bit#7
9 DHCP /
BOOTP
10 Use DIP IP
Value

Configuring IP using Unitronics BOOTP Server

Before you can set the IP address of the Remote IO adaptor via Unitronics BOOTP Server, you must raise DIP #9
(check that #10 is down)
1. Power OFF the URB adapter.
2. Raise DIP switch #9 to enable DHCP / BOOTP.
3. In UniLogic, in the Solution Explorer, select the adapter; the ribbon will open the tab URB Remote I/O.
4. On the ribbon, click on Run BOOTP Server to open the utility.
5. Click Start BootP in the Unitronics BOOTP Server; the upper section displays Ethernet devices that
are in the network.
Unitronics
Lowest IP Address octet when
Switch #10=ON (raised)
Example: XXX.XXX.XXX.IP
[XXX.XXX.XXX represents the last configured network address]
Example for full bitmap: XXX.XXX.XXX.100
Bit0 Bit1 Bit2 Bit3 Bit4
OFF OFF ON OFF OFF
Enable DHCP / BOOTP
Enable IP Address set by DIP Switches
Description
Bit5 Bit6 Bit7 DHCP
ON ON OFF OFF
USE IP
ON
