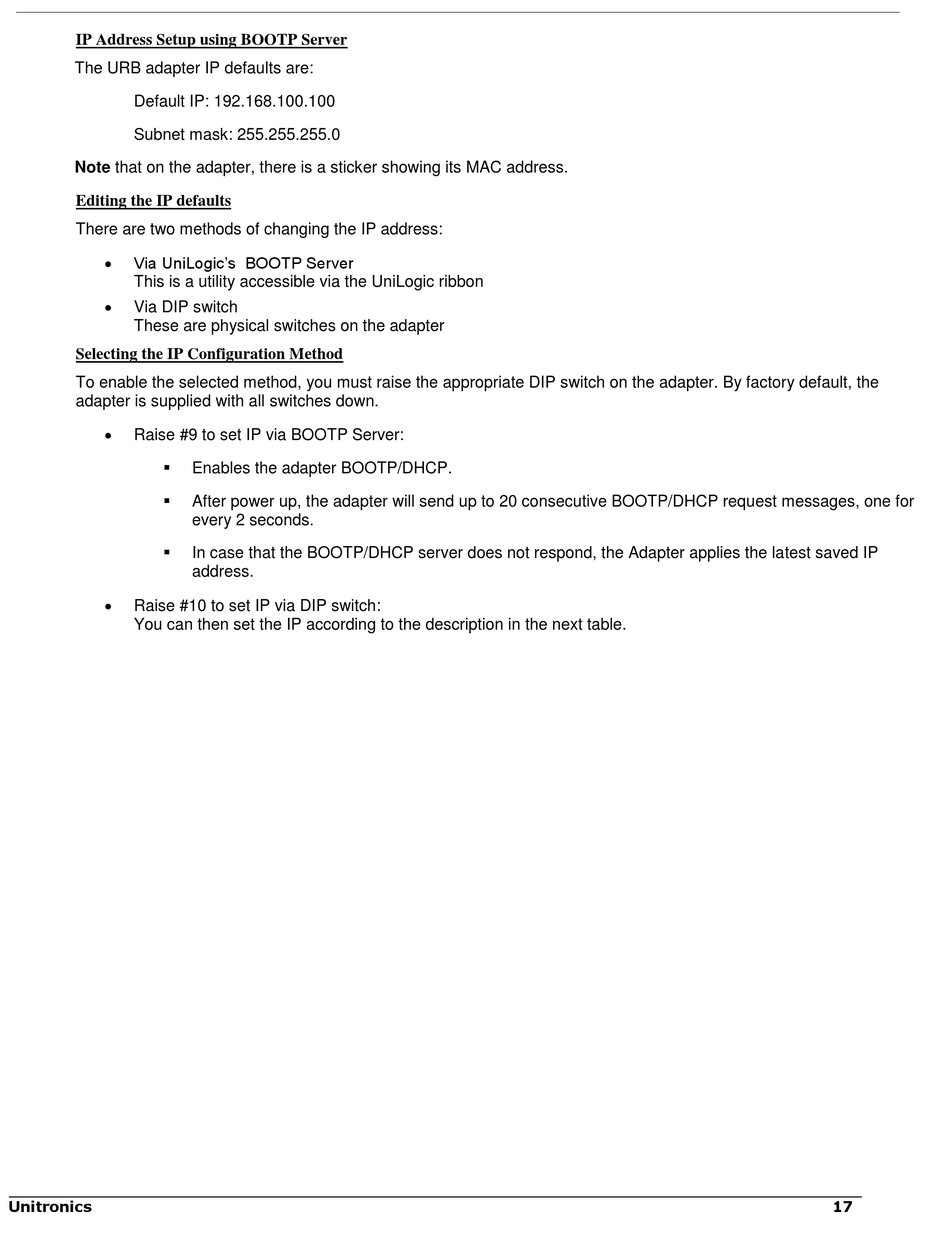

IP Address Setup using BOOTP Server

The URB adapter IP defaults are:
Default IP: 192.168.100.100
Subnet mask: 255.255.255.0
Note that on the adapter, there is a sticker showing its MAC address.

Editing the IP defaults

There are two methods of changing the IP address:

Via UniLogic's BOOTP Server
This is a utility accessible via the UniLogic ribbon

Via DIP switch
These are physical switches on the adapter

Selecting the IP Configuration Method

To enable the selected method, you must raise the appropriate DIP switch on the adapter. By factory default, the
adapter is supplied with all switches down.

Raise #9 to set IP via BOOTP Server:




Raise #10 to set IP via DIP switch:
You can then set the IP according to the description in the next table.
Unitronics
Enables the adapter BOOTP/DHCP.
After power up, the adapter will send up to 20 consecutive BOOTP/DHCP request messages, one for
every 2 seconds.
In case that the BOOTP/DHCP server does not respond, the Adapter applies the latest saved IP
address.
