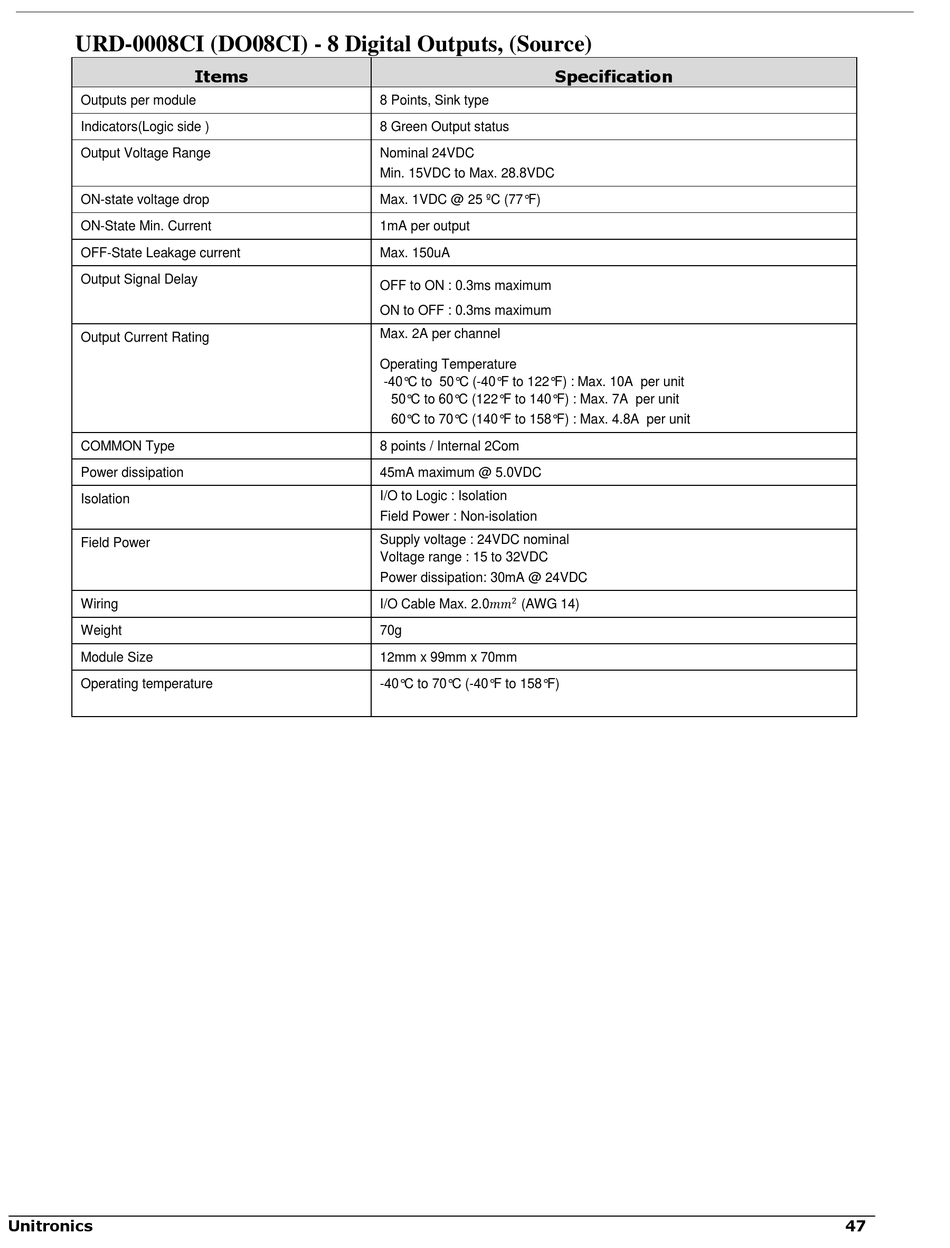

URD-0008CI (DO08CI) - 8 Digital Outputs, (Source)

Outputs per module
Indicators(Logic side )
Output Voltage Range
ON-state voltage drop
ON-State Min. Current
OFF-State Leakage current
Output Signal Delay
Output Current Rating
COMMON Type
Power dissipation
Isolation
Field Power
Wiring
Weight
Module Size
Operating temperature
Unitronics
Items Specification
8 Points, Sink type
8 Green Output status
Nominal 24VDC
Min. 15VDC to Max. 28.8VDC
Max. 1VDC @ 25 ºC (77°F)
1mA per output
Max. 150uA
OFF to ON : 0.3ms maximum
ON to OFF : 0.3ms maximum
Max. 2A per channel
Operating Temperature
-40°C to 50°C (-40°F to 122°F) : Max. 10A per unit
50°C to 60°C (122°F to 140°F) : Max. 7A per unit
60°C to 70°C (140°F to 158°F) : Max. 4.8A per unit
8 points / Internal 2Com
45mA maximum @ 5.0VDC
I/O to Logic : Isolation
Field Power : Non-isolation
Supply voltage : 24VDC nominal
Voltage range : 15 to 32VDC
Power dissipation: 30mA @ 24VDC
2
I/O Cable Max. 2.0���� (AWG 14)
70g
12mm x 99mm x 70mm
-40°C to 70°C (-40°F to 158°F)
