Wiring Diagram - Unitronics Unistream URD-0800 User Manual

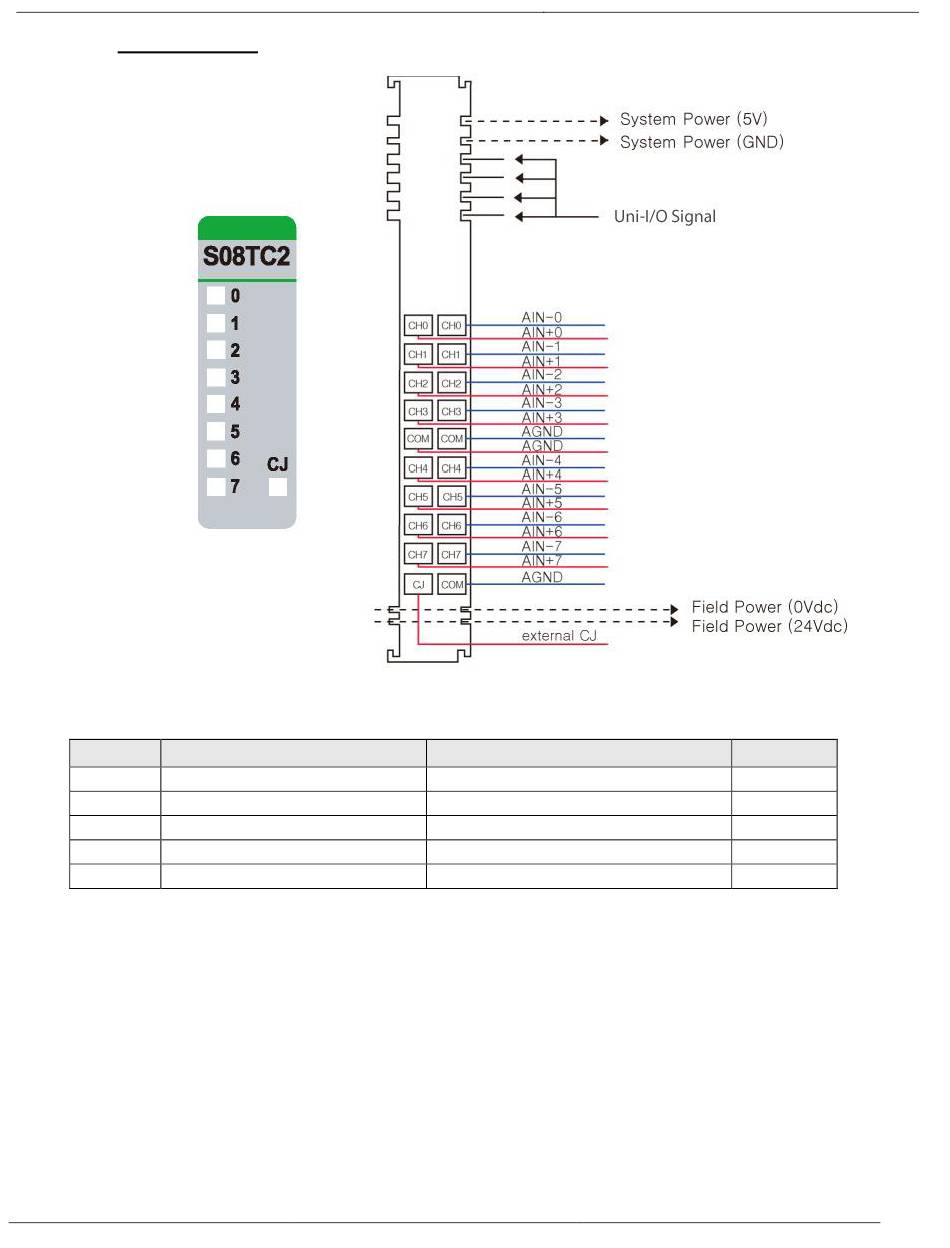

1. Wiring Diagram

Pin No.
0 TC 0+
2 TC 1+
4 TC 2+
6 TC 3+
8 CJ
Unitronics
Signal Description Signal Description
TC 0-
TC 1-
TC 2-
TC 3-
AGND
Pin No.
1
3
5
7
9
