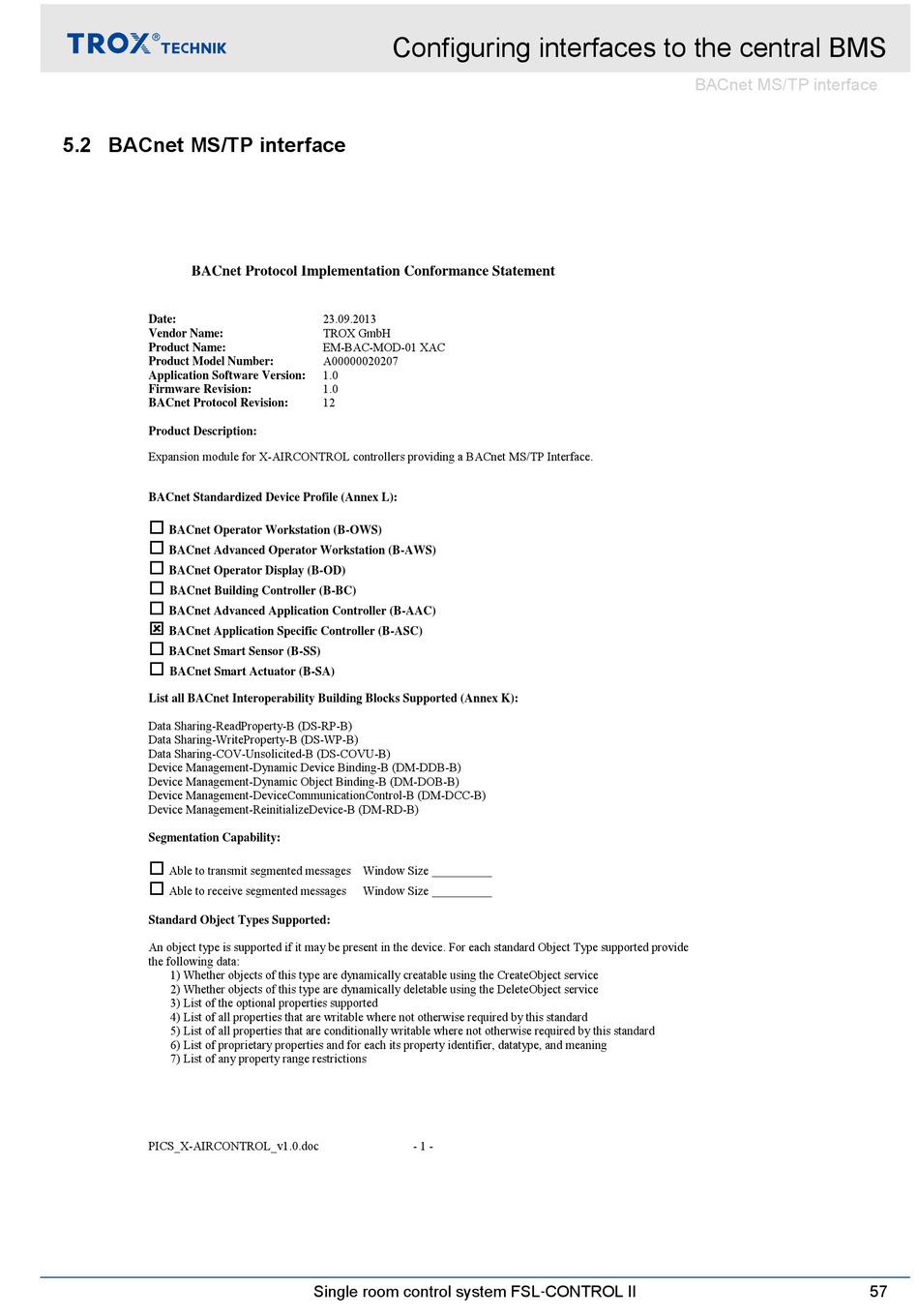

5.2 BACnet MS/TP interface

BACnet Protocol Implementation Conformance Statement
Date:
Vendor Name:
Product Name:
Product Model Number:
Application Software Version:
Firmware Revision:
BACnet Protocol Revision:
Product Description:
Expansion module for X-AIRCONTROL controllers providing a BACnet MS/TP Interface.
BACnet Standardized Device Profile (Annex L):

BACnet Operator Workstation (B-OWS)

BACnet Advanced Operator Workstation (B-AWS)

BACnet Operator Display (B-OD)

BACnet Building Controller (B-BC)

BACnet Advanced Application Controller (B-AAC)

BACnet Application Specific Controller (B-ASC)

BACnet Smart Sensor (B-SS)

BACnet Smart Actuator (B-SA)
List all BACnet Interoperability Building Blocks Supported (Annex K):
Data Sharing-ReadProperty-B (DS-RP-B)
Data Sharing-WriteProperty-B (DS-WP-B)
Data Sharing-COV-Unsolicited-B (DS-COVU-B)
Device Management-Dynamic Device Binding-B (DM-DDB-B)
Device Management-Dynamic Object Binding-B (DM-DOB-B)
Device Management-DeviceCommunicationControl-B (DM-DCC-B)
Device Management-ReinitializeDevice-B (DM-RD-B)
Segmentation Capability:

Able to transmit segmented messages Window Size

Able to receive segmented messages
Standard Object Types Supported:
An object type is supported if it may be present in the device. For each standard Object Type supported provide
the following data:
1) Whether objects of this type are dynamically creatable using the CreateObject service
2) Whether objects of this type are dynamically deletable using the DeleteObject service
3) List of the optional properties supported
4) List of all properties that are writable where not otherwise required by this standard
5) List of all properties that are conditionally writable where not otherwise required by this standard
6) List of proprietary properties and for each its property identifier, datatype, and meaning
7) List of any property range restrictions
PICS_X-AIRCONTROL_v1.0.doc
Configuring interfaces to the central BMS
23.09.2013
TROX GmbH
EM-BAC-MOD-01 XAC
A00000020207
1.0
1.0
12
Window Size
- 1 -
