Control panel settings

Digital control panel

4.2 Digital control panel

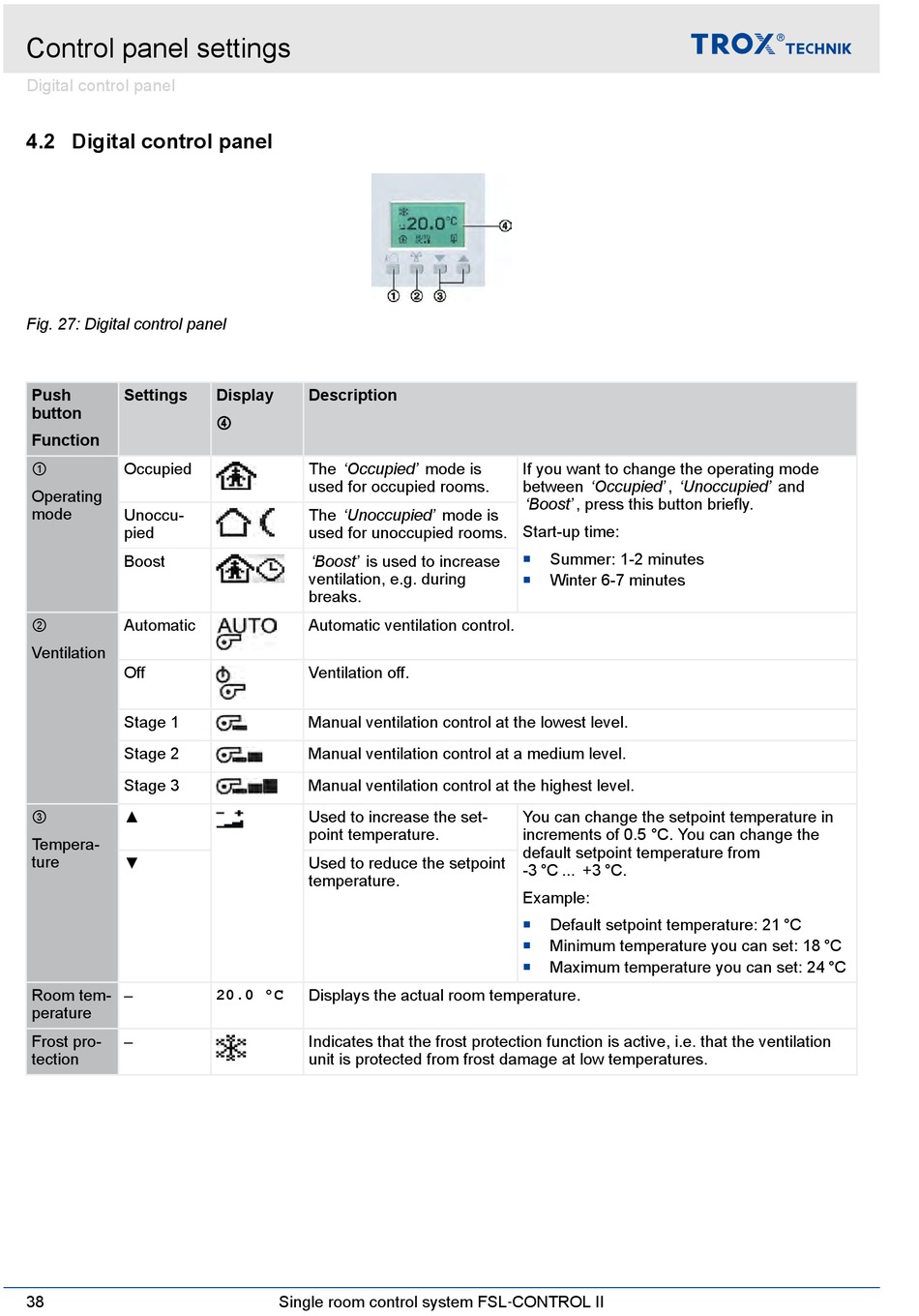

Fig. 27: Digital control panel
Push Settings
button
Function
①
Occupied
Operating
mode
Unoccu-
pied
Boost
②
Automatic
Ventilation
Off
Stage 1
Stage 2
Stage 3
③
▲
Tempera-
ture
▼
Room tem- –
perature
Frost pro- –
tection
38
Display Description
④
The 'Occupied' mode is
used for occupied rooms.
The 'Unoccupied' mode is
used for unoccupied rooms.
'Boost' is used to increase
ventilation, e.g. during
breaks.
Automatic ventilation control.
Ventilation off.
Manual ventilation control at the lowest level.
Manual ventilation control at a medium level.
Manual ventilation control at the highest level.
Used to increase the set-
point temperature.
Used to reduce the setpoint
temperature.
20.0 °C Displays the actual room temperature.
Indicates that the frost protection function is active, i.e. that the ventilation
unit is protected from frost damage at low temperatures.
Single room control system FSL‑CONTROL II
If you want to change the operating mode
between 'Occupied' , 'Unoccupied' and
'Boost' , press this button briefly.
Start-up time:
Summer: 1-2 minutes

Winter 6-7 minutes

You can change the setpoint temperature in
increments of 0.5 °C. You can change the
default setpoint temperature from
-3 °C ... +3 °C.
Example:
Default setpoint temperature: 21 °C

Minimum temperature you can set: 18 °C

Maximum temperature you can set: 24 °C

