2.1.2 Integration with a central BMS

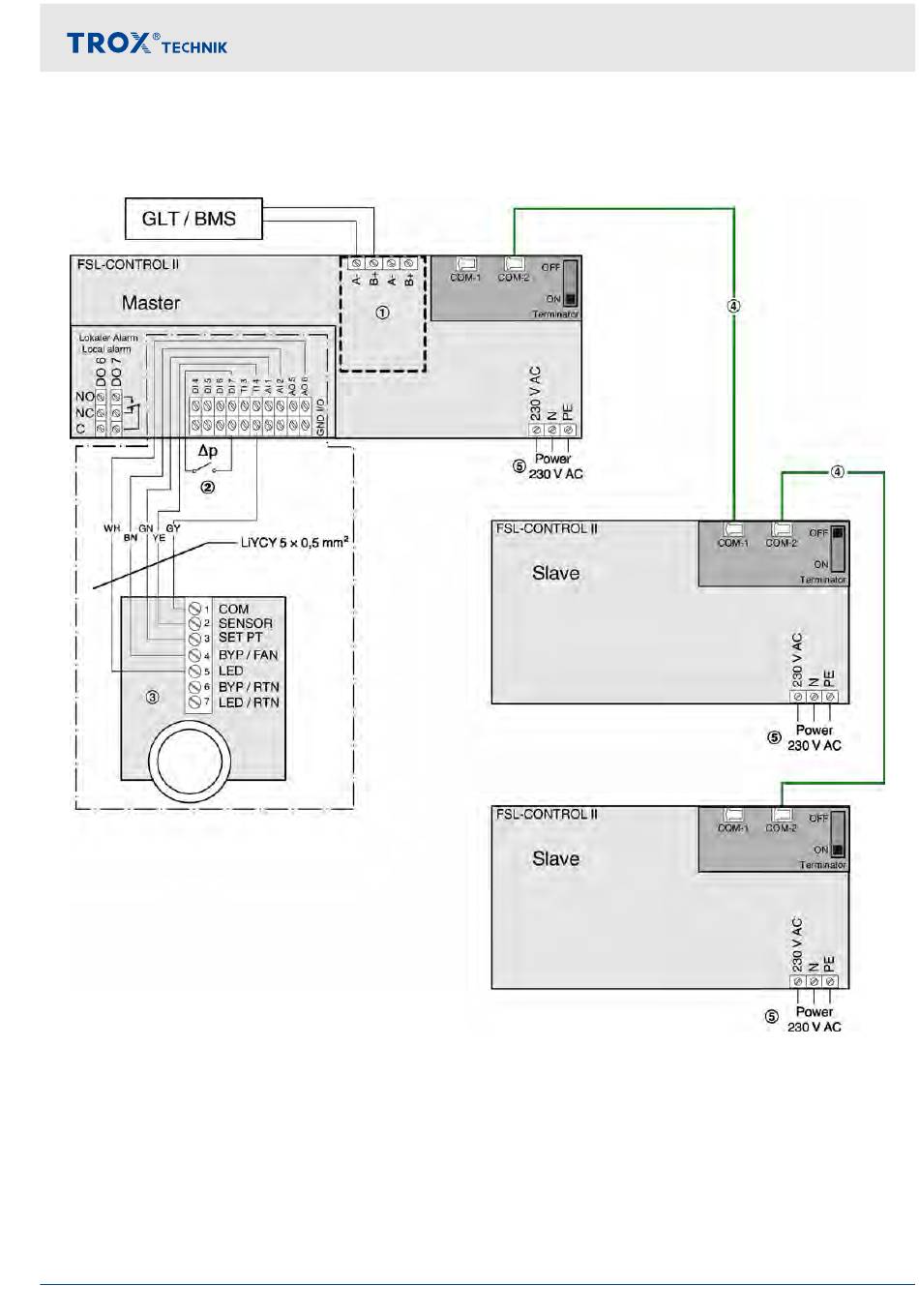

Wiring example for three interconnected FSL-CONTROL II controllers in a control zone
Fig. 5: Wiring diagram: Interconnected FSL
①
LonWorks (FTT10) interface or BACnet MS/TP or
Modbus RTU interface (optional)
②
Outdoor air filter differential pressure monitoring,
unit variants *-HE, *-HV
③
Analogue control panel with or without selector
switch (a digital control panel can be used only for
stand-alone operation of the ventilation unit)
‑ CONTROL II controllers
④
⑤
Ä 13
Single room control system FSL‑CONTROL II
Making electrical connections
Wiring > Integration with a central BMS
Patch cable (by others, at least cat. 5)
Connecting cable 3 × 0.75 mm² (L, N, PE)
