QUICK START GUIDE
TKM CONTROL

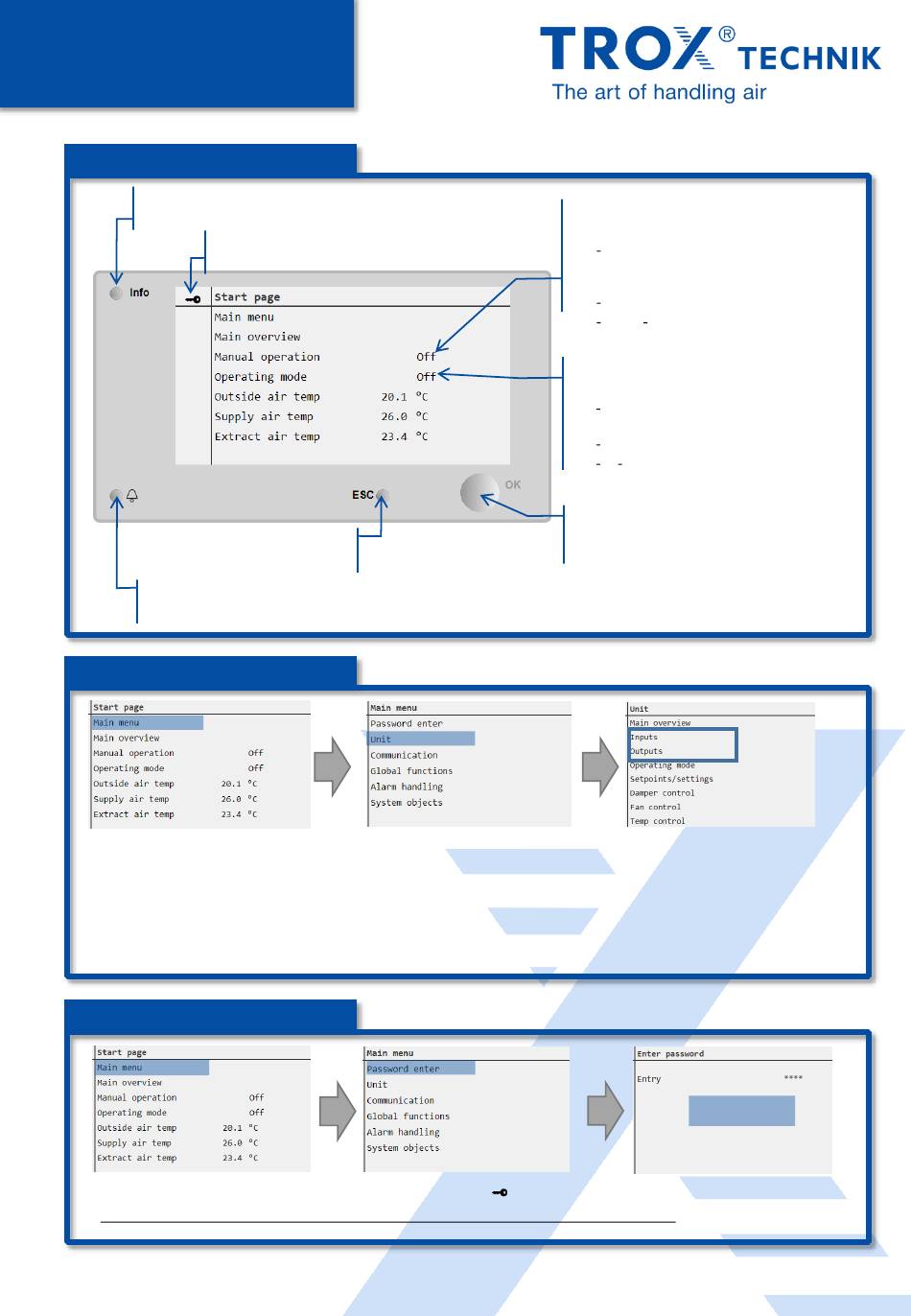

1 – General Overview
Information button [Info]
When pressed, turns back to Main menu
It goes back in the menus when
Alarm button
It blinks red when there is an active alarm (see chapter <6 – Alarms> for more information)
2 – Reading working values
Inputs
Here we can read temperature, humidity and flow values.
Outputs
Here we can read the fan speed, the aperture signals of the cooling and/or heating coils, state of recovery wheel,
dampers, etc.
* Depending on the configuration of each AHU, all values may not be available.
3 – Entering the password
When the password has been entered, you will see the key icon [
The password is mandatory to change configuration values, setpoints and acknowledge alarms.
All rights reserved © TROX ESPAÑA, S.A.
Password entered
It shows a key icon when password is entered
Escape button [ESC]
is pressed
Manual Operation
Here is set the manual ON/OFF.
[Auto] The unit starts or stops accordingly
to what the external BMS or schedule
indicates.
[Off] The unit manually stops.
[Stage1] The unit manually starts.
Operating Mode
Shows the state in which the unit is.
[Off] The unit has been normally stopped
or due to an alarm.
[Startup] The unit is starting.
[On] The unit has been started
Selection knob
When turned on, it changes the selection
or values.
When pressed in, it confirms the values.
] in the upper left corner of the start page.
1000
