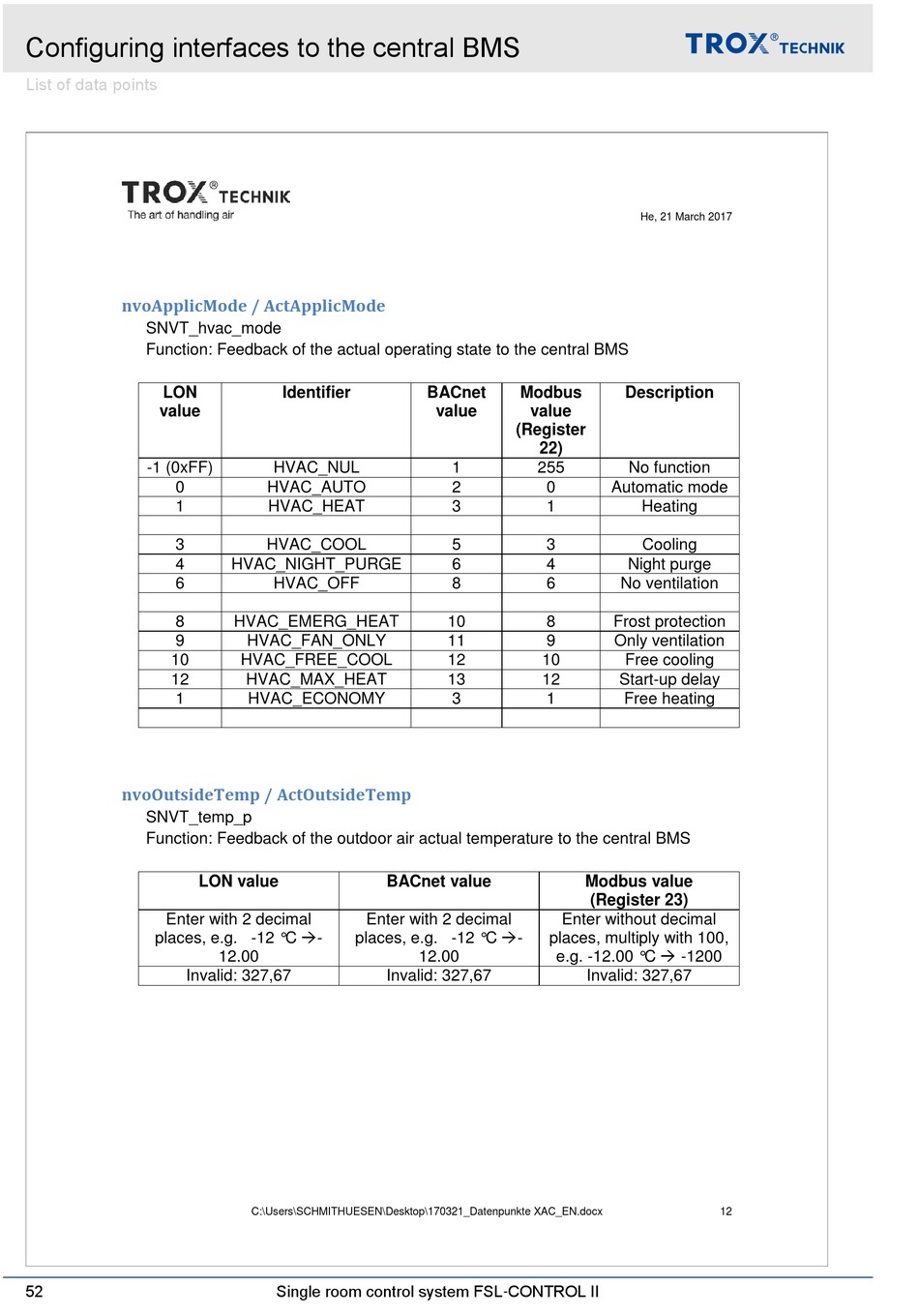

Configuring interfaces to the central BMS
List of data points
nvoApplicMode / ActApplicMode
SNVT_hvac_mode
Function: Feedback of the actual operating state to the central BMS
LON
value
-1 (0xFF)
0
1
3
4
6
8
9
10
12
1
nvoOutsideTemp / ActOutsideTemp
SNVT_temp_p
Function: Feedback of the outdoor air actual temperature to the central BMS
Enter with 2 decimal
places, e.g. -12 °C -
Invalid: 327,67
