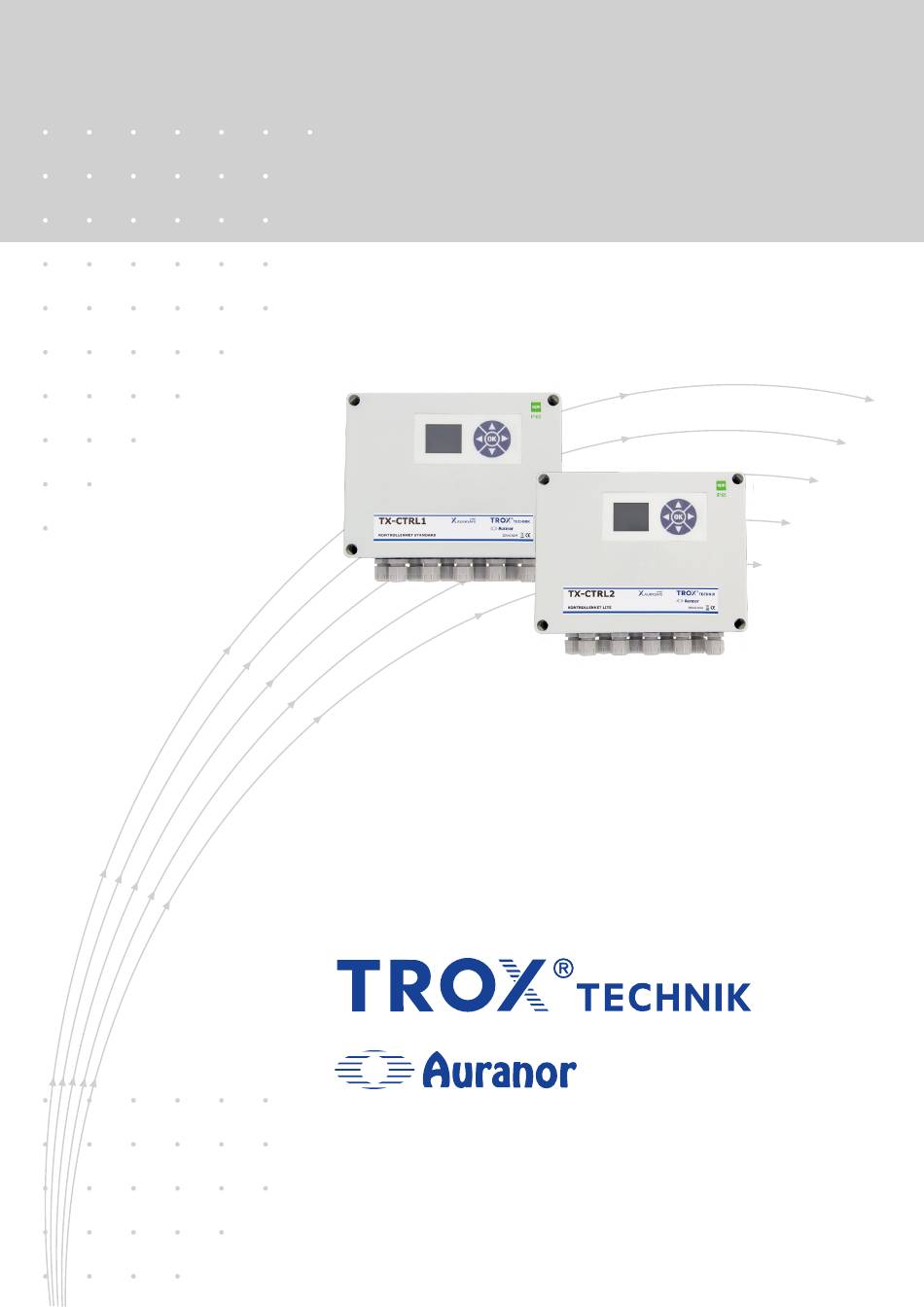

AURASAFE mini
LØV-R
Monitoring and control of fire
dampers
• Complete control system for fire dampers
• Monitors up to 100 fire dampers
• Digital error signal
• Connection to BMS by Modbus
TROX Auranor Norge AS
Auranorvegen 6
NO-2770 Jaren
GB0351
02.22
Phone: +47 61 31 35 00
E-mail: firmapost@auranor.no
www.trox.no
Advertisement
Related Manuals for Trox Technik TX-CRTL1
Summary of Contents for Trox Technik TX-CRTL1
- Page 1 GB0351 02.22 AURASAFE mini LØV-R Monitoring and control of fire dampers • Complete control system for fire dampers • Monitors up to 100 fire dampers • Digital error signal • Connection to BMS by Modbus TROX Auranor Norge AS Phone: +47 61 31 35 00 Auranorvegen 6 E-mail: firmapost@auranor.no NO-2770 Jaren...
-
Page 2: Installation
AURASAFE mini AuraSafe Mini 09.02.21 Order code: APPLICATION ORDER CODE, AURASAFE mini AURASAFE mini is a control- and monitoringsystem for firedampers. It can monitor and control up to 100 fire dampers, by combining the Aurasafe Mini - control unit with booster modules. The system is suitable for small and medium-sized facilities where there is no need for multiple fire Product: scenarios to be taken into account. - Page 3 AURASAFE mini Controller By using booster modules, AURASAFE Mini can control up to 100 dampers 230V Total 12 pcs 230V Total 12 pcs 230V Total 12 pcs Total 100 pcs fire dampers Figure 2, When controlling larger systems, the Booster module is used. Each module can communicate and provide 24V to 12 dampers. Control panel and booster modules must have a 230V supply.
-
Page 4: Wiring Terminals
TX-CTRL1 AURASAFE mini Control Unit Standard for 12 firedampers TX-CTRL1 SPECIFICATIONS Technical data Supply 230 VAC/80 VA Bus voltage 24 VDC Bus power max. 48VA Alarm relay output 3A/250 VAC, Normal-closed(NC) Smoke ventilation relay output 3A/250 VAC, Normal-closed(NC) Service relay output 3A/250 VAC, Normal-open(NO) Ventilation relay output 3A/250 VAC, Normal-open(NO) - Page 5 TX-CTRL2 AURASAFE mini Control Unit Lite for 8 firedampers TX-CTRL2 SPECIFICATIONS Technical data Supply 230 VAC/35 VA Bus voltage 24 VDC Bus power max. 21VA Alarm relay output 3A/250 VAC, Normal-closed(NC) Smoke ventilation relay output 3A/250 VAC, Normal-closed(NC) Service relay output 3A/250 VAC, Normal-open(NO) Ventilation relay output 3A/250 VAC, Normal-open(NO)
- Page 6 TX-BO1 AURASAFE mini Boostermodule Compatible with both controll units TX-BO1 SPECIFICATIONS Technical data Supply 230 VAC/80 VA Bus voltage 24 VDC Bus power max. 48VA Dimensions 200x 190x100 mm WIRING TERMINALS 230 VAC Supply LED indicators Supply/Bus output for damper modules Extended 2-wire bus for supply and Green, on 230 VAC supply OK, Bus input OK...
-
Page 7: Manual Test
TX-BRS3 AURASAFE mini damper module for fire and smoke dampers TX-BRS2 SPECIFICATIONS Technical data Inputs 2 Digital contacts Outputs 24 VDC, max. 15 VA Addressing DIP-switch Indicator LED on the side Terminals Springclamps, max. 2,5 mm Dimensions 85x85x40 mm WIRING TERMINALS Damper input, Normal-Closed (NC) Damper input, Normal-Open (NO) Supply to damper actuator... - Page 8 TX-RKS1 AURASAFE mini damper module for smoke control dampers (ventilated system) TX-RKS1 SPECIFICATIONS Technical data Inputs 2 Digital kontakt Open: 24 VDC, max. 15 VA Outputs Closed: 24 VDC, max. 15 VA Addressing DIP-switch Indicator LED on the side Terminals Springclamps, max.
- Page 9 TX-INP1 AURASAFE mini input-module for smokedetector/fire thermostat TX-INP1 SPECIFICATIONS Technical data Inputs Monitored input for fire alarm system / smoke detector. 2K2 end resistor must be mounted. Addressing DIP-switch Indicator LED on the side Terminals Springclamps, max. 2,5 mm Dimensions 85x85x40 mm WIRING TERMINALS Fire alarm system / Smoke detector input...
- Page 10 TX-FEP1 AURASAFE mini Faultpanel TX-FEP1 SPECIFICATIONS Technical data Addressing Fixed address Fault/Alarm Indicator Yellow LED Acoustic alarm Buzzer > 50 dB(A) Terminals Springclamps, max. 2,5 mm 66x66x32 mm. Dimensions Opus66 socket m. 23 mm base WIRING TERMINALS LED indicator, yellow Button to turn off acoustic alarm 24 VDC supply/Bus input ADDRESSING...
- Page 11 TX-TEM1 AURASAFE mini PT1000 Input module TX-TEM1 SPECIFICATIONS Technical data Inputs 2 analogue inputs for PT1000 temperature sensors Addressing DIP-switch Indicator LED on the side Terminals Springclamps, max. 2,5 mm Dimensions 85x85x40 mm Temperature 0-50 ˚C WIRING TERMINALS PT1000 inputs PT1000 inputs if input is not used, 1 kohm/1% resistance must be mounted.
- Page 12 TX-DREL1 AURASAFE mini relay module 4DO TX-DREL1 SPECIFICATIONS Technical data 24 VDC +/- 10% Inputs/supply 20 mA consumption 4 NO relay-contacts Outputs 1,0A/24 VDC/AC Terminals Springclamps, max. 2,5 mm 85x85x40 mm Dimensions Temperature 0-50 ˚C WIRING TERMINALS 24 VDC input/supply With 24VDC supply connected to +/-, all 4 relay outputs are activated extra terminal set for continuation of 24 VDC supply...
