Control of ventilation units

FSL‑CONTROL II > Functional description

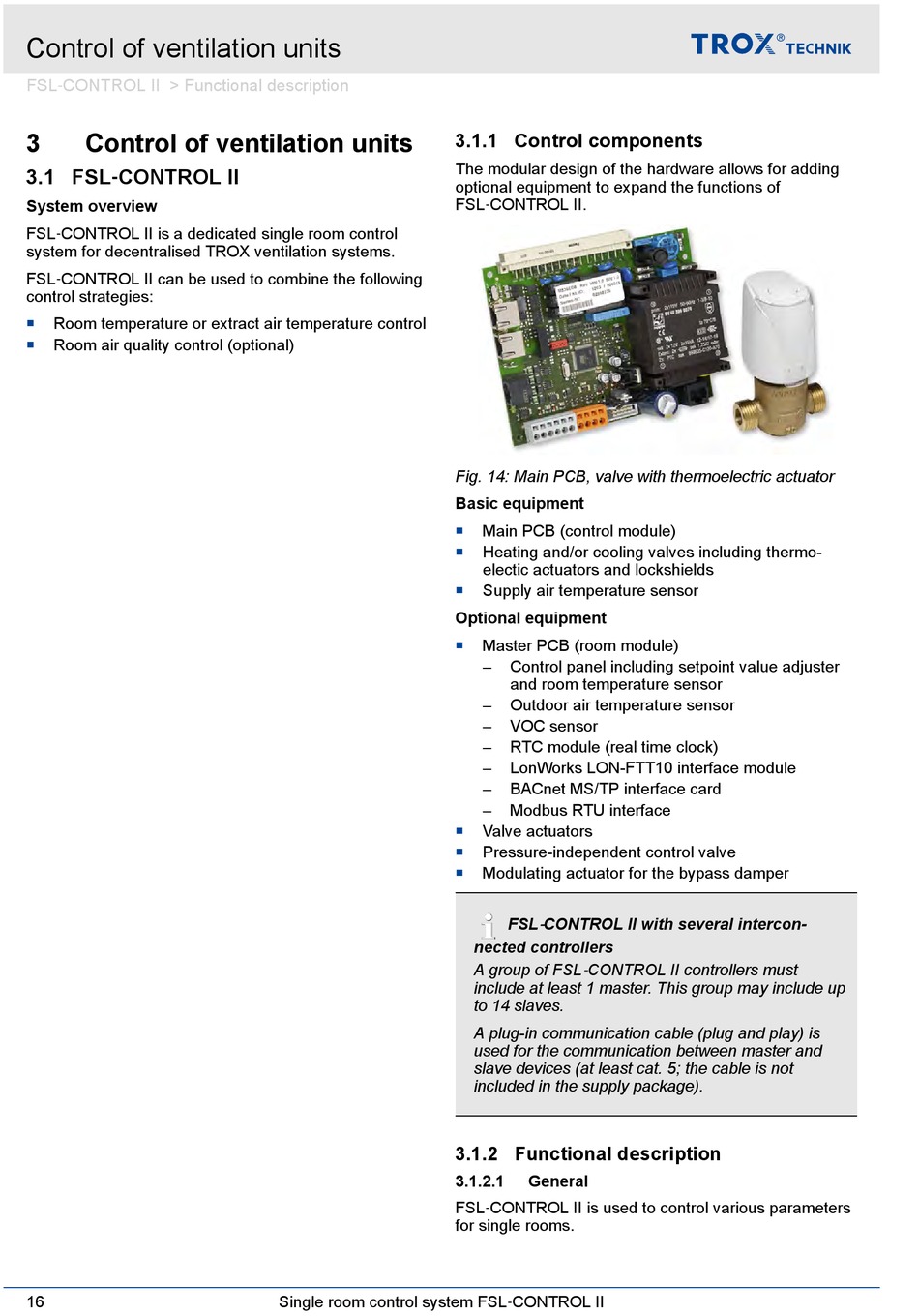

3 Control of ventilation units
3.1 FSL‑CONTROL II
System overview
FSL‑CONTROL II is a dedicated single room control
system for decentralised TROX ventilation systems.
FSL‑CONTROL II can be used to combine the following
control strategies:
Room temperature or extract air temperature control

Room air quality control (optional)

16 Single room control system FSL‑CONTROL II

3.1.1 Control components

The modular design of the hardware allows for adding
optional equipment to expand the functions of
FSL‑CONTROL II.
Fig. 14: Main PCB, valve with thermoelectric actuator
Basic equipment
Main PCB (control module)

Heating and/or cooling valves including thermo-

electic actuators and lockshields
Supply air temperature sensor

Optional equipment
Master PCB (room module)

– Control panel including setpoint value adjuster
and room temperature sensor
– Outdoor air temperature sensor
– VOC sensor
– RTC module (real time clock)
– LonWorks LON-FTT10 interface module
– BACnet MS/TP interface card
– Modbus RTU interface
Valve actuators

Pressure-independent control valve

Modulating actuator for the bypass damper

‑ CONTROL II with several intercon-
FSL
nected controllers
‑ CONTROL II controllers must
A group of FSL
include at least 1 master. This group may include up
to 14 slaves.
A plug-in communication cable (plug and play) is
used for the communication between master and
slave devices (at least cat. 5; the cable is not
included in the supply package).

3.1.2 Functional description

3.1.2.1 General
FSL‑CONTROL II is used to control various parameters
for single rooms.
