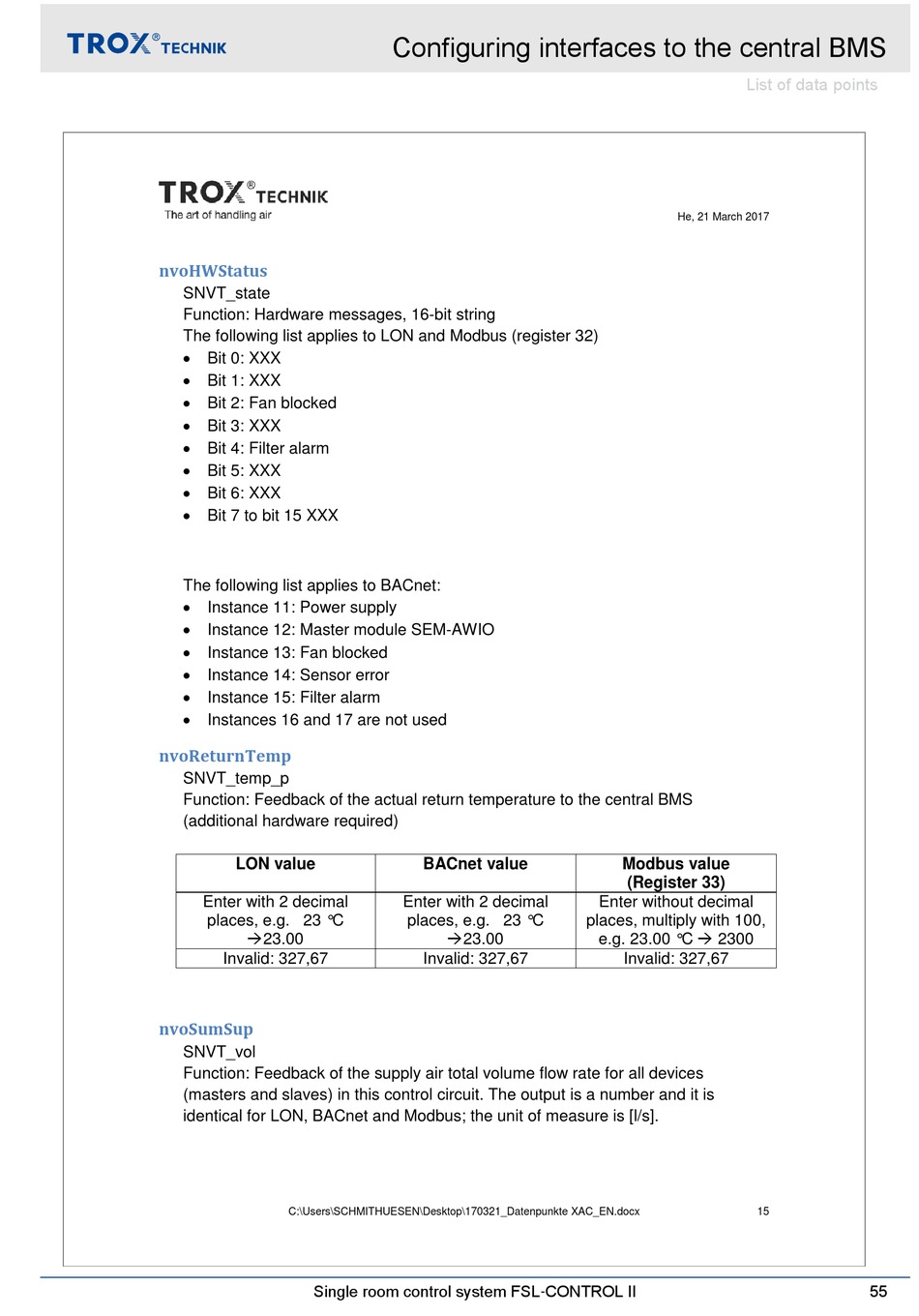

nvoHWStatus
SNVT_state
Function: Hardware messages, 16-bit string
The following list applies to LON and Modbus (register 32)
• Bit 0: XXX
• Bit 1: XXX
• Bit 2: Fan blocked
• Bit 3: XXX
• Bit 4: Filter alarm
• Bit 5: XXX
• Bit 6: XXX
• Bit 7 to bit 15 XXX
The following list applies to BACnet:
• Instance 11: Power supply
• Instance 12: Master module SEM-AWIO
• Instance 13: Fan blocked
• Instance 14: Sensor error
• Instance 15: Filter alarm
• Instances 16 and 17 are not used
nvoReturnTemp
SNVT_temp_p
Function: Feedback of the actual return temperature to the central BMS
(additional hardware required)
LON value
Enter with 2 decimal
places, e.g. 23 °C
23.00
Invalid: 327,67
nvoSumSup
SNVT_vol
Function: Feedback of the supply air total volume flow rate for all devices
(masters and slaves) in this control circuit. The output is a number and it is
identical for LON, BACnet and Modbus; the unit of measure is [l/s].
C:\Users\SCHMITHUESEN\Desktop\170321_Datenpunkte XAC_EN.docx
Single room control system FSL‑CONTROL II
Configuring interfaces to the central BMS
BACnet value
Enter with 2 decimal
places, e.g. 23 °C
23.00
Invalid: 327,67
List of data points
He, 21 March 2017
Modbus value
(Register 33)
Enter without decimal
places, multiply with 100,
e.g. 23.00 °C  2300
Invalid: 327,67
